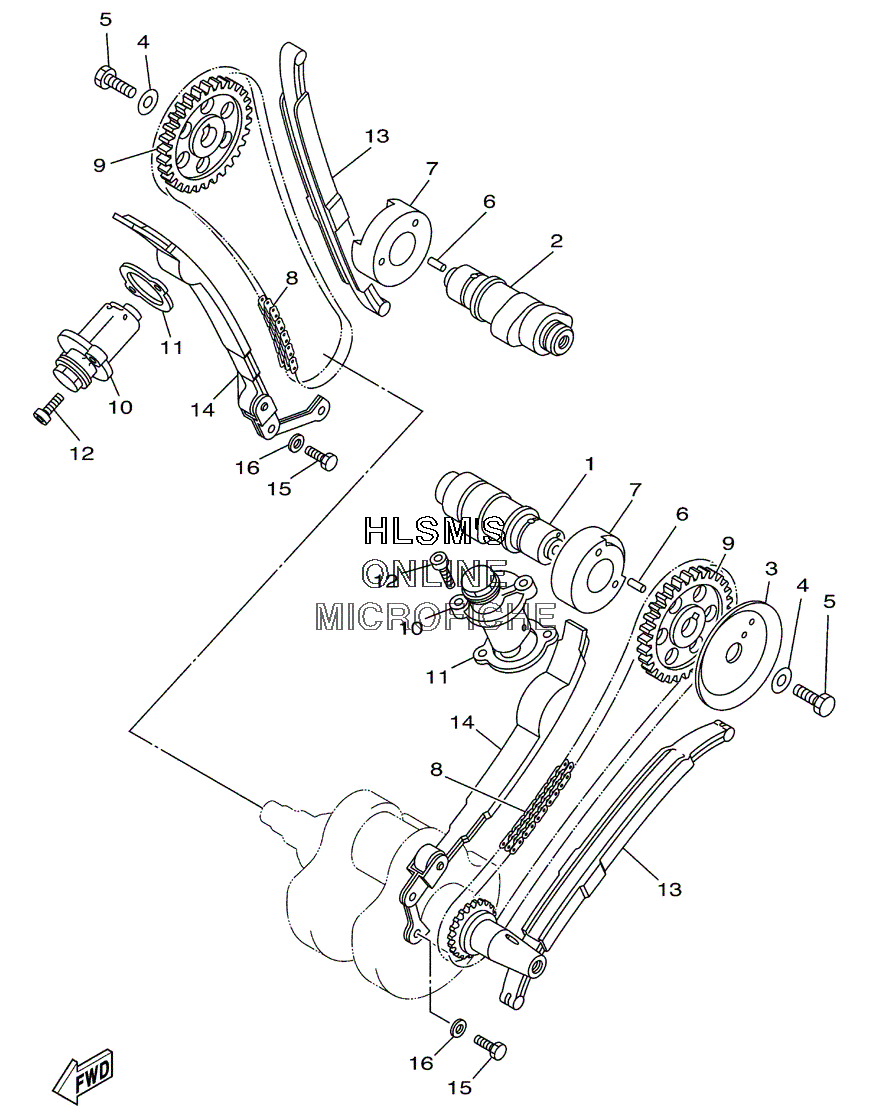

CAMSHAFT W/ CHAIN для Yamaha XVS 650 V STAR CUSTOM CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
14VR-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
24VR-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
322U-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
490201-10591-00 WASHER, PLATEWASHER, PLATE
-
590101-10303-00 BOLTBOLT
-
693605-10108-00 PIN, DOWELPIN, DOWEL
-
790380-28131-00 BUSH, SOLIDBUSH, SOLID
-
894591-41118-00 CHAINCHAIN
-
922U-12176-01-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1011H-12210-02-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
113BT-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1291314-06025-00 BOLTBOLT
-
134VR-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
1422U-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1597027-06016-00 BOLTBOLT
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
