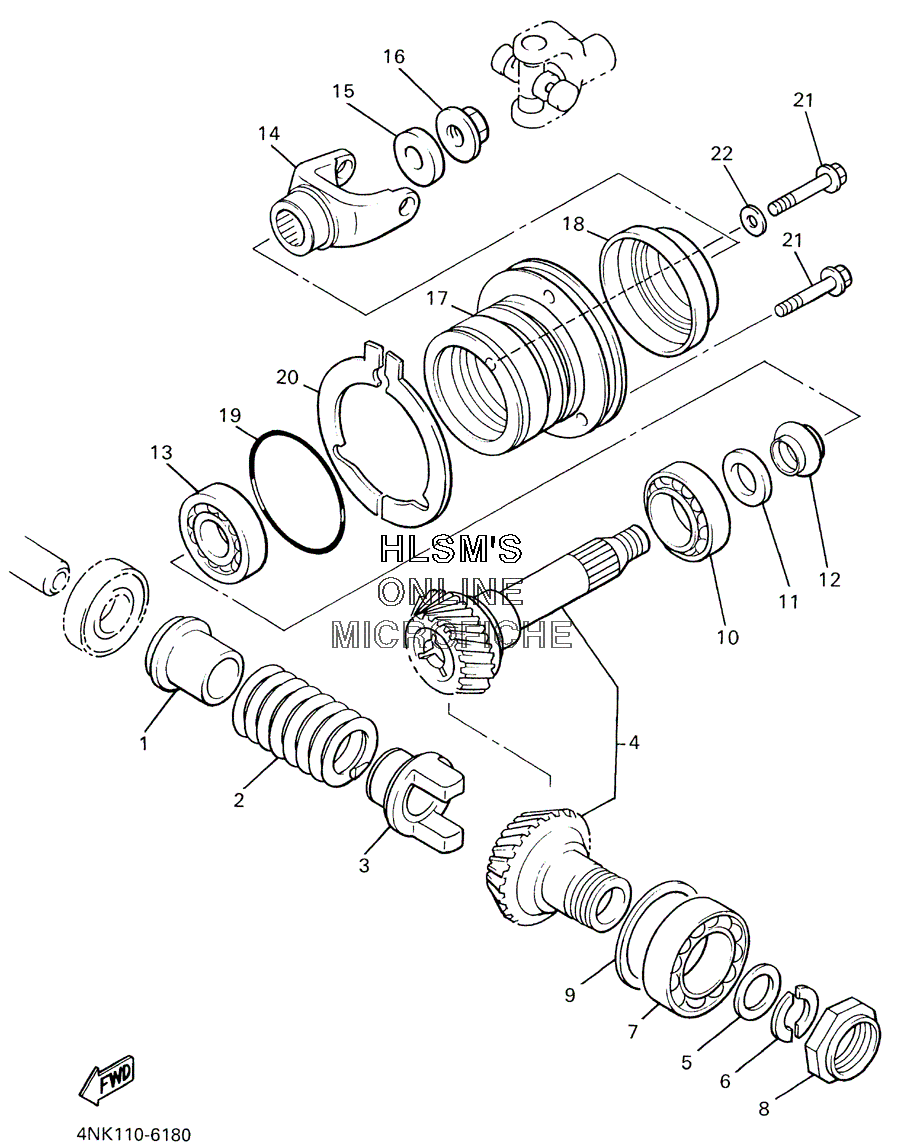

MIDDLE DRIVE GEAR для Yamaha XVZ 1300 TF ROYAL STAR VENTURE CALIFORNIA - 2003 года выпуска
![](/wa-data/public/shop/sheme/yamaha/streetbike/60ef8826-f2a0-44bf-b407-78db345f2704.gif)
-
№АртикулНазвание
-
12WE-17524-00-00 HOLDERHOLDER
-
290501-75638-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
32WE-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
426H-W1751-02-00 MIDDLE GEAR COMP.MIDDLE GEAR COMP.
-
590201-252K4-00 WASHER, PLATEWASHER, PLATE
-
690209-21281-00 WASHERWASHER
-
793306-20901-00 BEARING (B6209RSH2-C2)BEARING (B6209RSH2-C2)
-
890179-44328-00 NUTNUT
-
94X7-17531-00-15 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
94X7-17531-00-50 SHIM, PINION (0.50T) (OPT)SHIM, PINION (0.50T) (OPT)
-
94X7-17531-00-30 SHIM, PINION (0.30T) (OPT)SHIM, PINION (0.30T) (OPT)
-
1093332-00028-00 BEARINGBEARING
-
1190201-25634-00 WASHER, PLATEWASHER, PLATE
-
122H7-17571-01-00 SPACER, EXPANSIONSPACER, EXPANSION
-
1393332-00024-00 BEARINGBEARING
-
1426H-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1590201-166R6-00 WASHER, PLATEWASHER, PLATE
-
1690179-16662-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1726H-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1893101-35085-00 OIL SEALOIL SEAL
-
1993210-71360-00 O-RINGO-RING
-
203UF-17531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
203UF-17531-30-00 SHIM, PINION (0.30T) (OPT)SHIM, PINION (0.30T) (OPT)
-
203UF-17531-00-00 SHIM, PINION (0.10T) (OPT)SHIM, PINION (0.10T) (OPT)
-
203UF-17531-20-00 SHIM, PINION (0.20T) (OPT)SHIM, PINION (0.20T) (OPT)
-
203UF-17531-40-00 SHIM, PINION (0.40T) (OPT)SHIM, PINION (0.40T) (OPT)
-
203UF-17531-50-00 SHIM, PINION (0.50T) (OPT)SHIM, PINION (0.50T) (OPT)
-
2195817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2290201-08649-00 WASHER, PLATEWASHER, PLATE
