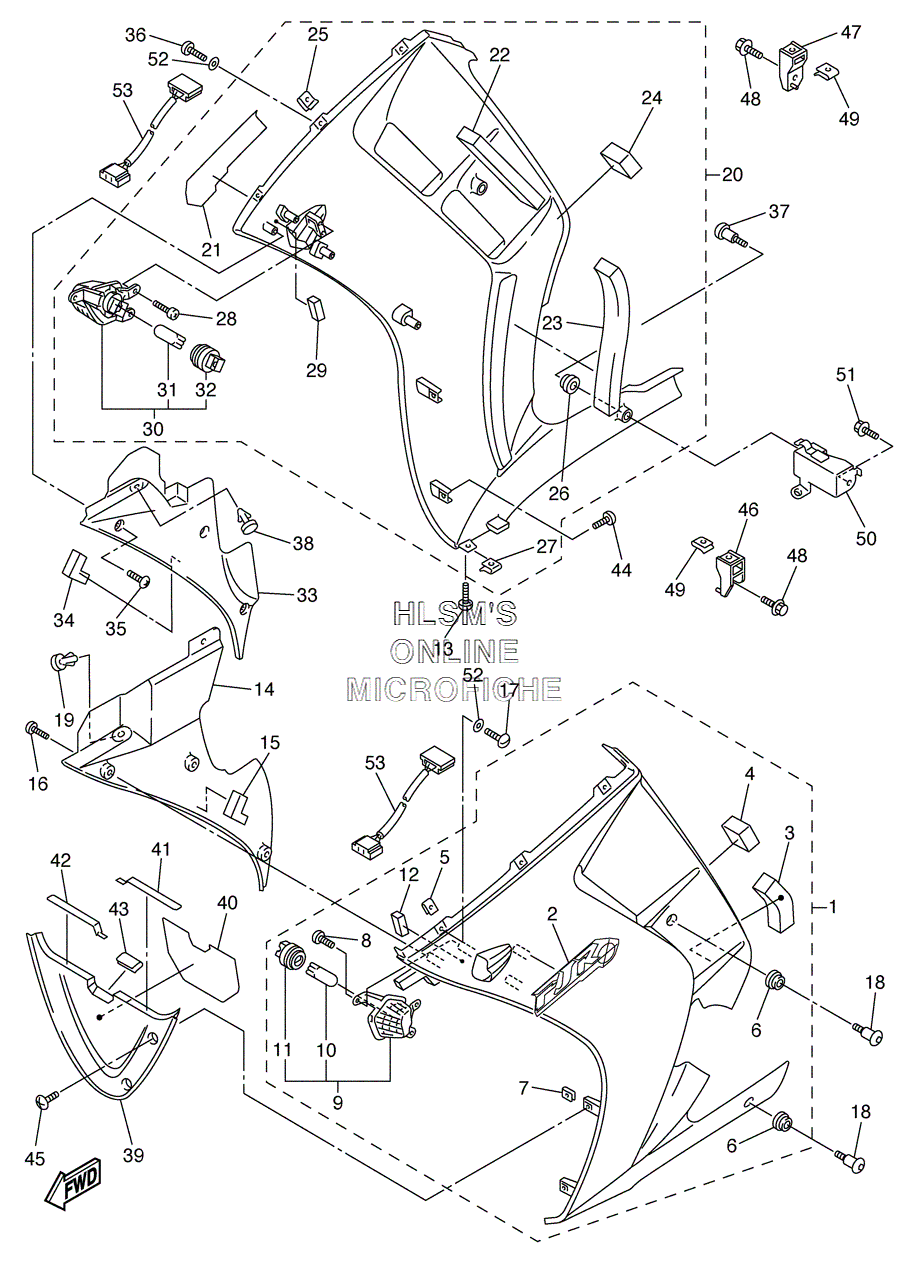

COWLING 2 для Yamaha FJR 1300 A FJR1300 ABS CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15VS-Y283J-30-P0 BODY, FRONT LOWER 1 (BLUISH SILVER (BS4)BODY, FRONT LOWER 1 (BLUISH SILVER (BS4)
-
25JW-28328-40-00 ...EMBLEM...EMBLEM
-
35VS-2834E-00-00 ...DAMPER 3...DAMPER 3
-
45JW-28371-00-00 ...DAMPER...DAMPER
-
590183-05024-00 ...NUT, SPRING...NUT, SPRING
-
690480-13398-00 ...GROMMET...GROMMET
-
790183-05024-00 ...NUT, SPRING...NUT, SPRING
-
897707-50016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
95VS-83310-00-00 ...FRONT FLASHER LIGHT ASSY. 1...FRONT FLASHER LIGHT ASSY. 1
-
105GJ-83331-00-00 ......BULB, FLASHER (12V-21/5......BULB, FLASHER (12V-21/5
-
115GJ-8331E-00-00 ......CORD ASSY.......CORD ASSY.
-
125JW-28237-00-00 ...DAMPER 3...DAMPER 3
-
1390111-05003-00 BOLTBOLT
-
145JW-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
155JW-28217-00-00 DAMPER 1DAMPER 1
-
1697707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
1790111-05003-00 BOLTBOLT
-
1890109-06037-00 BOLTBOLT
-
1990269-07076-00 RIVETRIVET
-
205VS-Y283K-30-P0 BODY, FRONT LOWER 2 (BLUISH SILVER (BS4)BODY, FRONT LOWER 2 (BLUISH SILVER (BS4)
-
215JW-28328-40-00 ...EMBLEM...EMBLEM
-
225VS-2174Y-00-00 ...DAMPER 2...DAMPER 2
-
235VS-2834F-00-00 ...DAMPER...DAMPER
-
245JW-28371-00-00 ...DAMPER...DAMPER
-
2590183-05024-00 ...NUT, SPRING...NUT, SPRING
-
2690480-13398-00 ...GROMMET...GROMMET
-
2790183-05024-00 ...NUT, SPRING...NUT, SPRING
-
2897707-50016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
295JW-28237-00-00 ...DAMPER 3...DAMPER 3
-
305VS-83320-00-00 ...FRONT FLASHER LIGHT ASSY. 2...FRONT FLASHER LIGHT ASSY. 2
-
315GJ-83331-00-00 ......BULB, FLASHER (12V-21/5......BULB, FLASHER (12V-21/5
-
325GJ-8331E-00-00 ......CORD ASSY.......CORD ASSY.
-
335JW-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
345JW-28217-00-00 DAMPER 1DAMPER 1
-
3597707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
3690111-05003-00 BOLTBOLT
-
3790109-06037-00 BOLTBOLT
-
3890269-07076-00 RIVETRIVET
-
395JW-28385-10-P3 COVER, LOWER (BLUISH SILVER (BS4)COVER, LOWER (BLUISH SILVER (BS4)
-
405JW-2848H-00-00 SEATSEAT
-
415JW-2848K-00-00 SEAT 2SEAT 2
-
425JW-2848L-00-00 SEAT 3SEAT 3
-
435JW-28345-00-00 MOLE 1MOLE 1
-
4497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4590111-05003-00 BOLTBOLT
-
465JW-2836A-00-00 BRACKET 1BRACKET 1
-
475JW-2836E-00-00 BRACKET 2BRACKET 2
-
4890119-06117-00 BOLT WITH WASHERBOLT WITH WASHER
-
4990183-05024-00 NUT, SPRINGNUT, SPRING
-
505JW-2836F-00-00 BRACKET 3BRACKET 3
-
5195807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5290202-05180-00 WASHER, PLATEWASHER, PLATE
-
535VS-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
