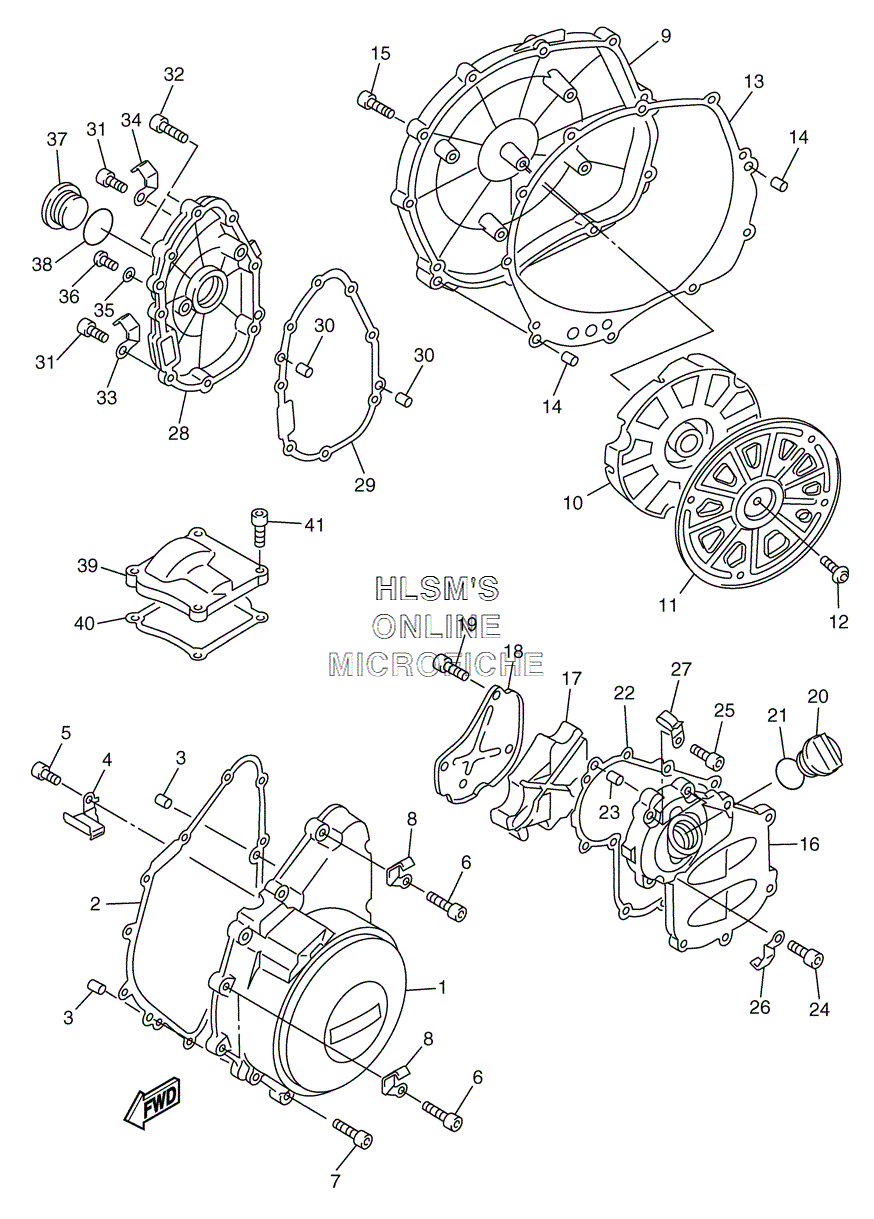

CRANKCASE COVER для Yamaha FJR 1300 FJR1300 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15JW-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25JW-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
45JW-15484-00-00 CLAMP 2CLAMP 2
-
598507-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
691314-06025-00 BOLTBOLT
-
791314-06020-00 BOLTBOLT
-
890462-08225-00 CLAMPCLAMP
-
95JW-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
105JW-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
115JW-15492-00-00 COVERCOVER
-
1290149-06304-00 SCREWSCREW
-
135JW-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1493608-21002-00 PIN, DOWELPIN, DOWEL
-
1590109-06031-00 BOLTBOLT
-
165JW-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
175JW-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
185JW-15414-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
1990110-06018-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
203F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2193210-27194-00 O-RINGO-RING
-
225JW-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2399530-08012-00 PIN, DOWELPIN, DOWEL
-
2492014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2590111-06028-00 BOLTBOLT
-
2690462-08225-00 CLAMPCLAMP
-
2790465-08122-00 CLAMPCLAMP
-
285JW-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
295JW-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
3099530-08012-00 PIN, DOWELPIN, DOWEL
-
3191314-06020-00 BOLTBOLT
-
3291314-06025-00 BOLTBOLT
-
3390462-08225-00 CLAMPCLAMP
-
3490465-08031-00 CLAMPCLAMP
-
3590430-08143-00 GASKETGASKET
-
3692014-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3790340-32116-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
3893210-32172-00 O-RINGO-RING
-
395JW-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
405JW-15463-00-00 GASKET, CARBURETOR COVER 2GASKET, CARBURETOR COVER 2
-
4191314-06020-00 BOLTBOLT
