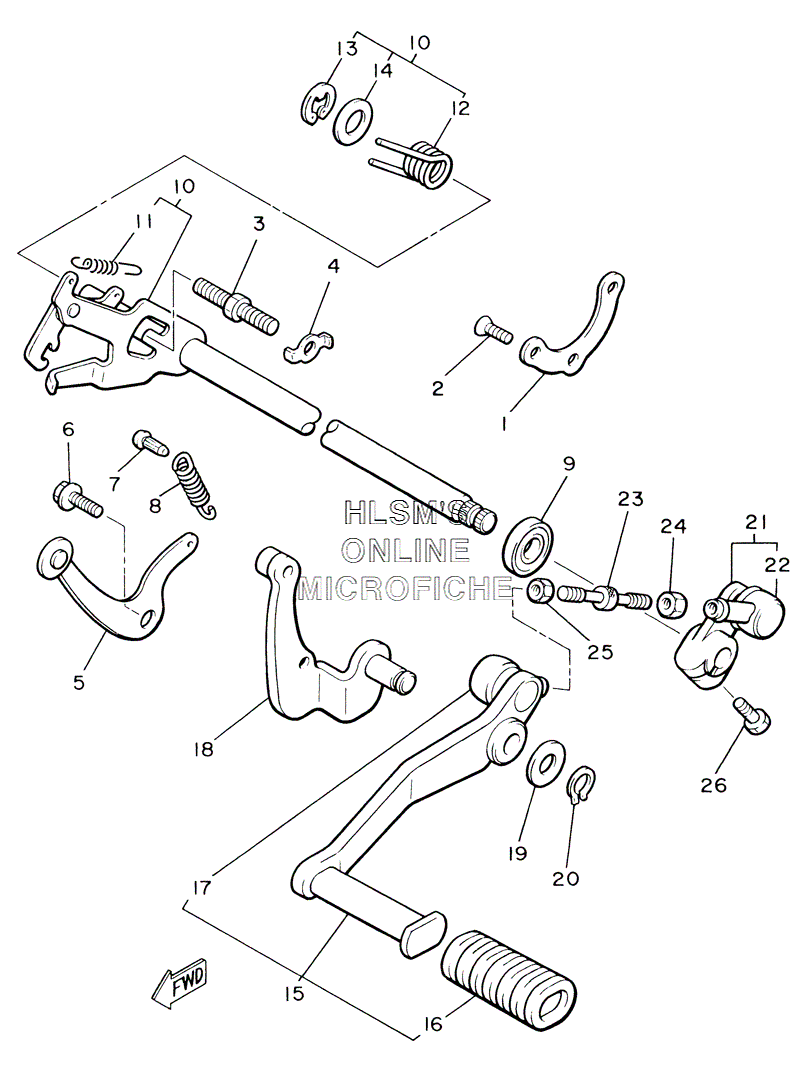

SHIFT SHAFT для Yamaha VMX 1200 V-MAX - 2004 года выпуска
-
№АртикулНазвание
-
126H-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
290151-06041-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
390109-08441-00 BOLTBOLT
-
490215-08115-00 WASHER, LOCKWASHER, LOCK
-
526H-18140-02-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
690109-063F8-00 BOLTBOLT
-
7132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
890506-13312-00 SPRING, TENSIONSPRING, TENSION
-
993102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
101FK-18101-01-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
1190506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
1290508-32588-00 ...SPRING, TORSION...SPRING, TORSION
-
1399001-10600-00 ...CIRCLIP...CIRCLIP
-
1490201-127E1-00 ...WASHER, PLATE...WASHER, PLATE
-
151FK-18110-00-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
1622N-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
172H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
181FK-18128-00-00 BRACKETBRACKET
-
1990201-12688-00 WASHER, PLATEWASHER, PLATE
-
2099009-12400-00 CIRCLIPCIRCLIP
-
211FK-18152-00-00 LEVER, SHIFT 4LEVER, SHIFT 4
-
222H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
2342X-18115-00-00 ROD, SHIFTROD, SHIFT
-
2495304-06700-00 NUTNUT
-
2590170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2697027-06020-00 BOLTBOLT
