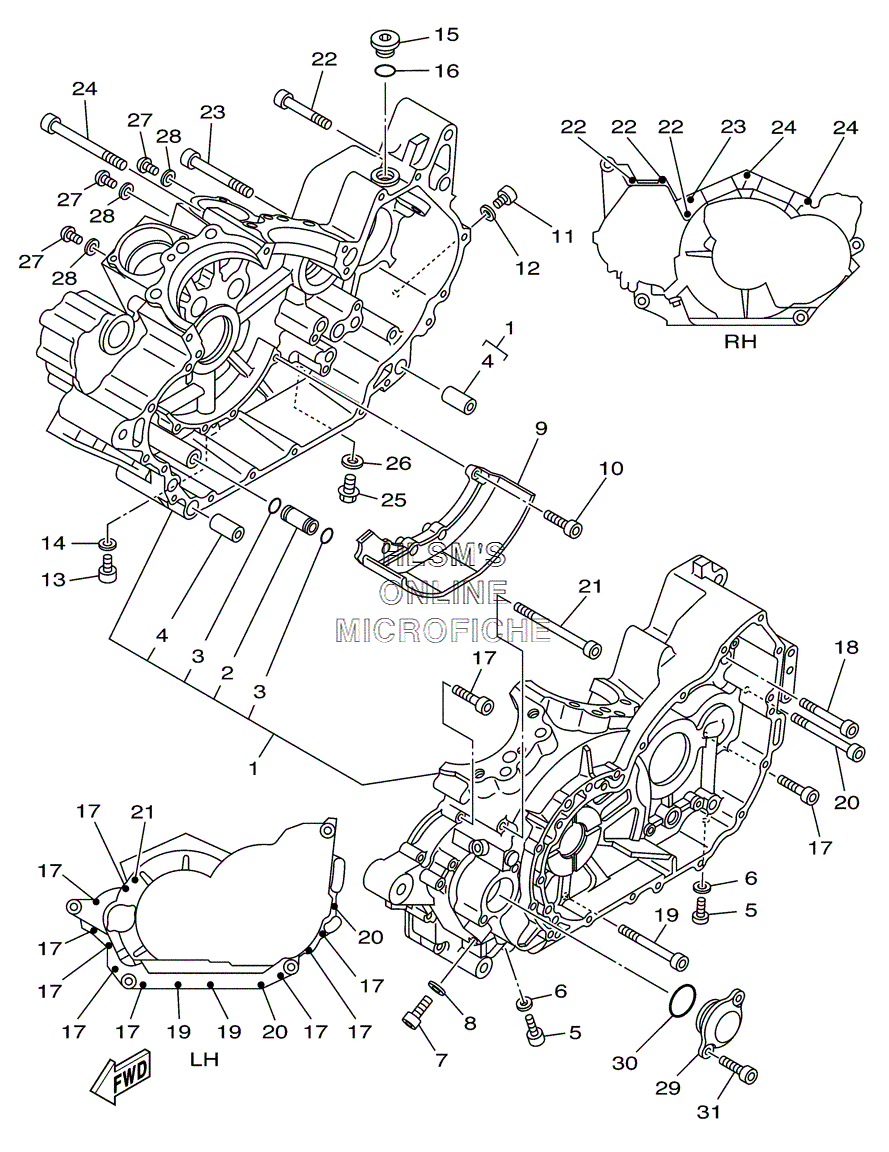

CRANKCASE для Yamaha XV 1700 A ROAD STAR - 2004 года выпуска
-
№АртикулНазвание
-
15PX-15100-01-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
24WM-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
393210-10001-00 ...O-RING...O-RING
-
499530-14016-00 ...PIN, DOWEL...PIN, DOWEL
-
590110-05013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690430-05126-00 GASKETGASKET
-
790110-08014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890430-08119-00 GASKETGASKET
-
94WM-15123-00-00 PLATE, BUFFLE 1PLATE, BUFFLE 1
-
1090110-06044-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190110-05013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290430-05126-00 GASKETGASKET
-
1390110-08014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490430-08119-00 GASKETGASKET
-
155PX-15189-00-00 PLUGPLUG
-
1693210-22382-00 O-RINGO-RING
-
1791314-06040-00 BOLTBOLT
-
1891314-06060-00 BOLTBOLT
-
1991314-06075-00 BOLTBOLT
-
2091314-06085-00 BOLTBOLT
-
2191314-06105-00 BOLTBOLT
-
2291314-06060-00 BOLTBOLT
-
2391314-08080-00 BOLTBOLT
-
2491314-08100-00 BOLTBOLT
-
2595024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2690430-08119-00 GASKETGASKET
-
2792014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2890430-05126-00 GASKETGASKET
-
295VN-15417-00-00 COVER, CAPCOVER, CAP
-
3093210-36769-00 O-RINGO-RING
-
3191314-06016-00 BOLTBOLT
