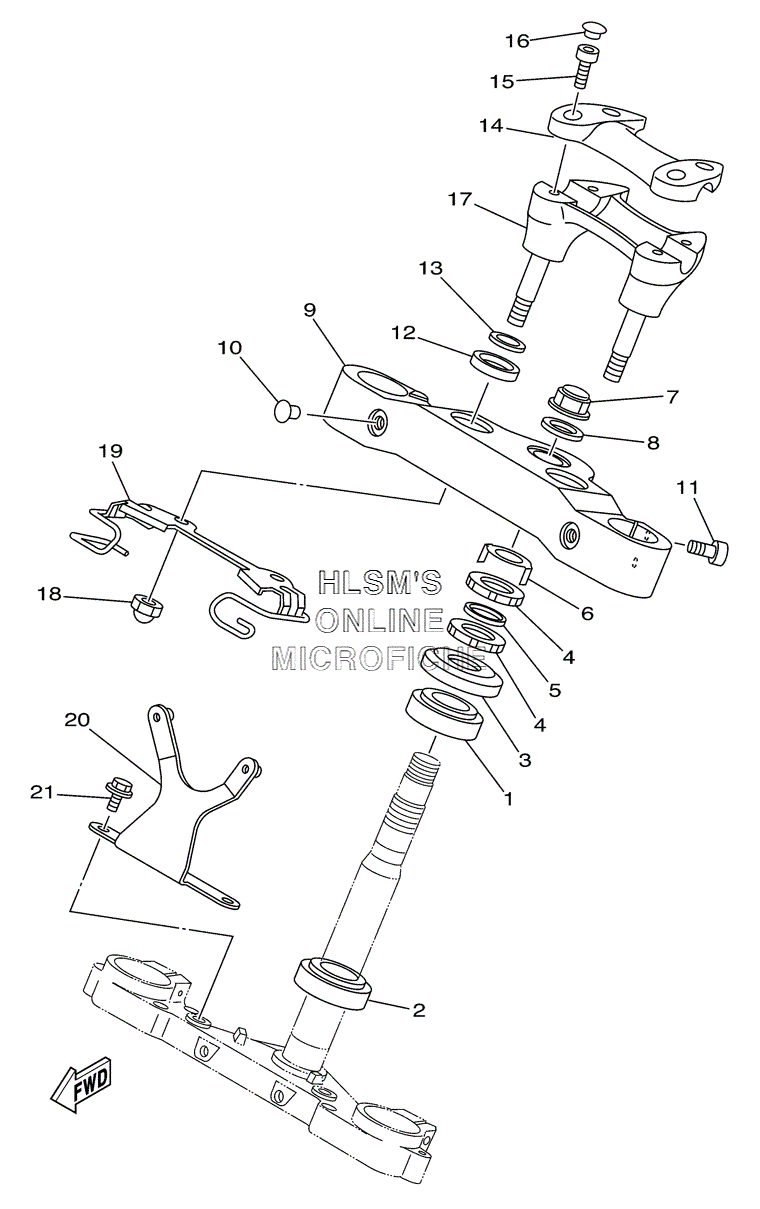

STEERING для Yamaha XV 1700 AM ROAD STAR MIDNIGHT CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
193332-00001-00 BEARINGBEARING
-
293332-00008-00 BEARINGBEARING
-
31W1-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
490179-25033-00 NUTNUT
-
590202-26142-00 WASHER, PLATEWASHER, PLATE
-
626H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
790176-22050-00 NUT, CROWNNUT, CROWN
-
890201-220T0-00 WASHER, PLATEWASHER, PLATE
-
94WM-W2341-10-00 CROWN, HANDLECROWN, HANDLE
-
104WM-23497-00-00 GROMMETGROMMET
-
1191314-06030-00 BOLTBOLT
-
123DM-23445-00-00 DAMPERDAMPER
-
1390201-14220-00 WASHER, PLATEWASHER, PLATE
-
145VR-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1591314-08025-00 BOLTBOLT
-
1690338-08163-00 PLUGPLUG
-
175VR-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1890176-12052-00 NUT, CROWNNUT, CROWN
-
194WM-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
204WM-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
2190105-06010-00 BOLT, FLANGEBOLT, FLANGE
