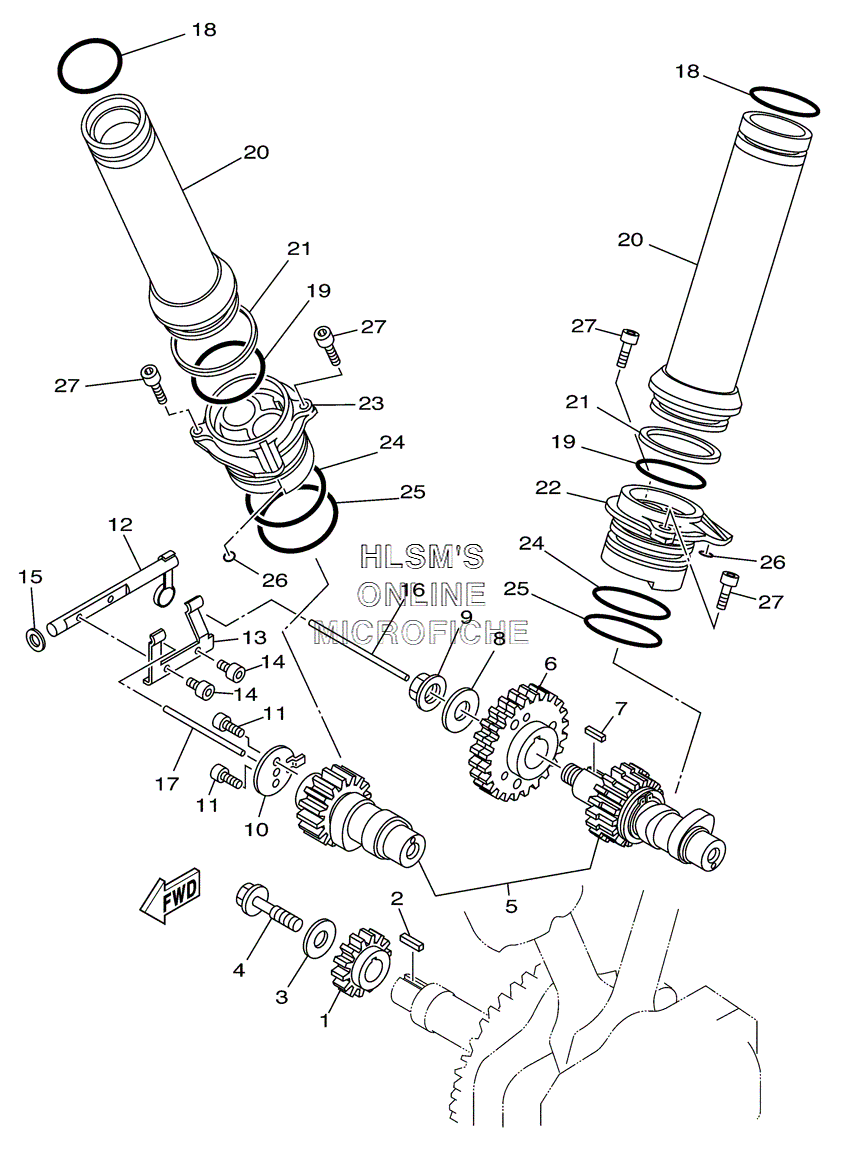

CAMSHAFT W/ PUSH ROD GUIDES для Yamaha XV 1700 AM ROAD STAR MIDNIGHT - 2004 года выпуска
-
№АртикулНазвание
-
14WM-11534-00-00 GEAR, BREAKER DRIVEGEAR, BREAKER DRIVE
-
290282-03039-00 KEY, STRAIGHTKEY, STRAIGHT
-
390201-100L3-00 WASHER, PLATEWASHER, PLATE
-
490105-10290-00 BOLT, FLANGEBOLT, FLANGE
-
55VN-W1211-00-00 CAM SHAFT ASSY.CAM SHAFT ASSY.
-
64WM-W1153-00-00 DRIVEN GEAR COMP.DRIVEN GEAR COMP.
-
790282-03012-00 KEY, STRAIGHTKEY, STRAIGHT
-
890201-140H8-00 WASHER, PLATEWASHER, PLATE
-
990179-14469-00 NUTNUT
-
104WM-11951-00-00 PLATEPLATE
-
1190110-05013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
124WM-12293-00-00 CONNECTOR, DECOMPRESSIONCONNECTOR, DECOMPRESSION
-
134WM-12282-00-00 LEVER, DECOMPRESSIONLEVER, DECOMPRESSION
-
1490110-04001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590201-08086-00 WASHER, PLATEWASHER, PLATE
-
164WM-12298-00-00 ROD, DECOMPRESSIONROD, DECOMPRESSION
-
174WM-12294-00-00 PIPE, DECOMPRESSIONPIPE, DECOMPRESSION
-
1893210-40745-00 O-RINGO-RING
-
1993210-472A9-00 O-RINGO-RING
-
205PX-12155-00-00 GUIDE, PUSH RODGUIDE, PUSH ROD
-
215PX-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
225PX-12147-00-00 HOUSINGHOUSING
-
235PX-12148-00-00 HOUSINGHOUSING
-
2493210-54175-00 O-RINGO-RING
-
2593210-54452-00 O-RINGO-RING
-
2693210-48364-00 O-RINGO-RING
-
2790110-06022-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
