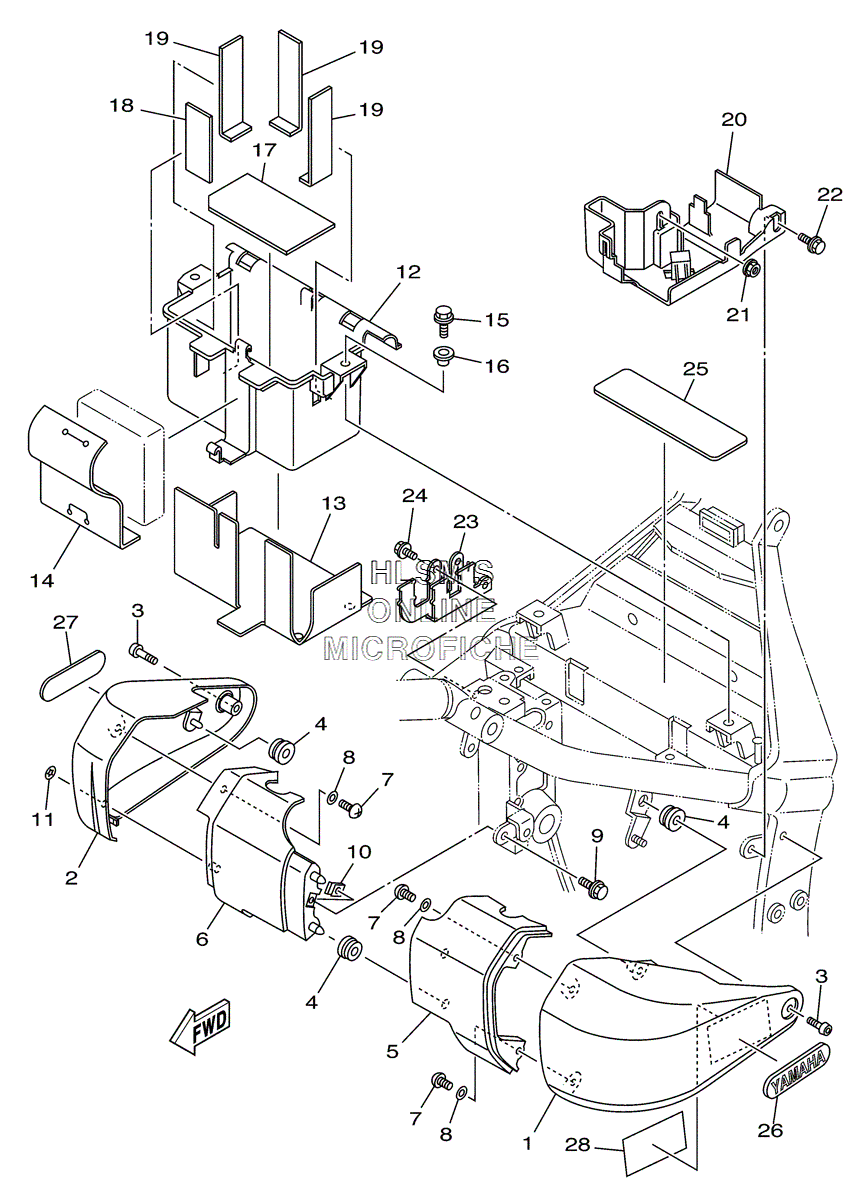

SIDE COVER для Yamaha XV 1700 ATM ROAD STAR MIDNIGHT SILVERADO - 2004 года выпуска
-
№АртикулНазвание
-
14WM-21711-00-PA COVER, SIDE 1 (RAVEN (SMX)COVER, SIDE 1 (RAVEN (SMX)
-
24WM-21721-00-PA COVER, SIDE 2 (RAVEN (SMX)COVER, SIDE 2 (RAVEN (SMX)
-
390149-06328-00 SCREWSCREW
-
490480-13567-00 GROMMETGROMMET
-
54WM-2117X-00-PA COVER 9 (RAVEN (SMX)COVER 9 (RAVEN (SMX)
-
64WM-2117Y-00-PA COVER 10 (RAVEN (SMX)COVER 10 (RAVEN (SMX)
-
798507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
995027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1090183-06100-00 NUT, SPRINGNUT, SPRING
-
1190183-05068-00 NUT, SPRINGNUT, SPRING
-
124WM-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
135VN-21732-00-00 SEAL 1SEAL 1
-
145VN-2176E-00-00 PLATEPLATE
-
1595807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1690387-07717-00 COLLARCOLLAR
-
1751Y-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
1826H-21746-00-00 DAMPERDAMPER
-
195PX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
204WM-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
2195607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
2290119-06007-00 BOLT WITH WASHERBOLT WITH WASHER
-
234WM-2172K-00-00 BRACKET 1BRACKET 1
-
2495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
255VN-21267-00-00 SHEET 2SHEET 2
-
263LS-21781-00-00 EMBLEM 1EMBLEM 1
-
273LS-21781-00-00 EMBLEM 1EMBLEM 1
-
285VN-2179V-00-00 PLATE, EPA 1 (EXCEPT CALIF.)PLATE, EPA 1 (EXCEPT CALIF.)
-
285VN-2179R-00-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
