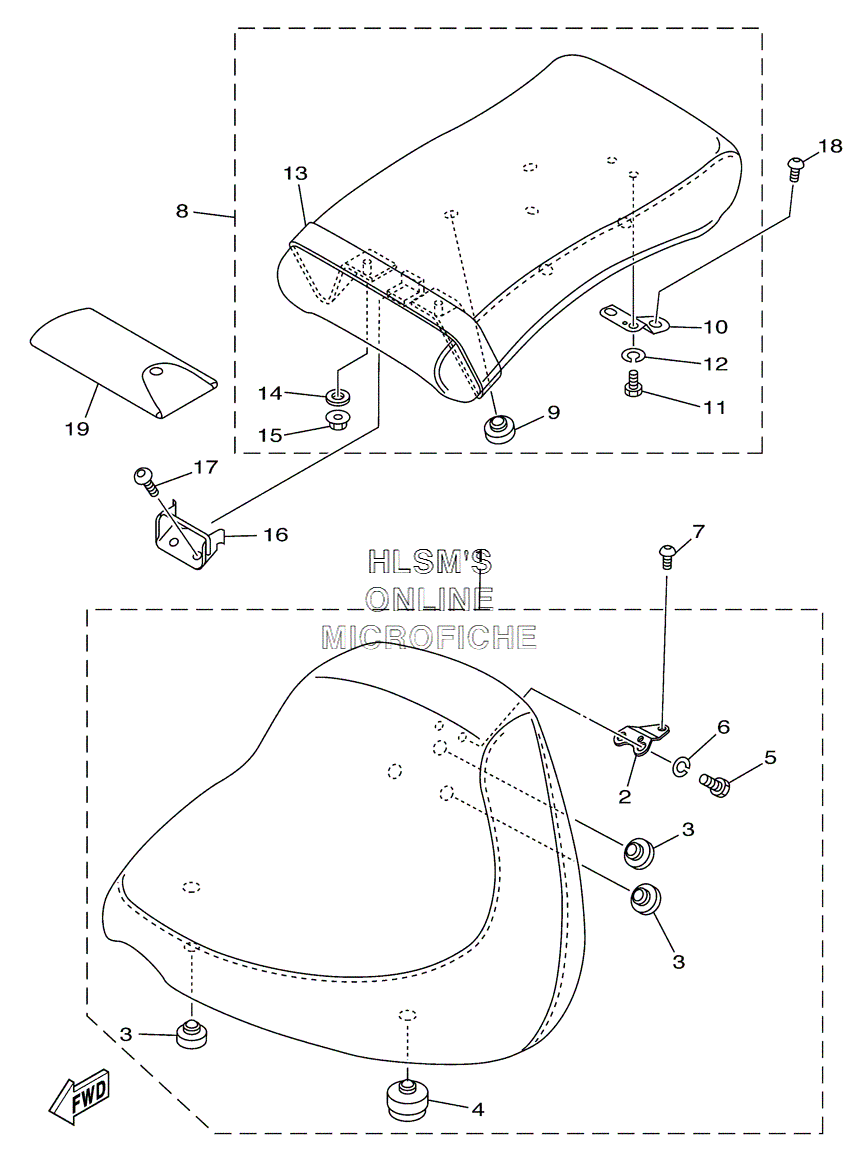

SEAT для Yamaha XVS 1100 A V STAR CLASSIC - 2004 года выпуска
-
№АртикулНазвание
-
15KS-24710-00-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
25KS-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
41T4-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
597007-06012-00 ...BOLT...BOLT
-
692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
792014-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
85KS-24750-00-00 TANDEM SEAT ASSY.TANDEM SEAT ASSY.
-
922W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
105BN-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
1197007-06012-00 ...BOLT...BOLT
-
1292907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
135KS-24734-00-00 ...BAND, SEAT...BAND, SEAT
-
1490207-06380-00 ...WASHER, FINISH...WASHER, FINISH
-
1595707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
165KS-2475N-00-00 BRACKETBRACKET
-
1792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1892014-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
195EL-28100-10-00 TOOL KITTOOL KIT
