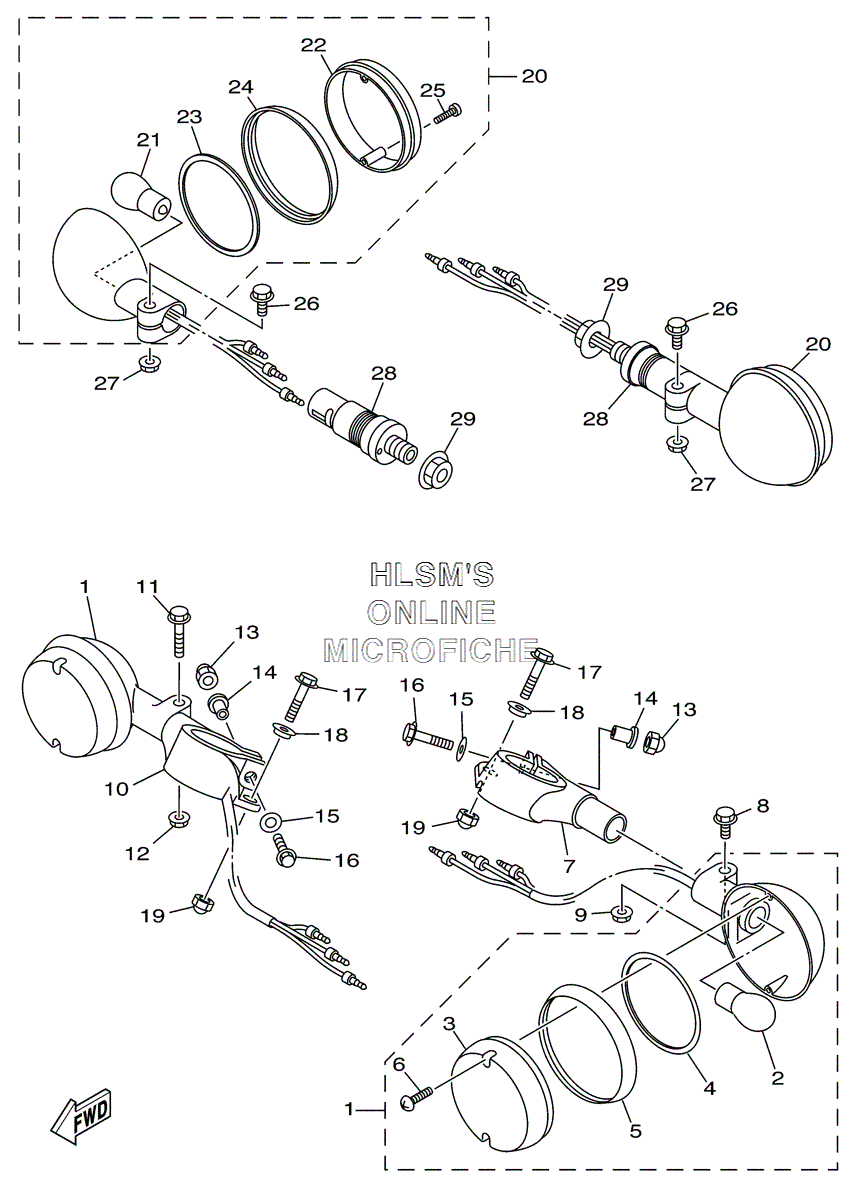

FLASHER LIGHT для Yamaha XVS 1100 V STAR CUSTOM - 2004 года выпуска
-
№АртикулНазвание
-
15FB-8333E-00-00 FRONT FLASHER LIGHT ASSY.FRONT FLASHER LIGHT ASSY.
-
2256-84714-61-00 ...BULB (12V-278W)...BULB (12V-278W)
-
342X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
442X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
542X-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
74VR-83314-00-00 BASE, FLASHER 1BASE, FLASHER 1
-
895024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
995704-06500-00 NUT, FLANGENUT, FLANGE
-
104VR-83324-00-00 BASE, FLASHER 2BASE, FLASHER 2
-
1195024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1295704-06500-00 NUT, FLANGENUT, FLANGE
-
1390176-06055-00 NUT, CROWNNUT, CROWN
-
1490387-063Y3-00 COLLARCOLLAR
-
1590201-06045-00 WASHER, PLATEWASHER, PLATE
-
1695807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1795027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1890560-06244-00 SPACERSPACER
-
1995304-06800-00 NUT, CROWNNUT, CROWN
-
2042X-83330-K0-00 REAR FLASHER LIGHT ASSY. 1REAR FLASHER LIGHT ASSY. 1
-
21256-83311-70-XX ......BULB (12V-27W)......BULB (12V-27W)
-
2242X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
2342X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2442X-83363-00-00 ...LENS, RIM...LENS, RIM
-
2557M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
2695024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2795704-06500-00 NUT, FLANGENUT, FLANGE
-
281AA-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
2995707-12500-00 NUT, FLANGENUT, FLANGE
