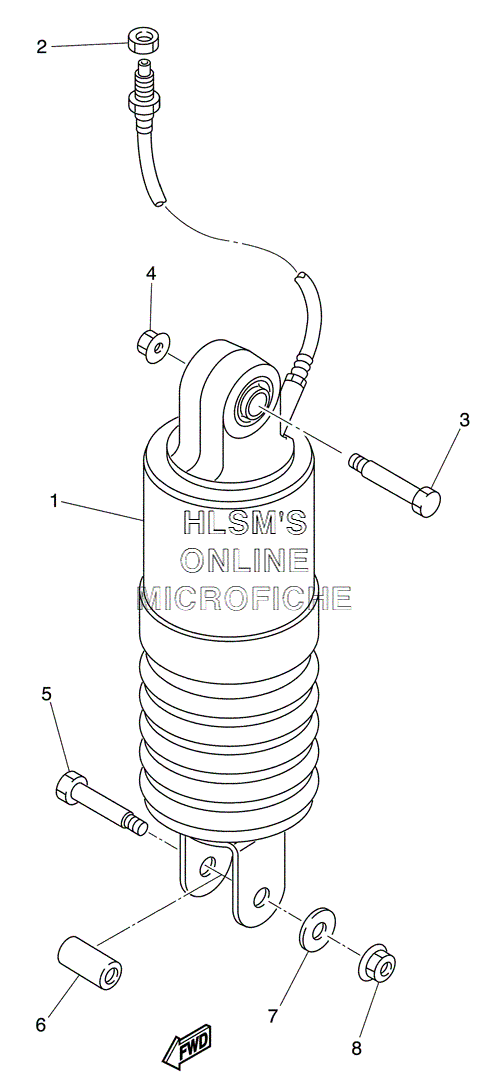

SUSPENSION - REAR SHOCK ABSORBER для Yamaha XVS 1300 TF ROYAL STAR VENTURE CALIFORNIA - 2004 года выпуска
![](/wa-data/public/shop/sheme/yamaha/streetbike/688c9b6d-dffb-44eb-8aa0-001508c0bf26.gif)
-
№АртикулНазвание
-
14XY-22210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
290170-14350-00 NUTNUT
-
390101-12498-00 BOLTBOLT
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590101-12498-00 BOLTBOLT
-
690387-126W4-00 COLLARCOLLAR
-
790201-126A7-00 WASHER, PLATEWASHER, PLATE
-
895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
