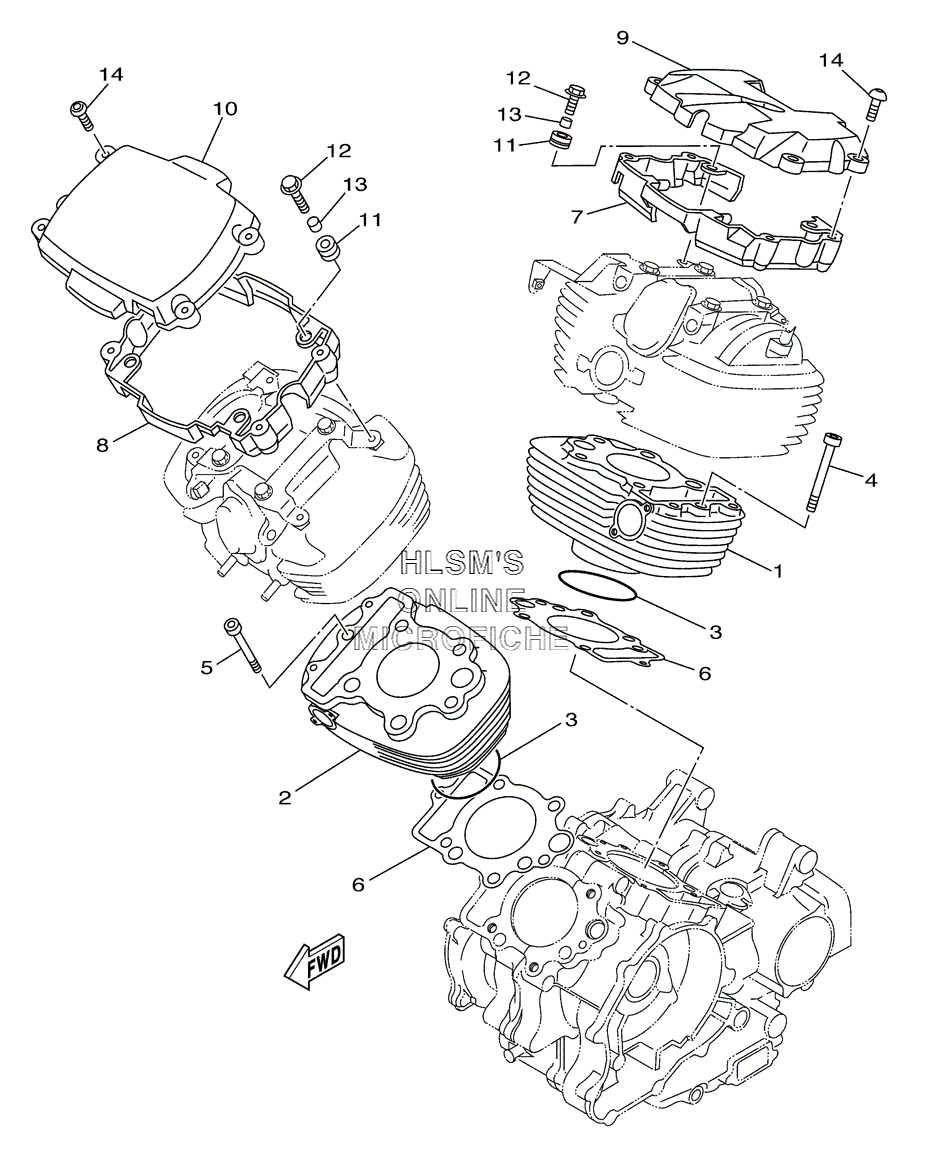

CYLINDER для Yamaha XVS 650 A V STAR CLASSIC - 2004 года выпуска
-
№АртикулНазвание
-
14VR-11310-20-00 CYLINDERCYLINDER
-
24VR-11320-20-00 CYLINDER 2CYLINDER 2
-
393210-84724-00 O-RINGO-RING
-
491317-06085-00 BOLTBOLT
-
590110-06011-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
64VR-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
74VR-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
84VR-11192-00-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
94VR-11190-00-00 COVER, CYLINDER HEAD 1 (EXCEPT CALIF.)COVER, CYLINDER HEAD 1 (EXCEPT CALIF.)
-
94VR-11190-10-00 COVER, CYLINDER HEAD 1 (CALIF. ONLY)COVER, CYLINDER HEAD 1 (CALIF. ONLY)
-
104VR-1111N-00-00 COVER 2COVER 2
-
1190480-13018-00 GROMMETGROMMET
-
1290119-06170-00 BOLT WITH WASHERBOLT WITH WASHER
-
1390387-06043-00 COLLARCOLLAR
-
1490149-06302-00 SCREWSCREW
