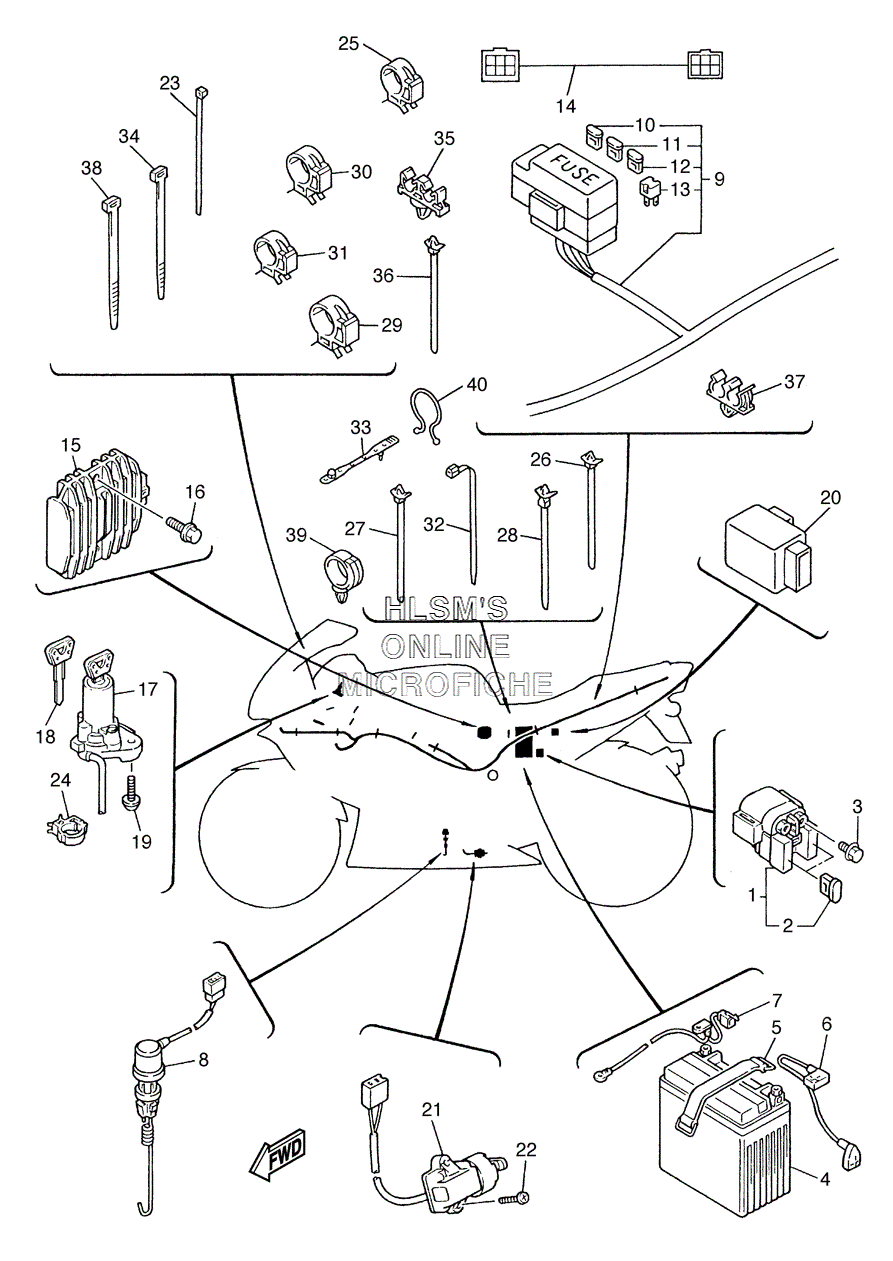

ELECTRICAL 2 для Yamaha YZF 600 R - 2004 года выпуска
-
№АртикулНазвание
-
14DN-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
21AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
4BTY-YTX12-BS-00 BATTERY ASSY. (YTX12-BS)BATTERY ASSY. (YTX12-BS)
-
52T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
64JH-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
74JH-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
81KT-82530-03-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
94WF-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
102GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
112KW-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
1236Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
133WP-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
144TV-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
154JH-81960-01-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
1695807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
174NA-82501-02-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
184BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1990109-080G5-00 BOLTBOLT
-
204TV-81950-00-00 RELAY ASSY.RELAY ASSY.
-
213LD-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2290157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2390464-13073-00 CLAMPCLAMP
-
2490464-15192-00 CLAMPCLAMP
-
2590464-10190-00 CLAMPCLAMP
-
2690464-12089-00 CLAMPCLAMP
-
2790464-12089-00 CLAMPCLAMP
-
2890464-10112-00 CLAMPCLAMP
-
2990464-25217-00 CLAMPCLAMP
-
3090464-15192-00 CLAMPCLAMP
-
3190464-10190-00 CLAMPCLAMP
-
3290464-15195-00 CLAMPCLAMP
-
3390464-07121-00 CLAMPCLAMP
-
341UA-82591-00-00 BANDBAND
-
3590464-08211-00 CLAMPCLAMP
-
3690464-12089-00 CLAMPCLAMP
-
3790464-08126-00 CLAMPCLAMP
-
3825G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3990464-20181-00 CLAMPCLAMP
