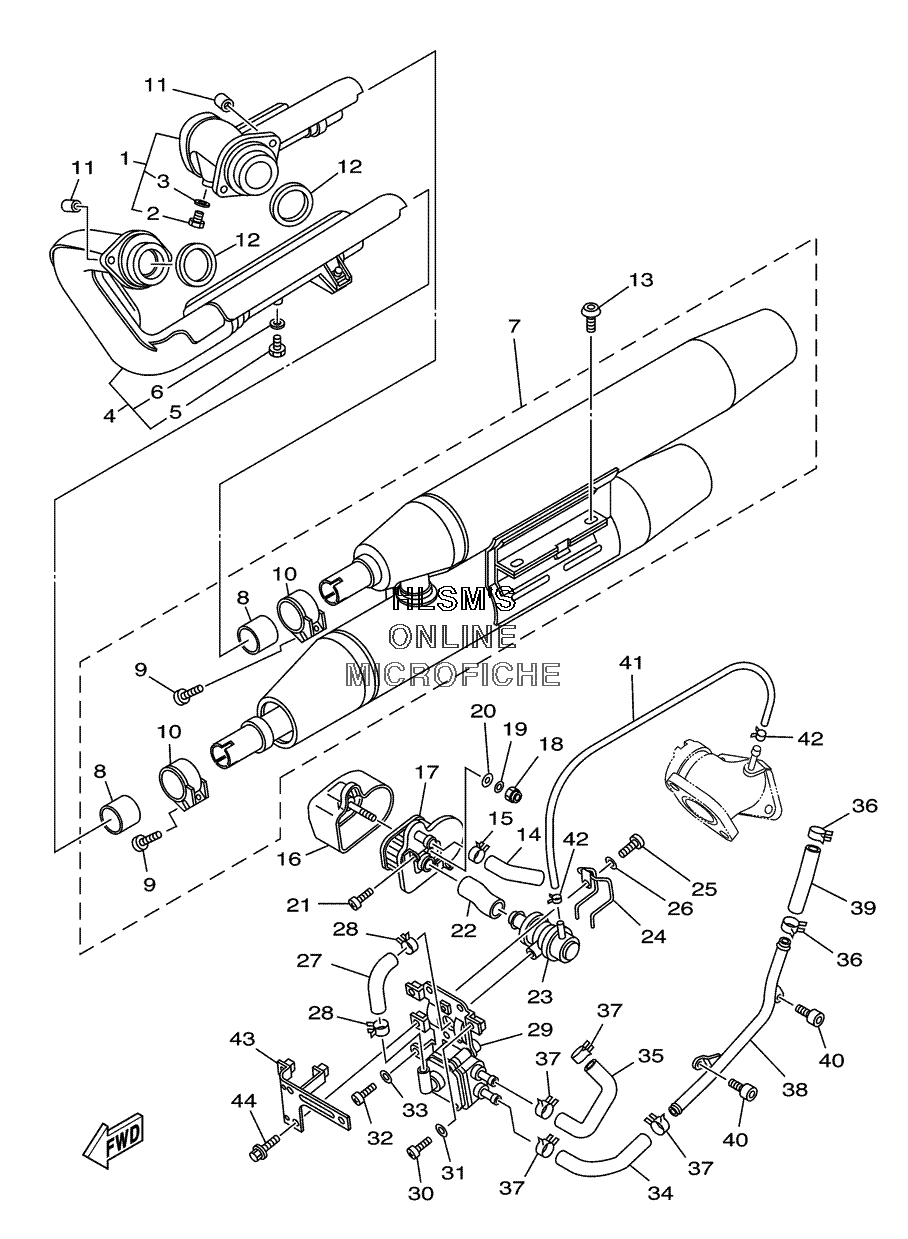

EXHAUST для Yamaha ROAD STAR MIDNIGHT - 2005 года выпуска
-
№АртикулНазвание
-
15VN-14610-00-00 EXHAUST PIPE ASSY. 1EXHAUST PIPE ASSY. 1
-
297080-06008-00 ...BOLT...BOLT
-
392990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
45VN-14620-00-00 EXHAUST PIPE ASSY. 2EXHAUST PIPE ASSY. 2
-
597080-06008-00 ...BOLT...BOLT
-
692990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
75VN-14710-00-00 MUFFLER ASSY. 1MUFFLER ASSY. 1
-
85KS-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
992014-08030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
105VN-14788-00-00 ...BAND, SILENCER...BAND, SILENCER
-
1190179-08442-00 NUTNUT
-
123EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1390111-10015-00 BOLTBOLT
-
144WM-14885-00-00 HOSE, BEND 5HOSE, BEND 5
-
1590467-19065-00 CLIP, SCISSORCLIP, SCISSOR
-
164WM-14857-00-00 CASE, AIR CLEANERCASE, AIR CLEANER
-
174WM-14858-00-00 CAP, CASECAP, CASE
-
1895607-05100-00 NUT, UNUT, U
-
1992907-05200-00 WASHERWASHER
-
2090202-05057-00 WASHER, PLATEWASHER, PLATE
-
2198517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
224WM-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
235VN-14840-00-00 AIR CUT VALVE ASSY.AIR CUT VALVE ASSY.
-
2490462-20248-00 CLAMPCLAMP
-
2598507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2692907-06600-00 WASHER, PLATEWASHER, PLATE
-
274WM-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
2890467-19065-00 CLIP, SCISSORCLIP, SCISSOR
-
295VN-14808-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
3098504-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3192904-06600-00 WASHERWASHER
-
3298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392907-06600-00 WASHER, PLATEWASHER, PLATE
-
345VN-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
355VN-14886-00-00 HOSE, BEND 6HOSE, BEND 6
-
3690468-08104-00 CLIPCLIP
-
3790467-160A2-00 CLIPCLIP
-
385VN-14871-00-00 PIPE 1PIPE 1
-
3990445-16004-00 HOSE (L64)HOSE (L64)
-
4091314-06014-00 BOLTBOLT
-
415VN-13542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
4290467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
434WM-14868-00-00 BRACKET 2BRACKET 2
-
4495027-06010-00 BOLT, FLANGEBOLT, FLANGE
