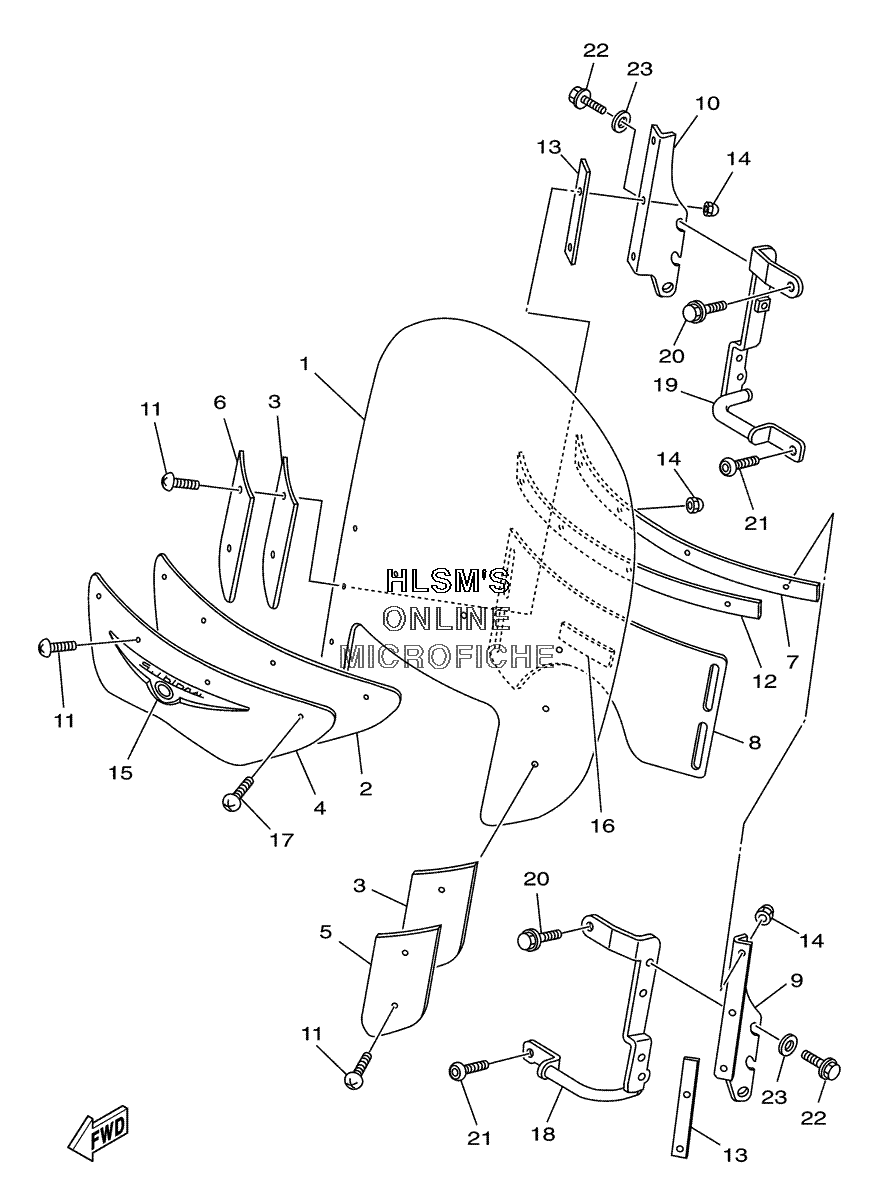

COWLING для Yamaha ROAD STAR SILVERADO TWO-TONE - 2005 года выпуска
-
№АртикулНазвание
-
15EJ-F837U-00-00 T/C REP SHIELD-MEDT/C REP SHIELD-MED
-
24NL-F837J-00-00 DAMPER 5DAMPER 5
-
34NL-F837K-00-00 DAMPER 6DAMPER 6
-
44NL-F8336-00-00 PLATEPLATE
-
54NL-F8397-00-00 PLATE 2PLATE 2
-
64NL-F8396-00-00 PLATE 1PLATE 1
-
74NL-F8337-00-00 HOLDERHOLDER
-
85GA-F838E-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
95GA-F836A-00-00 BRACKET 1BRACKET 1
-
105GA-F836E-00-00 BRACKET 2BRACKET 2
-
114NL-F8354-00-00 SCREW, COWLING 1SCREW, COWLING 1
-
124NL-F8345-00-00 MOLE 1MOLE 1
-
134NL-F8346-00-00 MOLE 2MOLE 2
-
144NL-F8362-00-00 CAP NUTCAP NUT
-
155GA-28315-00-00 EMBLEM, ROAD STAREMBLEM, ROAD STAR
-
164NL-F8307-00-00 SEALSEAL
-
174NL-F8355-00-00 SCREW, COWLING 2SCREW, COWLING 2
-
185GA-28356-01-00 STAY 1STAY 1
-
195GA-28357-01-00 STAY 2STAY 2
-
2095804-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2192014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2295804-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-08772-00 WASHER, PLATEWASHER, PLATE
