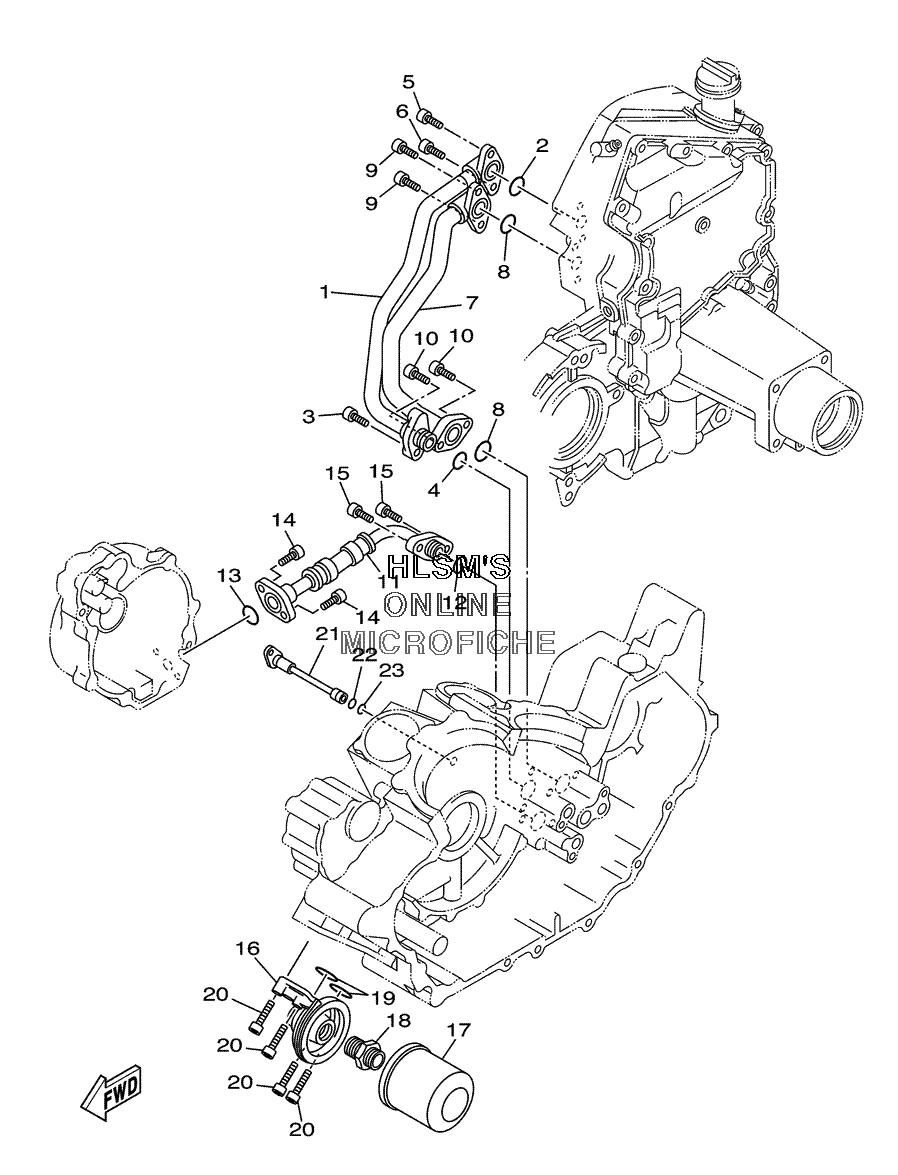

OIL CLEANER для Yamaha ROAD STAR WARRIOR W/FLAMES - 2005 года выпуска
-
№АртикулНазвание
-
15PX-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
293210-16629-00 O-RINGO-RING
-
391314-06020-00 BOLTBOLT
-
493210-15171-00 O-RINGO-RING
-
591314-06020-00 BOLTBOLT
-
691314-06070-00 BOLTBOLT
-
75PX-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
893210-19522-00 O-RINGO-RING
-
991314-06045-00 BOLTBOLT
-
1091314-06020-00 BOLTBOLT
-
115PX-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
1293210-13657-00 O-RINGO-RING
-
1393210-16629-00 O-RINGO-RING
-
1491314-06020-00 BOLTBOLT
-
1590110-06106-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165MB-13461-00-00 PLATE, ADAPTORPLATE, ADAPTOR
-
173FV-13440-10-00 ELEMENT ASSY., OIL CLEANERELEMENT ASSY., OIL CLEANER
-
1890401-20145-00 BOLT, UNIONBOLT, UNION
-
1993210-23326-00 O-RINGO-RING
-
2090110-06047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
214WM-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
2293210-08006-00 O-RINGO-RING
-
2393210-07003-00 O-RINGO-RING
