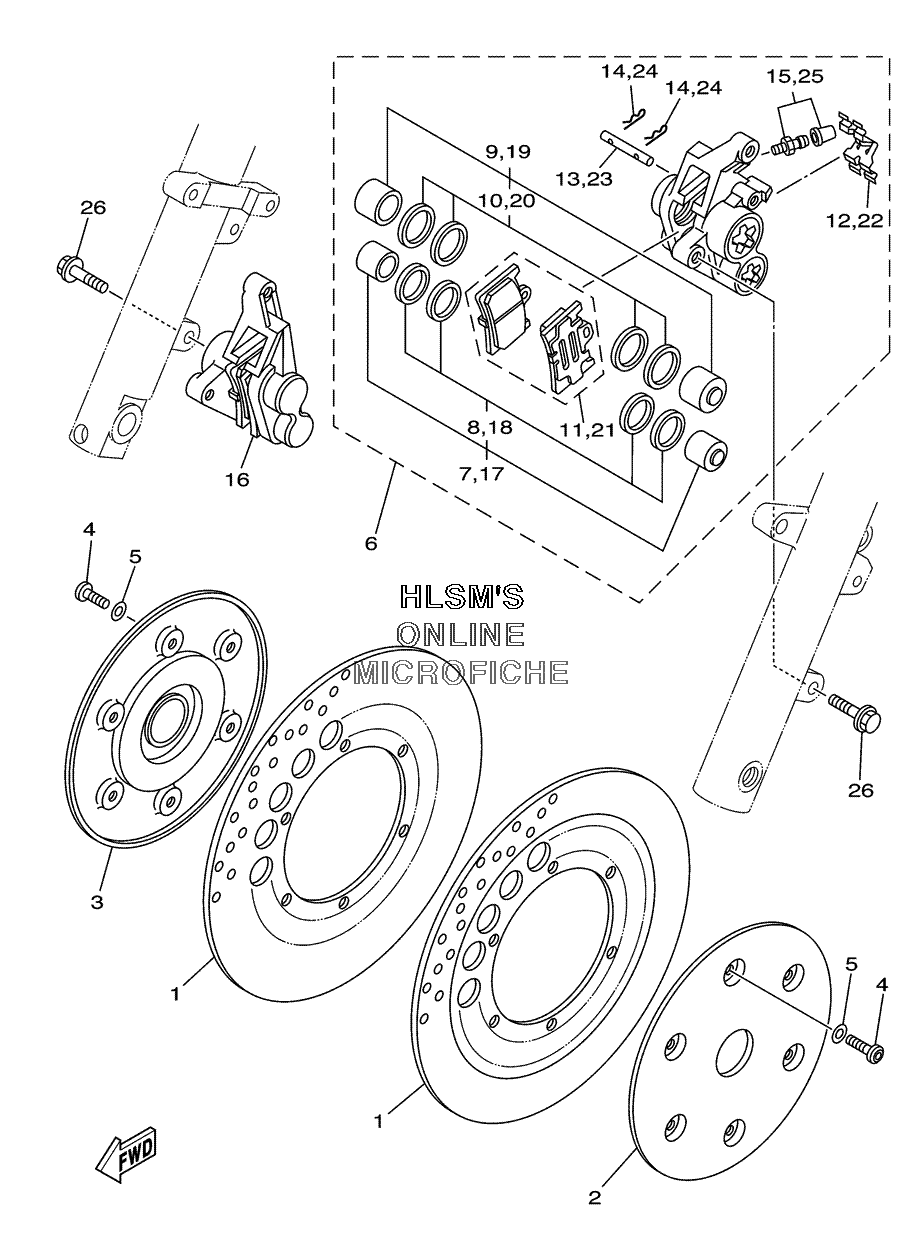

BRAKE - FRONT CALIPER для Yamaha ROAD STAR - 2005 года выпуска
-
№АртикулНазвание
-
13JB-2582U-01-00 DISK, BRAKE (RIGHT)DISK, BRAKE (RIGHT)
-
24NK-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
34WM-2515A-00-00 RING, WHEEL 2 (RIGHT)RING, WHEEL 2 (RIGHT)
-
490109-08006-00 BOLTBOLT
-
590201-08014-00 WASHER, PLATEWASHER, PLATE
-
65VN-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
74SV-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
83MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
94SV-W0057-10-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
103GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
115VN-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
125VN-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
134SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
143GM-25925-00-00 ...CLIP...CLIP
-
1551H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
165VN-2580U-00-00 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
174SV-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
183MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
194SV-W0057-10-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
203GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
215VN-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
225VN-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
234SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
243GM-25925-00-00 ...CLIP...CLIP
-
2551H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2690105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
