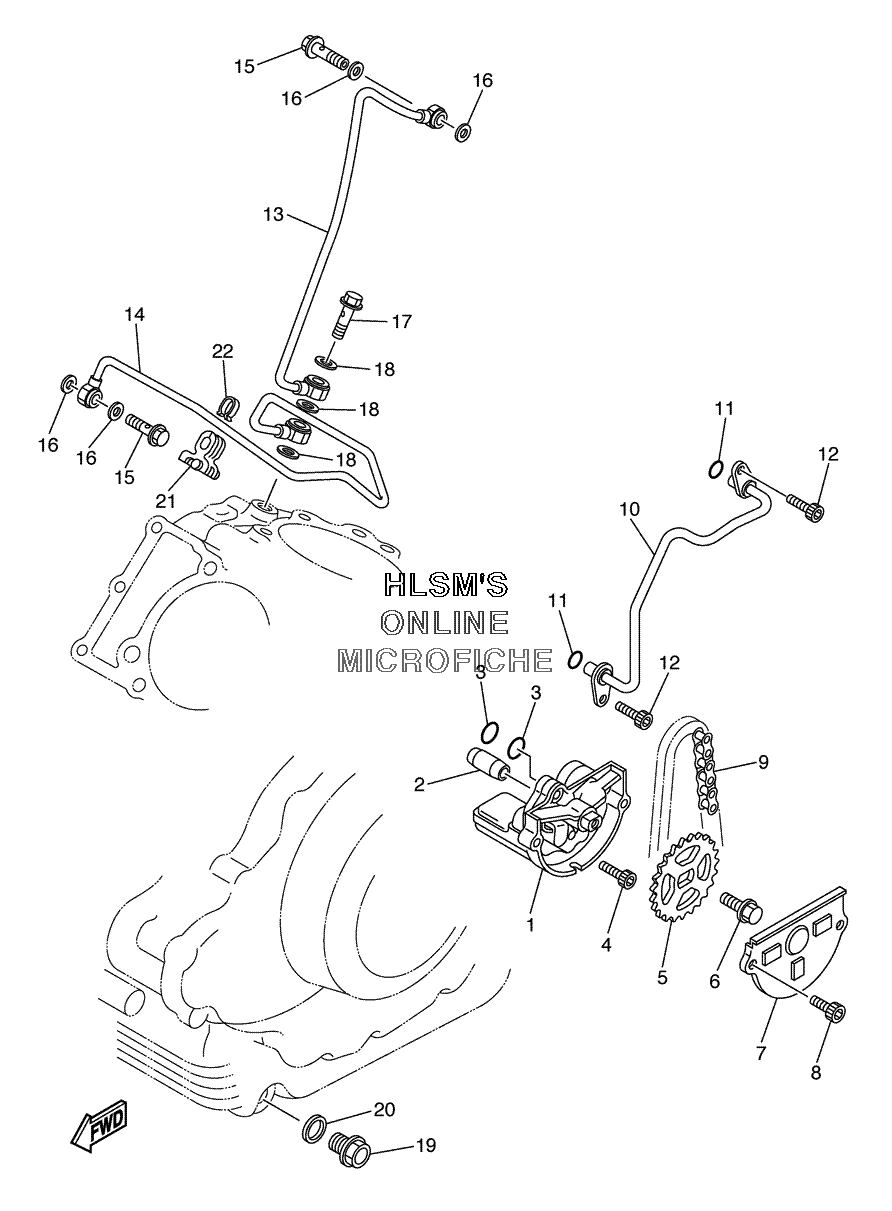

OIL PUMP для Yamaha V STAR 1100 CLASSIC - 2005 года выпуска
-
№АртикулНазвание
-
15EL-13300-01-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
299530-08016-00 PIN, DOWELPIN, DOWEL
-
393210-07135-00 O-RINGO-RING
-
491317-06040-00 BOLTBOLT
-
54X7-13355-00-00 SPROCKET, DRIVEN (35T)SPROCKET, DRIVEN (35T)
-
690105-06154-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
710L-13327-00-00 COVER, PUMP GEARCOVER, PUMP GEAR
-
891317-06010-00 BOLTBOLT
-
994580-25066-00 CHAINCHAIN
-
104X7-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
1193210-07135-00 O-RINGO-RING
-
1291317-06010-00 BOLTBOLT
-
135EL-13405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
145EL-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
1590401-16001-00 BOLT, UNIONBOLT, UNION
-
1690430-17168-00 GASKETGASKET
-
1790401-10102-00 BOLT, UNIONBOLT, UNION
-
1890430-15169-00 GASKETGASKET
-
1990340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
20214-11198-01-00 GASKETGASKET
-
215EL-15485-00-00 CLAMPCLAMP
-
2290468-05113-00 CLIPCLIP
