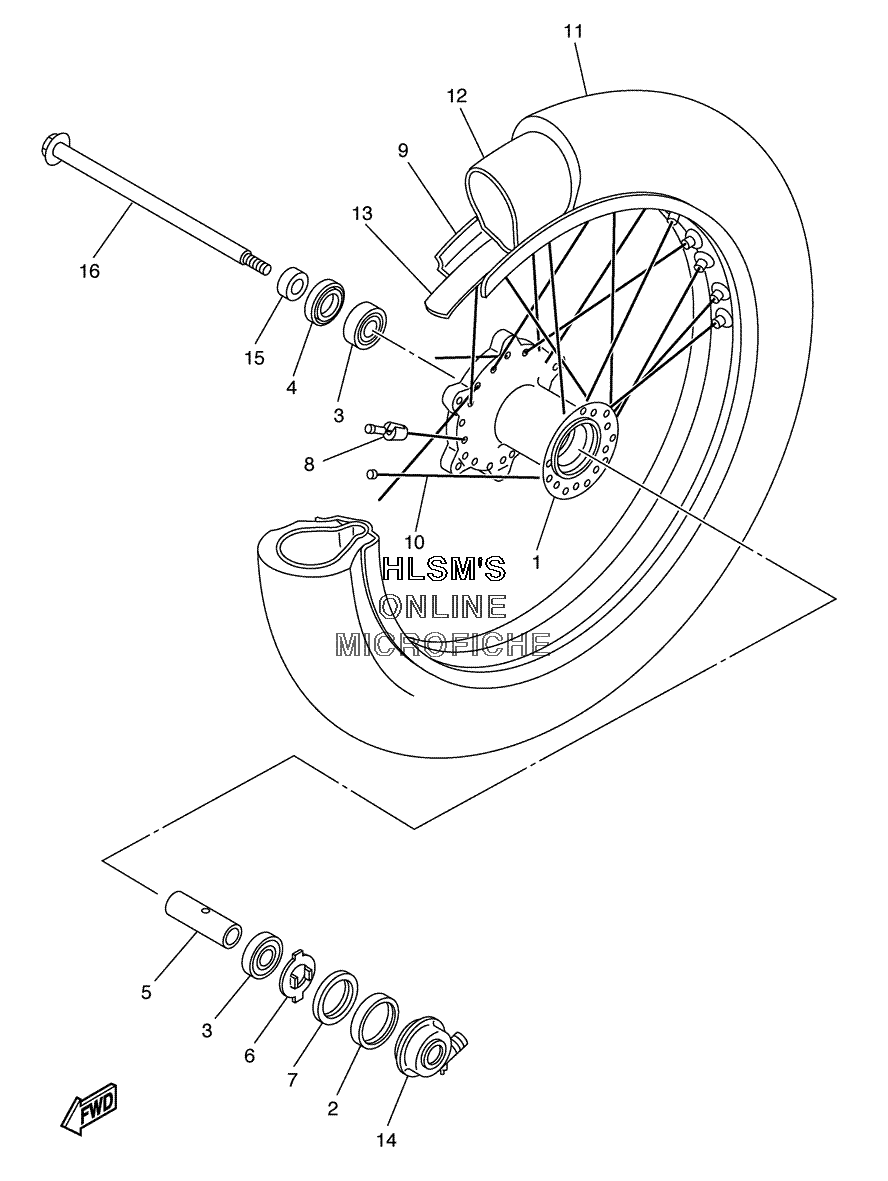

WHEEL - FRONT для Yamaha V STAR CUSTOM - 2005 года выпуска
-
№АртикулНазвание
-
14TR-25111-00-00 HUB, FRONTHUB, FRONT
-
293105-45017-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
393306-30317-00 .BEARING.BEARING
-
493102-28022-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
590387-173M5-00 COLLARCOLLAR
-
6341-25149-00-00 CLUTCH, METERCLUTCH, METER
-
7341-25846-00-00 RETAINER, CLUTCHRETAINER, CLUTCH
-
83HT-25398-00-00 BALANCER, WHEEL (15G)BALANCER, WHEEL (15G)
-
994425-19585-00 RIM (19M/C X MT2.50)RIM (19M/C X MT2.50)
-
104VR-25104-02-00 SPOKE SET, FRONTSPOKE SET, FRONT
-
1194110-1908T-00 TIRE (100/90-19 M/C 57S L309) (OPT) BRIDGESTONETIRE (100/90-19 M/C 57S L309) (OPT) BRIDGESTONE
-
1194110-1908V-00 TIRE (100/90-19 M/C 57S F24) (OPT) DUNLOPTIRE (100/90-19 M/C 57S F24) (OPT) DUNLOP
-
1294210-19222-00 TUBE (100/90-19 M/C TR4) BRIDGESTONETUBE (100/90-19 M/C TR4) BRIDGESTONE
-
1394321-19157-00 BAND, RIM (2.15-19) (OPT) BRIDGESTONEBAND, RIM (2.15-19) (OPT) BRIDGESTONE
-
1394321-19135-00 BAND, RIM (1.85-19) (OPT) DUNLOPBAND, RIM (1.85-19) (OPT) DUNLOP
-
144TR-25190-20-00 GEAR UNIT ASSY.GEAR UNIT ASSY.
-
1590387-173R6-00 COLLARCOLLAR
-
165KS-25181-00-00 AXLE, WHEELAXLE, WHEEL
