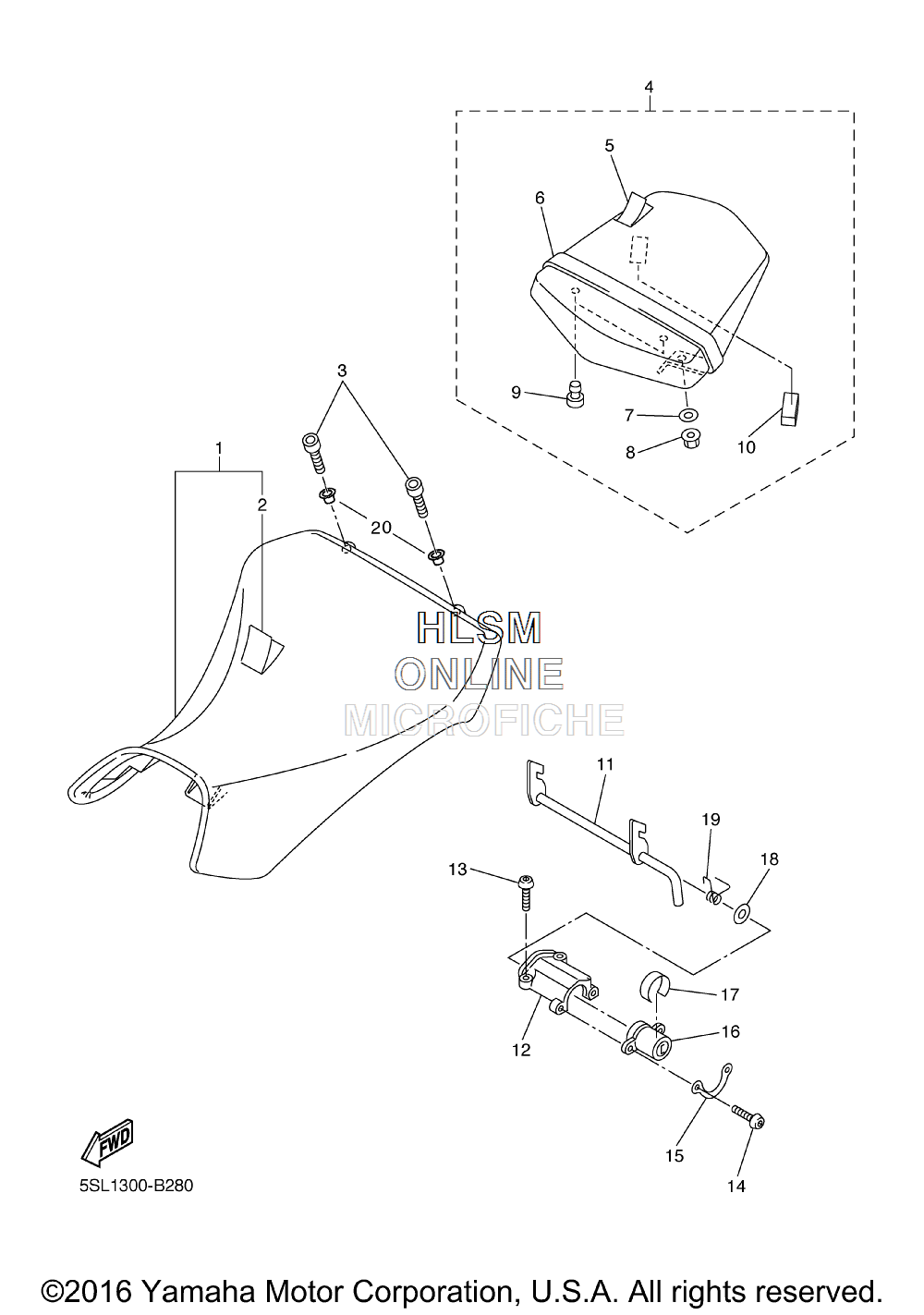

SEAT для Yamaha YZF-R6 [ 5YZFR6T/C] (5SLR/5SLS) - 2005 года выпуска
-
№АртикулНазвание
-
15SL-24710-00-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
25SL-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
390110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45SL-24750-00-00 TANDEM SEAT ASSY.TANDEM SEAT ASSY.
-
55SL-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
65SL-24720-00-00 ...SEAT BAND ASSY....SEAT BAND ASSY.
-
790201-06008-00 ...WASHER, PLATE...WASHER, PLATE
-
895607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
95SL-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
105SL-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
115SL-24780-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
125SL-24792-00-00 PLATEPLATE
-
1392017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1492017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
155SL-2479R-00-00 PLATE, COVERPLATE, COVER
-
165SL-W2470-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
175SL-24858-00-00 SEALSEAL
-
1890202-08001-00 WASHER, PLATEWASHER, PLATE
-
195SL-24758-00-00 SPRINGSPRING
