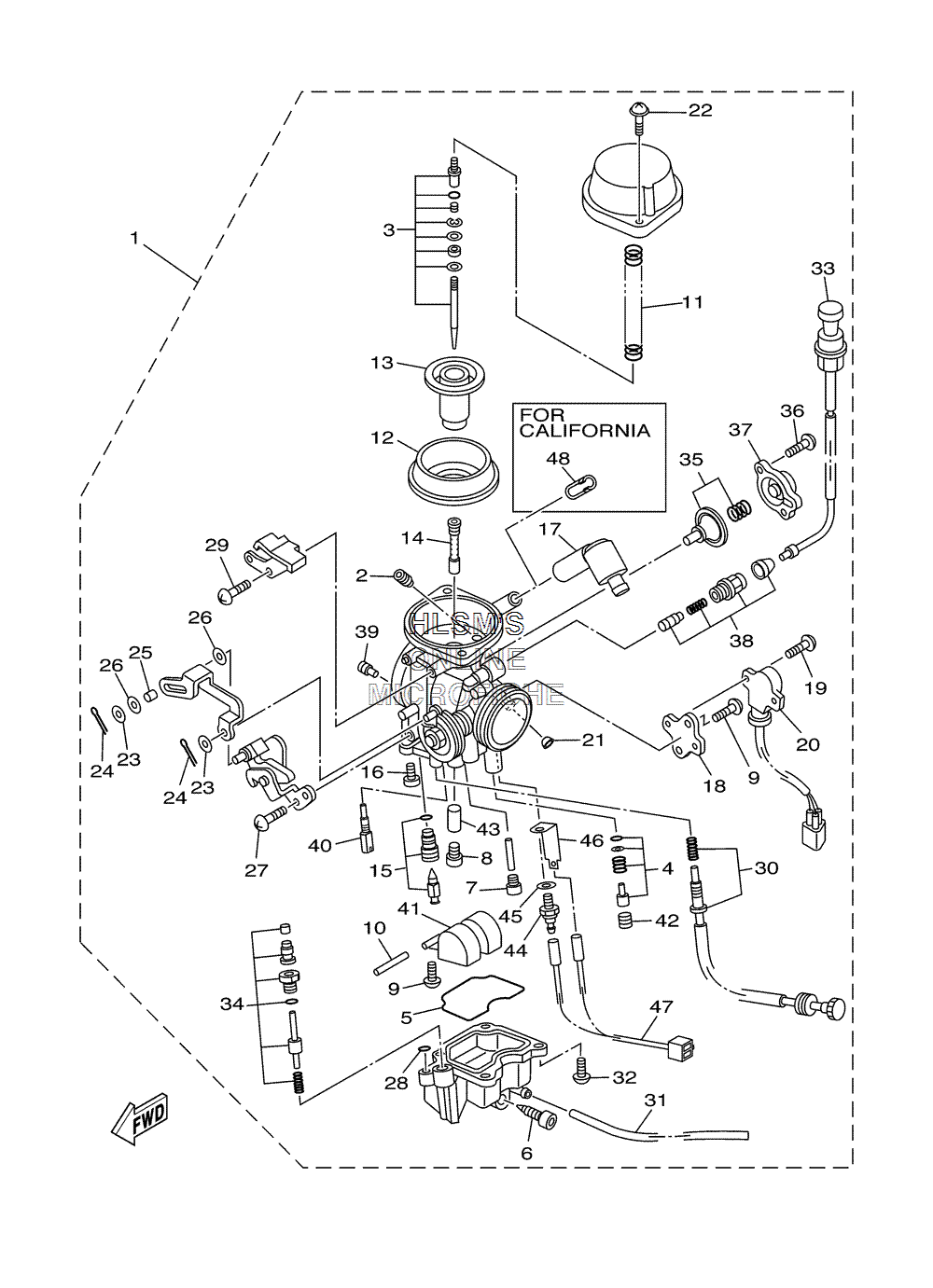

CARBURETOR для Yamaha ROAD STAR CAST WHEELS - 2006 года выпуска
-
№АртикулНазвание
-
15VN-14101-00-00 CARBURETOR ASSY 1 (EXCEPT CALIF.)CARBURETOR ASSY 1 (EXCEPT CALIF.)
-
15VN-14101-10-00 CARBURETOR ASSY 1 (CALIF ONLY)CARBURETOR ASSY 1 (CALIF ONLY)
-
2239-14172-20-00 ...PILOT JET, AIR (2.0)...PILOT JET, AIR (2.0)
-
34WM-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
44WM-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
55DM-14561-00-00 ...O-RING...O-RING
-
64KP-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
73G2-14231-00-00 ...JET, MAIN (0.6)...JET, MAIN (0.6)
-
8620-14231-87-00 ...JET, MAIN (#182.5)...JET, MAIN (#182.5)
-
998507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
10127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
114KM-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
124SV-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
134SV-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
144WM-14141-02-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
154SV-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
161FN-14565-00-00 ...SCREW...SCREW
-
174SV-14197-00-00 ...PIPE...PIPE
-
184WM-14291-00-00 ...BRACKET 1...BRACKET 1
-
194WM-14565-00-00 ...SCREW...SCREW
-
204WM-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
213XV-14994-00-00 ...NET, FILTER...NET, FILTER
-
224KM-14216-00-00 ...SCREW...SCREW
-
2373A-14973-00-00 ...WASHER...WASHER
-
2491492-12008-00 ...PIN, COTTER...PIN, COTTER
-
254WM-14264-00-00 ...COLLAR...COLLAR
-
264WM-14327-00-00 ...WASHER...WASHER
-
2798507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
283FV-14147-00-00 ...O-RING...O-RING
-
2998507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
304WM-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
314WM-14987-00-00 ...HOSE...HOSE
-
3298507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
334WM-14130-00-00 ...CABLE...CABLE
-
344WM-14504-00-00 ...ROD SET...ROD SET
-
354WM-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
361UY-14565-00-00 ...SCREW...SCREW
-
373LD-14958-00-00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
384WM-1410A-00-00 ...STARTER SET...STARTER SET
-
391HX-14231-20-00 ...JET, PILOT AIR (#100)...JET, PILOT AIR (#100)
-
404KM-14142-35-00 ...JET, PILOT (#35)...JET, PILOT (#35)
-
415DM-14985-00-00 ...FLOAT...FLOAT
-
423F9-14118-00-00 ...CAP...CAP
-
434WM-14918-00-00 ...RING...RING
-
445FU-83790-20-00 ...HEATER ASSY (30W)...HEATER ASSY (30W)
-
4590201-085R5-00 ...WASHER, PLATE...WASHER, PLATE
-
463BT-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
474WM-81517-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
485VN-14293-00-00 ...COVER 1...COVER 1
