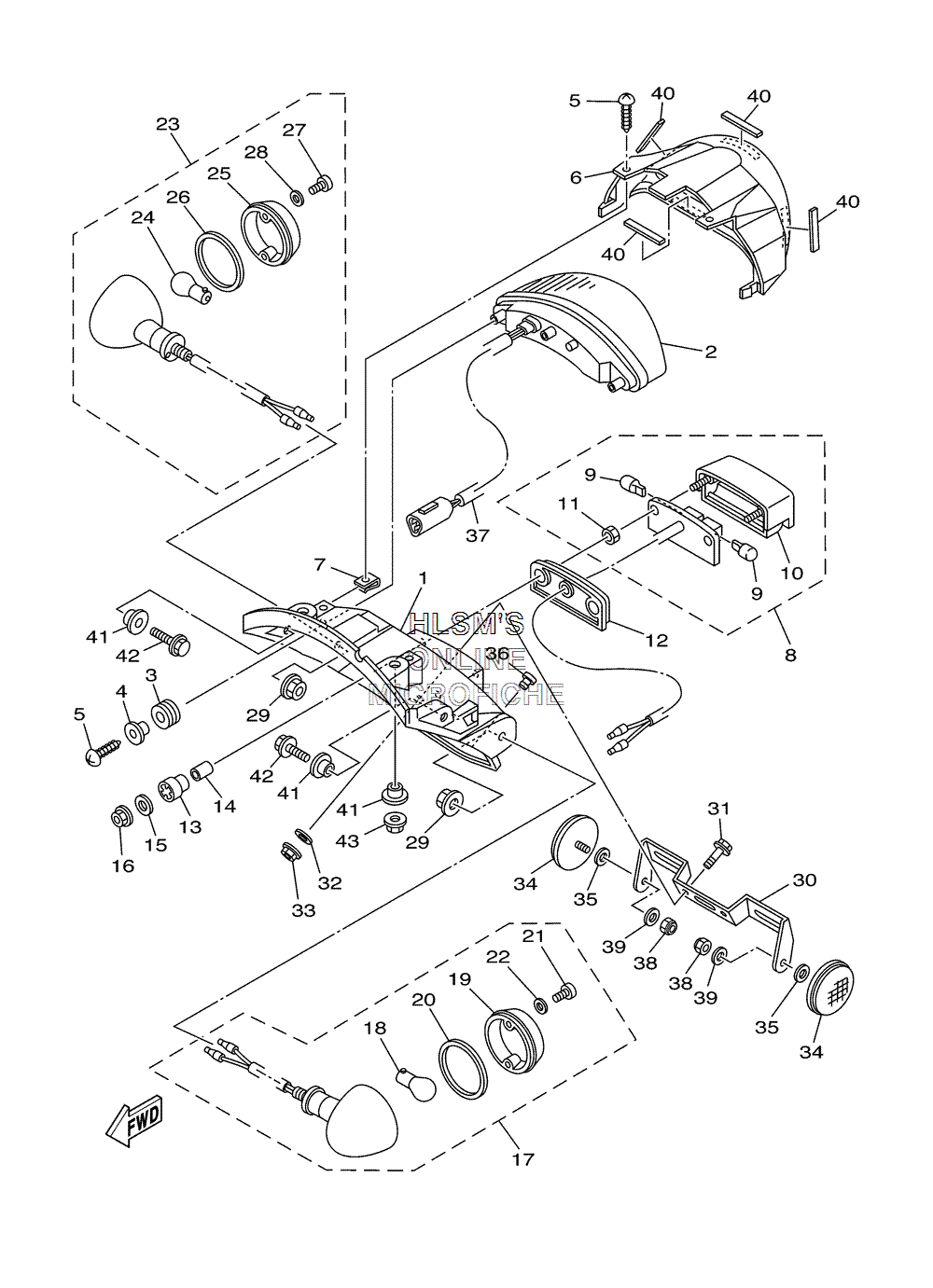

TAILLIGHT для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2006 года выпуска
-
№АртикулНазвание
-
15PX-84711-00-00 BASE, TAILLIGHTBASE, TAILLIGHT
-
25PX-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
35PX-84553-00-00 DAMPERDAMPER
-
45PX-84557-00-00 COLLARCOLLAR
-
597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
65PX-84716-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
85PX-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
95PX-84744-00-00 ...BULB (12V-2CP)...BULB (12V-2CP)
-
105PX-84749-00-00 ...BODY, LICENSE LIGHT...BODY, LICENSE LIGHT
-
115PX-84748-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
125PX-84742-00-00 SEAT, BASESEAT, BASE
-
133F9-84553-00-00 DAMPERDAMPER
-
1490387-06241-00 COLLARCOLLAR
-
1590201-05033-00 WASHER, PLATEWASHER, PLATE
-
1695707-05500-00 NUT, FLANGENUT, FLANGE
-
175PX-83330-20-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
185VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
195PX-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
205PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2197704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
225PX-83348-00-00 ...WASHER...WASHER
-
235PX-83340-20-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
245VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
255PX-83342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
265PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2797704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
285PX-83348-00-00 ...WASHER...WASHER
-
2995707-12500-00 NUT, FLANGENUT, FLANGE
-
305PX-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3195027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3290201-06380-00 WASHER, PLATEWASHER, PLATE
-
3395607-06100-00 NUT, UNUT, U
-
34449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
3590201-05033-00 WASHER, PLATEWASHER, PLATE
-
3690338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
375PX-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
385PX-84548-00-00 NUT, UNUT, U
-
395PX-84754-00-00 WASHER, PLATEWASHER, PLATE
-
405PX-84753-00-00 DAMPERDAMPER
-
4190387-06648-00 COLLARCOLLAR
-
4295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
