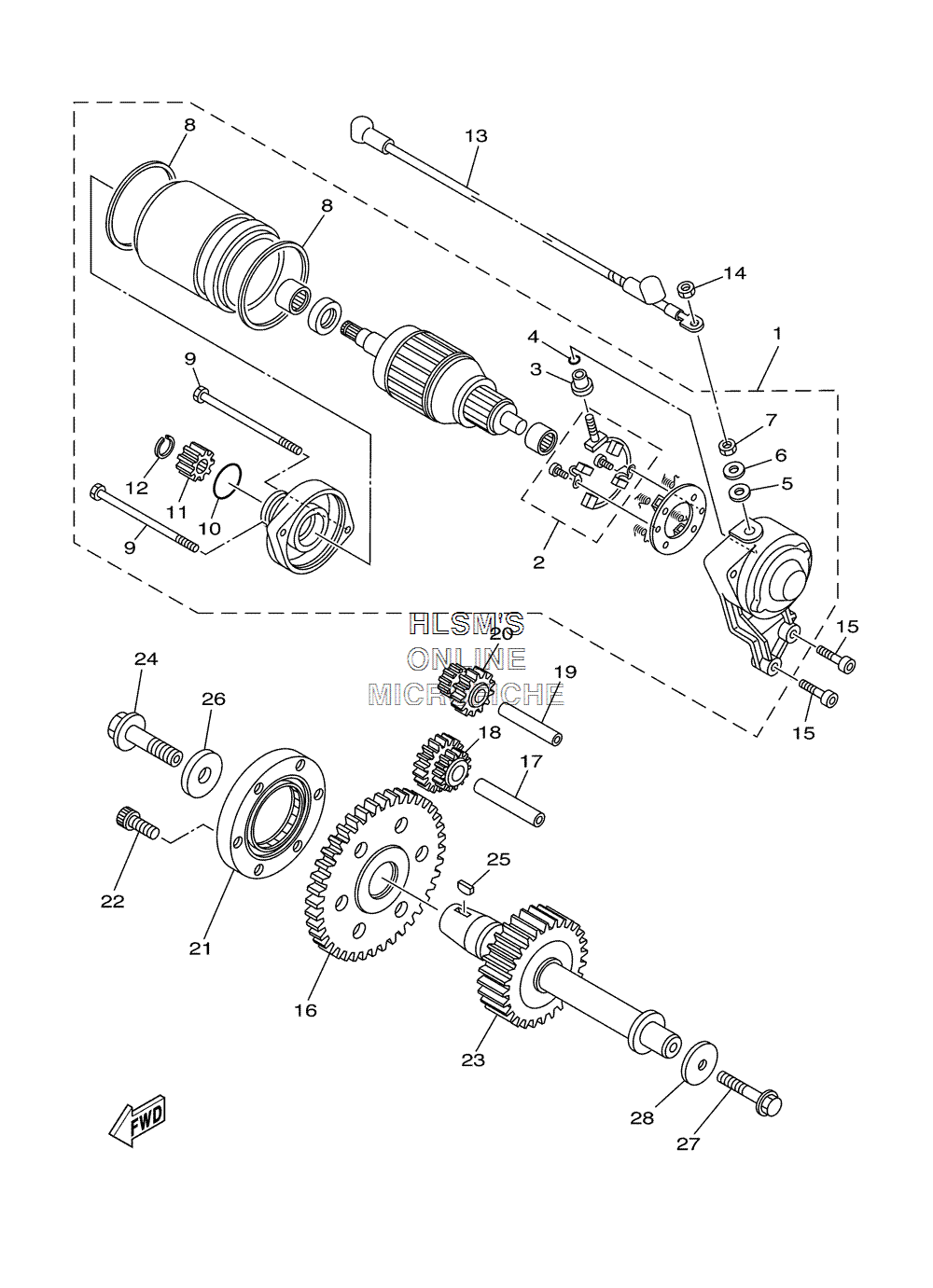

STARTER для Yamaha ROAD STAR WARRIOR W/ FLAMES - 2006 года выпуска
-
№АртикулНазвание
-
15PX-81890-01-00 MOTOR ASSYMOTOR ASSY
-
28ES-81801-00-00 ...BRUSH SET...BRUSH SET
-
35PX-8182G-00-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
493210-06001-00 ...O-RING...O-RING
-
55PX-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
690201-06726-00 ...WASHER, PLATE...WASHER, PLATE
-
795304-06700-00 ...NUT...NUT
-
85PX-81861-00-00 ...GASKET...GASKET
-
95PX-81846-00-00 ...SCREW...SCREW
-
1093210-25711-00 ...O-RING...O-RING
-
115PX-15511-00-00 ...GEAR, STARTING MOTOR...GEAR, STARTING MOTOR
-
1299009-10800-00 ...CIRCLIP...CIRCLIP
-
135PX-8183G-00-00 CORD COMP.CORD COMP.
-
1495304-06700-00 NUTNUT
-
1591314-06025-00 BOLTBOLT
-
164WM-15515-00-00 GEAR 3GEAR 3
-
174WM-15522-00-00 SHAFT 2SHAFT 2
-
184WM-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
194WM-15521-00-00 SHAFT 1SHAFT 1
-
204WM-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
214WM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
2290110-08015-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235VN-15659-00-00 SHAFTSHAFT
-
2490105-12005-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2590280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
2690201-12008-00 WASHER, PLATEWASHER, PLATE
-
2795817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
284WM-15653-00-00 WASHERWASHER
