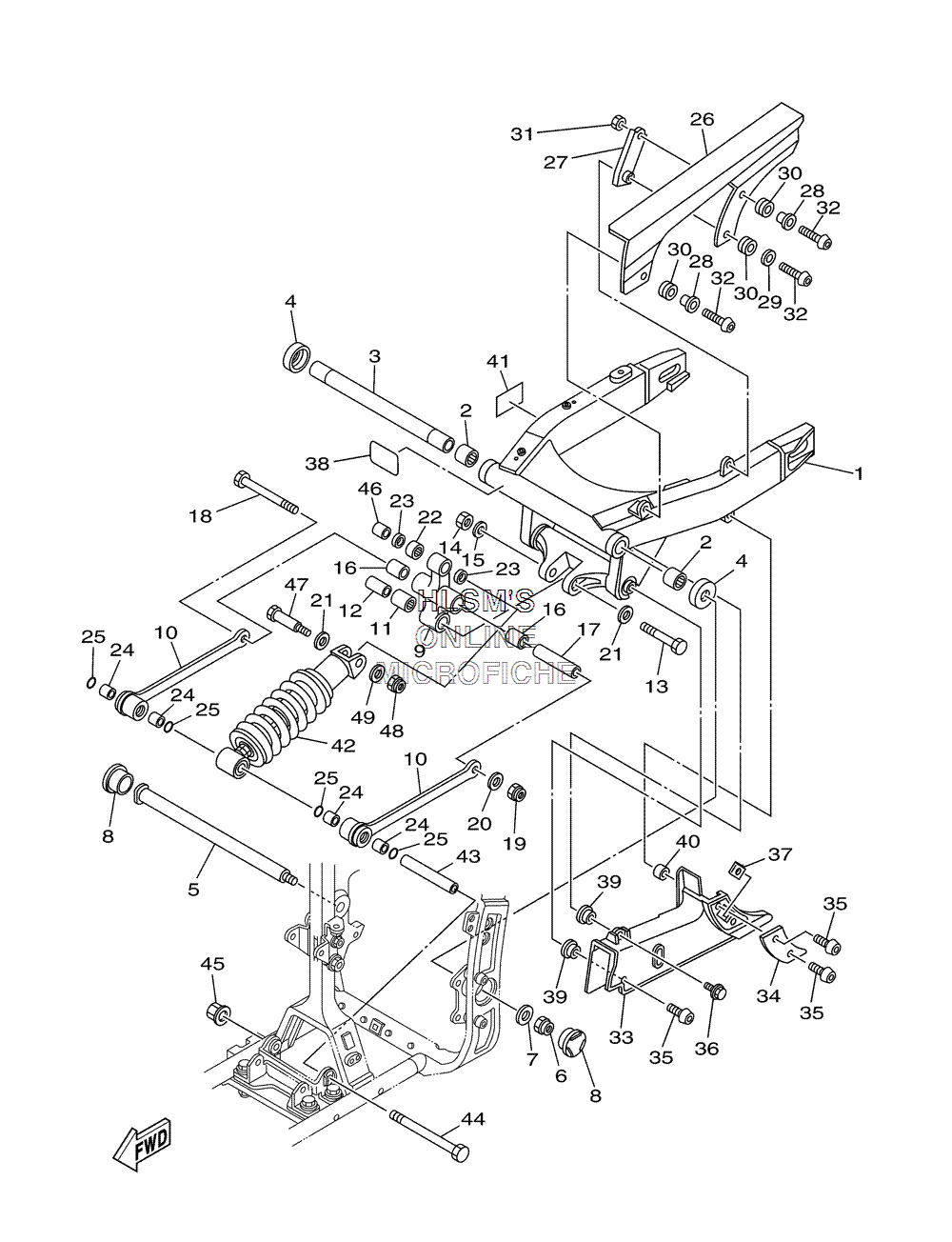

SUSPENSION - REAR ARM для Yamaha ROAD STAR WARRIOR - 2006 года выпуска
-
№АртикулНазвание
-
15PX-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
293317-42550-00 BEARING, CYL.#17BEARING, CYL.#17
-
35PX-22184-00-00 BUSHBUSH
-
45JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
55PX-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
690185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790201-186M4-00 WASHER, PLATEWASHER, PLATE
-
84KM-2219X-00-00 COVERCOVER
-
95PX-2217A-00-00 ARM, RELAYARM, RELAY
-
104WM-2217M-10-00 ARM 1ARM 1
-
1193317-42060-00 BEARING, CYL.#17BEARING, CYL.#17
-
1290387-122J6-00 COLLARCOLLAR
-
1390101-12002-00 BOLTBOLT
-
1495617-12100-00 NUT, UNUT, U
-
1590201-12688-00 WASHER, PLATEWASHER, PLATE
-
1693317-41761-00 BEARING, CYL.#17BEARING, CYL.#17
-
1790387-126T1-00 COLLARCOLLAR
-
1890101-12673-00 BOLTBOLT
-
1995617-12100-00 NUT, UNUT, U
-
2090201-126A7-00 WASHER, PLATEWASHER, PLATE
-
2190201-13013-00 WASHER, PLATEWASHER, PLATE
-
2293317-31771-00 BEARINGBEARING
-
2393109-17071-00 OIL SEALOIL SEAL
-
2490384-18157-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
2593210-18397-00 O-RINGO-RING
-
265PX-22311-00-00 CASE, CHAINCASE, CHAIN
-
275PX-2213J-01-00 STAY, CHAIN CASESTAY, CHAIN CASE
-
2890387-064L2-00 COLLARCOLLAR
-
2990201-06063-00 WASHER, PLATEWASHER, PLATE
-
3090480-13004-00 GROMMETGROMMET
-
3195307-06600-00 NUTNUT
-
3290111-06038-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
335PX-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
345PX-22341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
3590149-06298-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
3690119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790183-06053-00 NUT, SPRINGNUT, SPRING
-
384DN-21268-00-00 SEALSEAL
-
3990387-065T2-00 COLLARCOLLAR
-
4090387-06372-00 COLLARCOLLAR
-
415JW-21668-00-00 LABEL, TIRELABEL, TIRE
-
425PX-22210-20-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
4390387-1214E-00 COLLARCOLLAR
-
4490101-12695-00 BOLTBOLT
-
4595607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4690387-127W0-00 COLLARCOLLAR
-
4790101-10659-00 BOLTBOLT
-
4895617-10100-00 NUT, UNUT, U
-
4990201-101J1-00 WASHER, PLATEWASHER, PLATE
