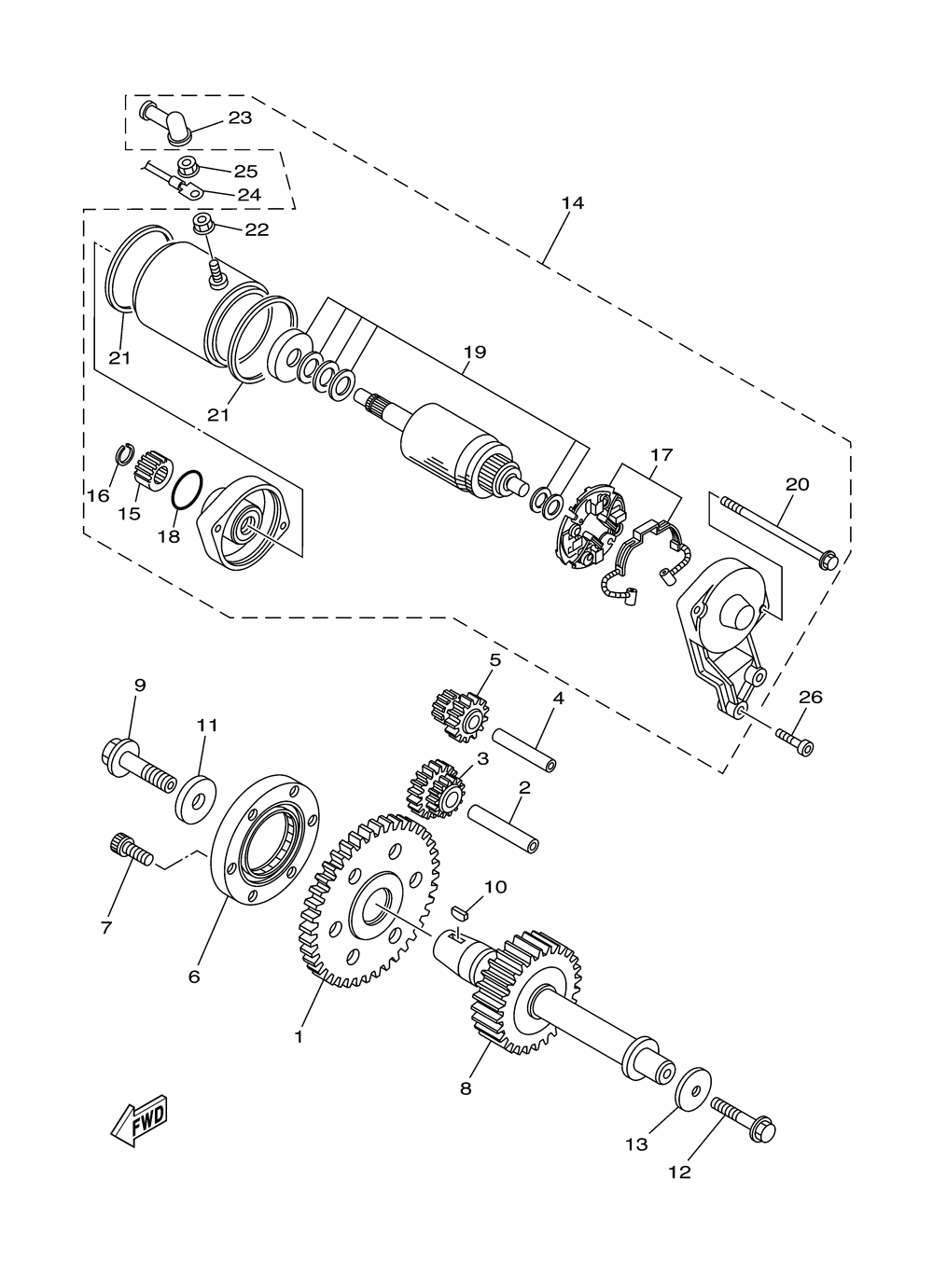

STARTER для Yamaha ROYAL STAR MIDNIGHT SILVERADO - 2006 года выпуска
-
№АртикулНазвание
-
14WM-15515-00-00 GEAR 3GEAR 3
-
24WM-15522-00-00 SHAFT 2SHAFT 2
-
34WM-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
44WM-15521-00-00 SHAFT 1SHAFT 1
-
54WM-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
64WM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
790110-08015-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
85VN-15659-00-00 SHAFTSHAFT
-
990105-12584-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1090280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190201-12008-00 WASHER, PLATEWASHER, PLATE
-
1295817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
134WM-15653-00-00 WASHERWASHER
-
145MB-81890-11-00 MOTOR ASSYMOTOR ASSY
-
151VJ-15511-00-00 ...GEAR, STARTING MOTOR...GEAR, STARTING MOTOR
-
1693440-11024-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
173AJ-81801-00-00 ...BRUSH SET...BRUSH SET
-
181FK-81847-00-00 ...O-RING...O-RING
-
194WM-81809-00-00 ...WASHER KIT...WASHER KIT
-
203AJ-81826-00-00 ...BOLT...BOLT
-
2111H-81844-00-00 ...GASKET...GASKET
-
224XV-8182A-00-00 ...NUT...NUT
-
234G0-81871-00-00 ...CAP...CAP
-
244WM-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
254XV-8182A-00-00 NUTNUT
-
2691314-06025-00 BOLTBOLT
