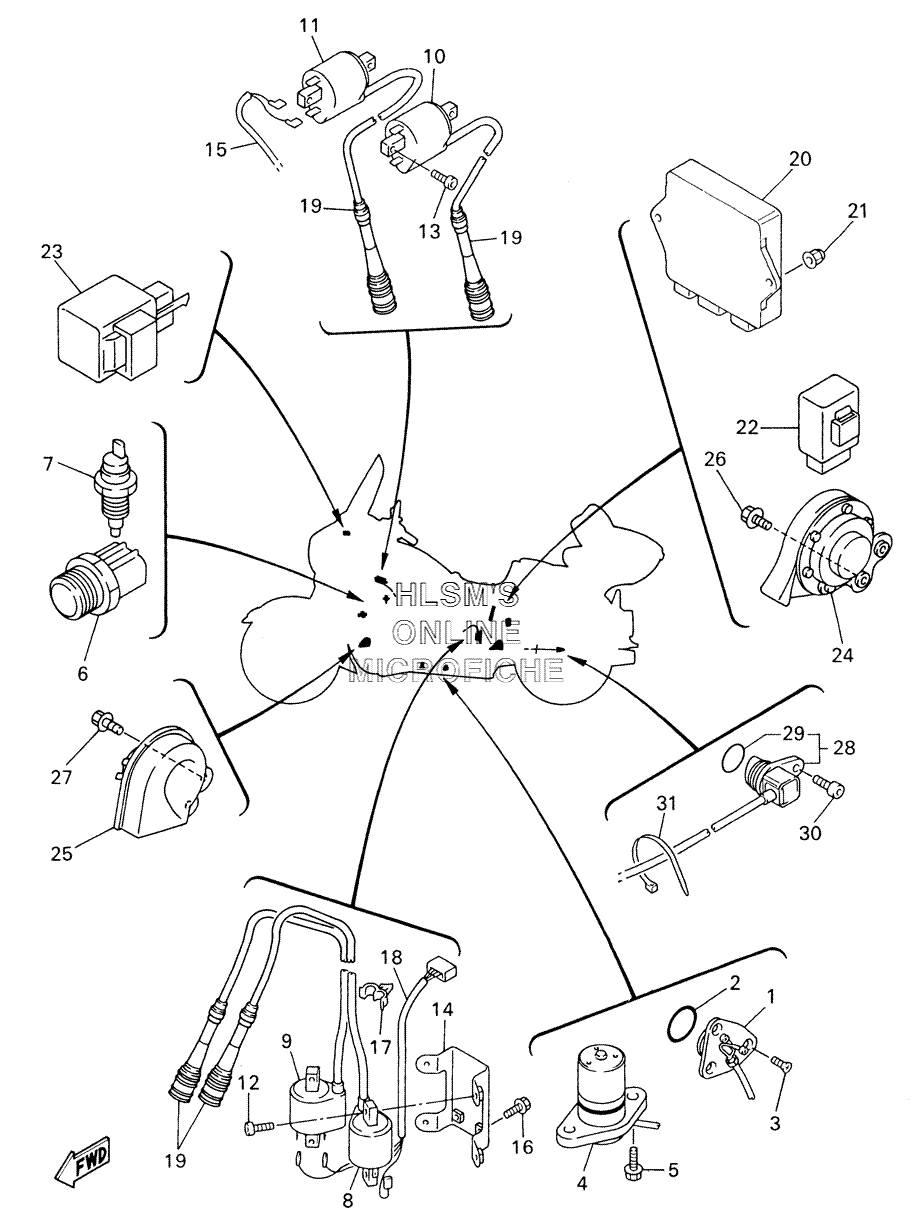

ELECTRICAL 2 для Yamaha ROYAL STAR MIDNIGHT VENTURE - 2006 года выпуска
![](/wa-data/public/shop/sheme/yamaha/streetbike/79c0f57b-caea-455b-8dd9-36195a4edbc9.gif)
-
№АртикулНазвание
-
14WY-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
293210-29196-00 O-RINGO-RING
-
390149-05321-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
44XY-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
595027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
65EB-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
73YX-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
84XY-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
94XY-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
104XY-82320-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
114XY-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1291317-05016-00 BOLTBOLT
-
1397007-05016-00 BOLTBOLT
-
144NK-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
154XY-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1695807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1790464-09130-00 CLAMPCLAMP
-
184NK-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
194XY-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
204XY-82305-00-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
2190176-06065-00 NUT, CROWNNUT, CROWN
-
224NK-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
233GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
244NK-83371-00-00 HORNHORN
-
254XY-83371-00-00 HORNHORN
-
2690119-06217-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2795807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
284NK-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
294NK-85075-00-00 ...O-RING...O-RING
-
3090109-081F0-00 BOLTBOLT
-
3190465-13275-00 CLAMPCLAMP
