SEAT для Yamaha ROYAL STAR SILVERADO - 2006 года выпуска
-

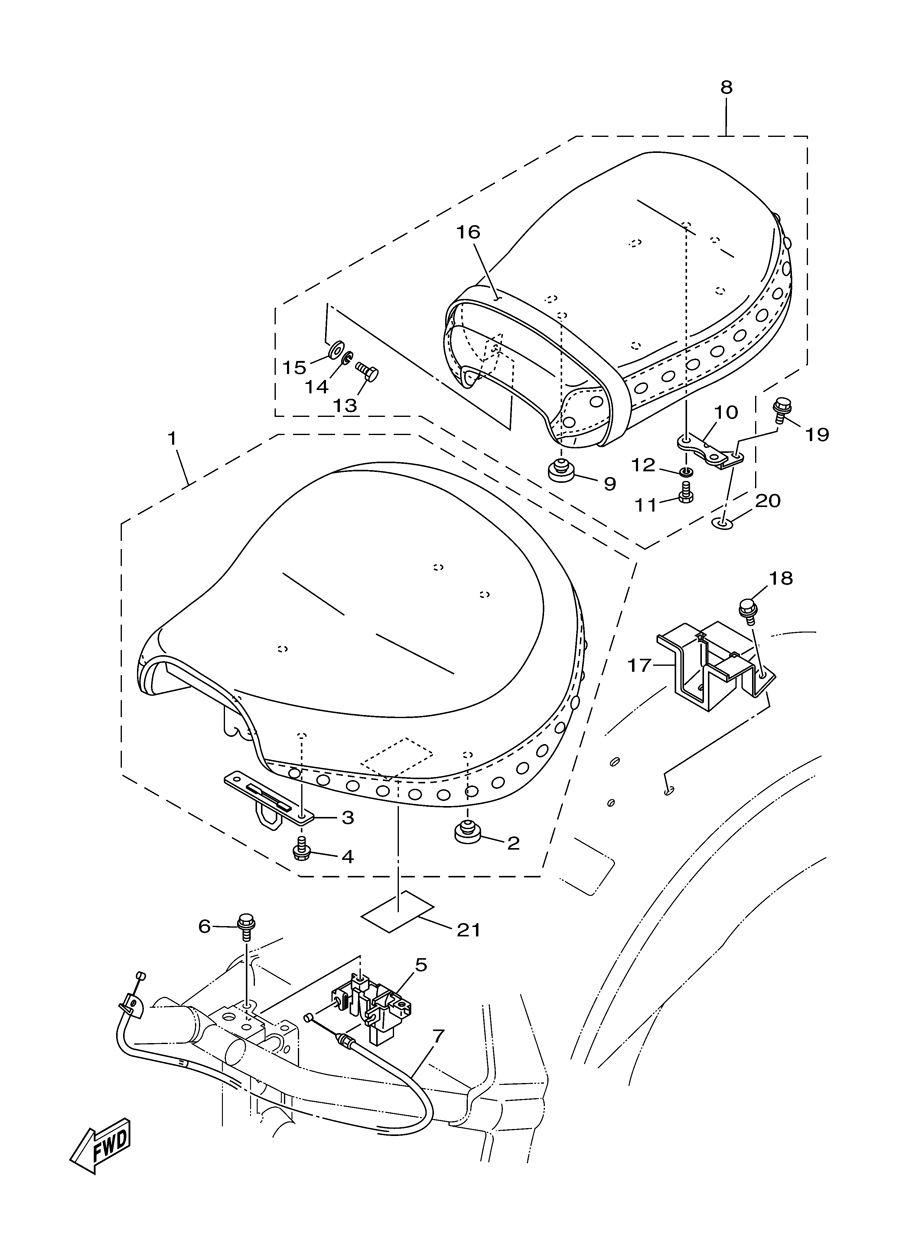

№АртикулНазвание
-
15VR-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
222W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
34WM-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
495807-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
54JP-24780-03-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
690105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
74WM-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
85VR-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
922W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
104NK-2471A-00-00 ...STAY, SEAT...STAY, SEAT
-
1197007-06016-00 ...BOLT...BOLT
-
1292907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1397007-06020-00 ...BOLT...BOLT
-
1492907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1590201-06380-00 ...WASHER, PLATE...WASHER, PLATE
-
164WM-24734-00-00 ...BAND, SEAT...BAND, SEAT
-
174WM-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1890105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
1995024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
205VN-24736-00-00 WASHERWASHER
-
214NK-21668-A0-00 LABEL, TIRELABEL, TIRE
