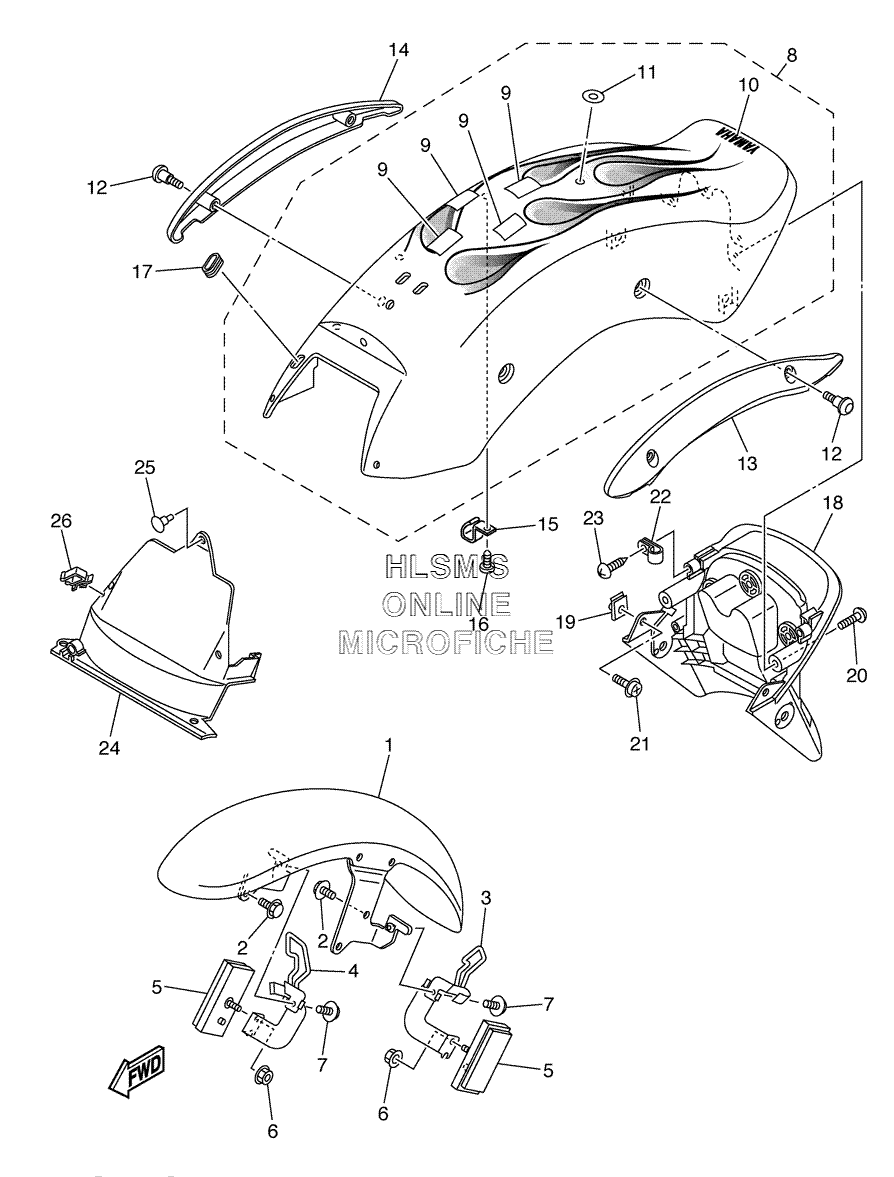

FENDER - FRONT / REAR для Yamaha V STAR 1100 CUSTOM W/FLAMES - 2006 года выпуска
-
№АртикулНазвание
-
15EL-21510-01-PA FRONT FENDER COMP.FRONT FENDER COMP.
-
295027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35EL-21597-10-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
45EL-21598-10-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
511H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
695707-05500-00 NUT, FLANGENUT, FLANGE
-
795807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
85EL-Y2161-1D-P6 REAR FENDER COMP.REAR FENDER COMP.
-
93SP-21732-00-00 ...SEAL 1...SEAL 1
-
101D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
115VN-21735-00-00 ...SEAL 2...SEAL 2
-
1290111-08001-00 BOLTBOLT
-
135EL-2164F-00-00 STAY 1STAY 1
-
145EL-2164G-00-00 STAY 2STAY 2
-
1590461-06001-00 CLAMPCLAMP
-
1697707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1790480-01001-00 GROMMETGROMMET
-
185EL-2162R-00-00 FENDER 2FENDER 2
-
1990183-05024-00 NUT, SPRINGNUT, SPRING
-
2090154-05004-00 SCREW, BINDINGSCREW, BINDING
-
2190159-05083-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2290461-10135-00 CLAMPCLAMP
-
2397707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
245EL-21629-00-00 GUARD, MUDGUARD, MUD
-
2590269-07077-00 RIVETRIVET
-
2690464-16021-00 CLAMPCLAMP
