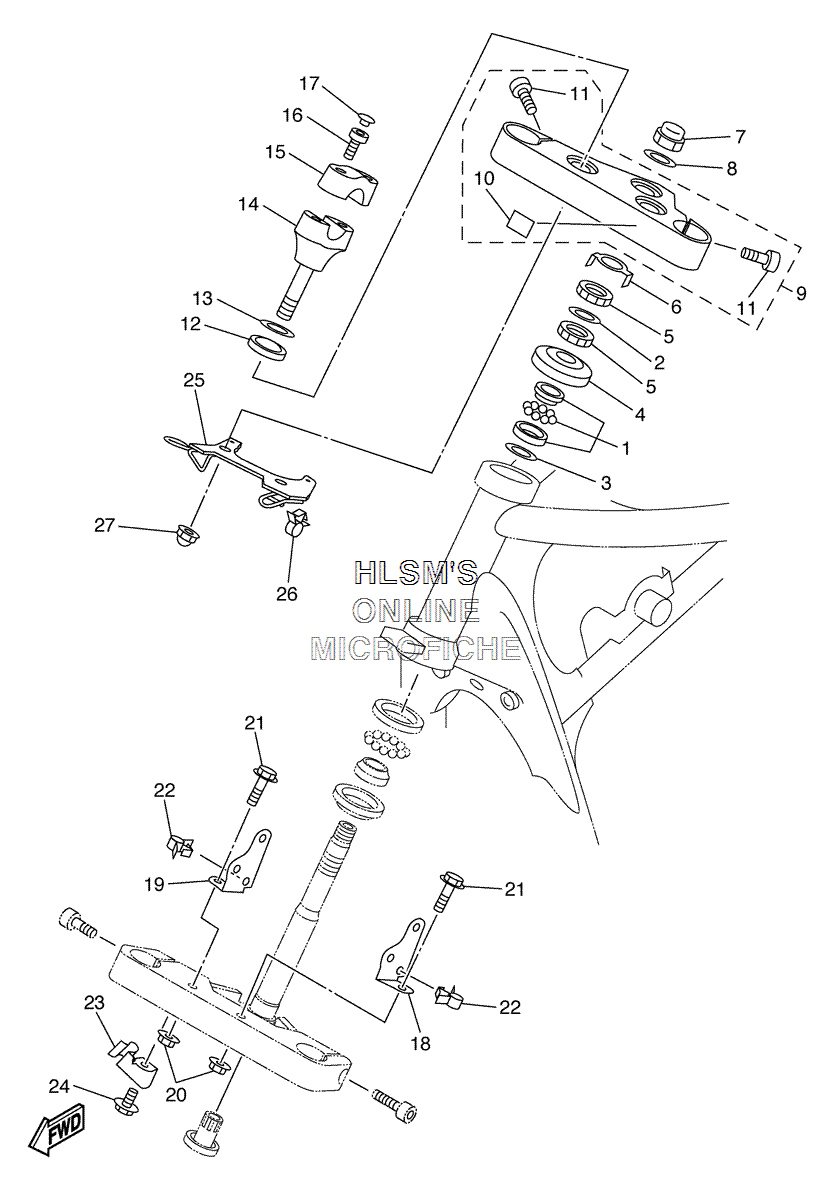

STEERING для Yamaha V STAR 650 CUSTOM [ XVS65V/C] (3B64/3B65) - 2006 года выпуска
-
№АртикулНазвание
-
193399-99931-00 BEARING, SPECIALBEARING, SPECIAL
-
290202-26142-00 WASHER, PLATEWASHER, PLATE
-
390202-24190-00 WASHER, PLATEWASHER, PLATE
-
41W1-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
590179-25033-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
626H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
790176-22081-00 NUT, CROWNNUT, CROWN
-
890201-220T0-00 WASHER, PLATEWASHER, PLATE
-
94VR-Y2343-60-00 CROWN, HANDLECROWN, HANDLE
-
102AL-84553-00-00 ...DAMPER...DAMPER
-
1191314-08030-00 ...BOLT...BOLT
-
123DM-23445-00-00 DAMPERDAMPER
-
1390201-14220-00 WASHER, PLATEWASHER, PLATE
-
144VR-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
154VR-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1691314-08025-00 BOLTBOLT
-
1790338-08163-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
184TR-23175-01-00 BRACKET, HEADLIGHT STAY 1BRACKET, HEADLIGHT STAY 1
-
194TR-23176-01-00 BRACKET, HEADLIGHT STAY 2BRACKET, HEADLIGHT STAY 2
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
2195024-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2290464-15157-00 CLAMPCLAMP
-
234TR-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2495027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
255BN-23389-10-00 GUIDE, CABLEGUIDE, CABLE
-
2690464-18246-00 CLAMPCLAMP
-
2790176-12052-00 NUT, CROWNNUT, CROWN
