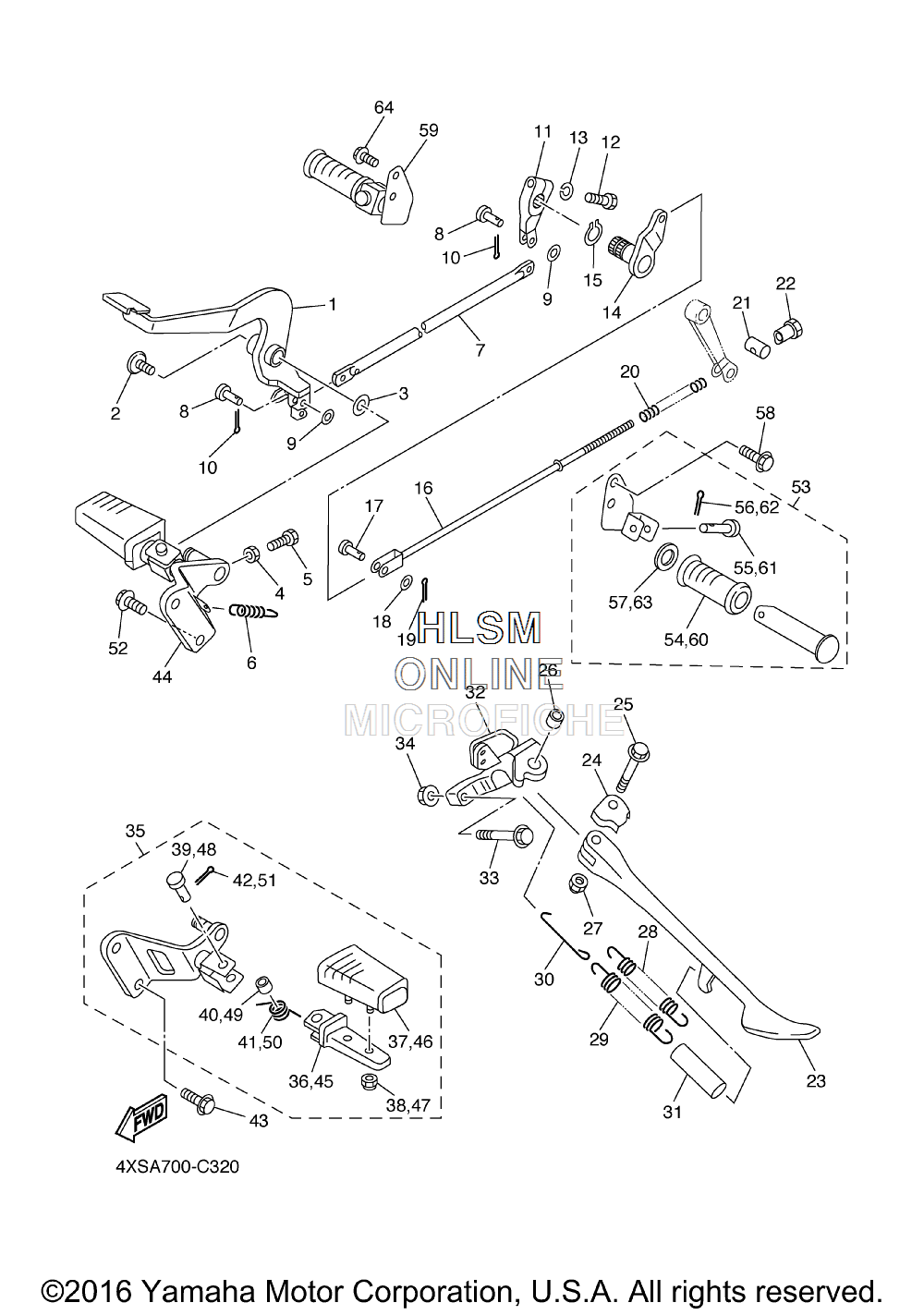

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 650 MIDNIGHT CUSTOM [ XVS65VM/CM] (5FBV/5FBW) - 2006 года выпуска
-
№АртикулНазвание
-
15KP-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290110-06249-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390206-14086-00 WASHER, WAVEWASHER, WAVE
-
495307-06700-00 NUTNUT
-
590101-06534-00 BOLTBOLT
-
690506-20193-00 SPRING, TENSIONSPRING, TENSION
-
75KP-27247-00-00 ROD 1ROD 1
-
890240-06108-00 PIN, CLEVISPIN, CLEVIS
-
990201-062P7-00 WASHER, PLATEWASHER, PLATE
-
1091401-20012-00 PIN, COTTERPIN, COTTER
-
114TR-27243-00-00 BOSS, BRAKE PEDALBOSS, BRAKE PEDAL
-
1290109-06468-00 BOLTBOLT
-
1392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
144TR-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
1599009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
164TR-27231-00-00 ROD, BRAKEROD, BRAKE
-
1790240-06108-00 PIN, CLEVISPIN, CLEVIS
-
1890201-062P7-00 WASHER, PLATEWASHER, PLATE
-
1991401-20012-00 PIN, COTTERPIN, COTTER
-
2090501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2190249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
2290179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
234KU-27311-13-00 STAND, SIDESTAND, SIDE
-
245KP-27322-00-00 WASHERWASHER
-
2590105-102A6-00 BOLT, FLANGEBOLT, FLANGE
-
2690387-1003G-00 COLLARCOLLAR
-
2795607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2890506-23490-00 SPRING, TENSIONSPRING, TENSION
-
2990506-29507-00 SPRING, TENSIONSPRING, TENSION
-
305EL-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
3190445-16641-00 HOSE (L60)HOSE (L60)
-
325KP-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
3390105-10727-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
355KP-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
361NH-27451-00-00 ...FOOTREST...FOOTREST
-
374VR-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
3895607-06100-00 ...NUT, U...NUT, U
-
3990240-08084-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4090387-087K5-00 ...COLLAR...COLLAR
-
4190508-18696-00 ...SPRING, TORSION...SPRING, TORSION
-
4291401-25015-00 ...PIN, COTTER...PIN, COTTER
-
4390105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
445KP-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
451NH-27461-00-00 ...FOOTREST...FOOTREST
-
464VR-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
4795607-06100-00 ...NUT, U...NUT, U
-
4890240-08084-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4990387-087K5-00 ...COLLAR...COLLAR
-
5090508-18696-00 ...SPRING, TORSION...SPRING, TORSION
-
5191401-25015-00 ...PIN, COTTER...PIN, COTTER
-
5290105-102A3-00 BOLT, FLANGEBOLT, FLANGE
-
534TR-27430-10-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
54120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5591701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
5691401-20015-00 ...PIN, COTTER...PIN, COTTER
-
5790201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
5890105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
594TR-27440-10-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
60120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
6191701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
6291401-20015-00 ...PIN, COTTER...PIN, COTTER
-
6390201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
6490105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
