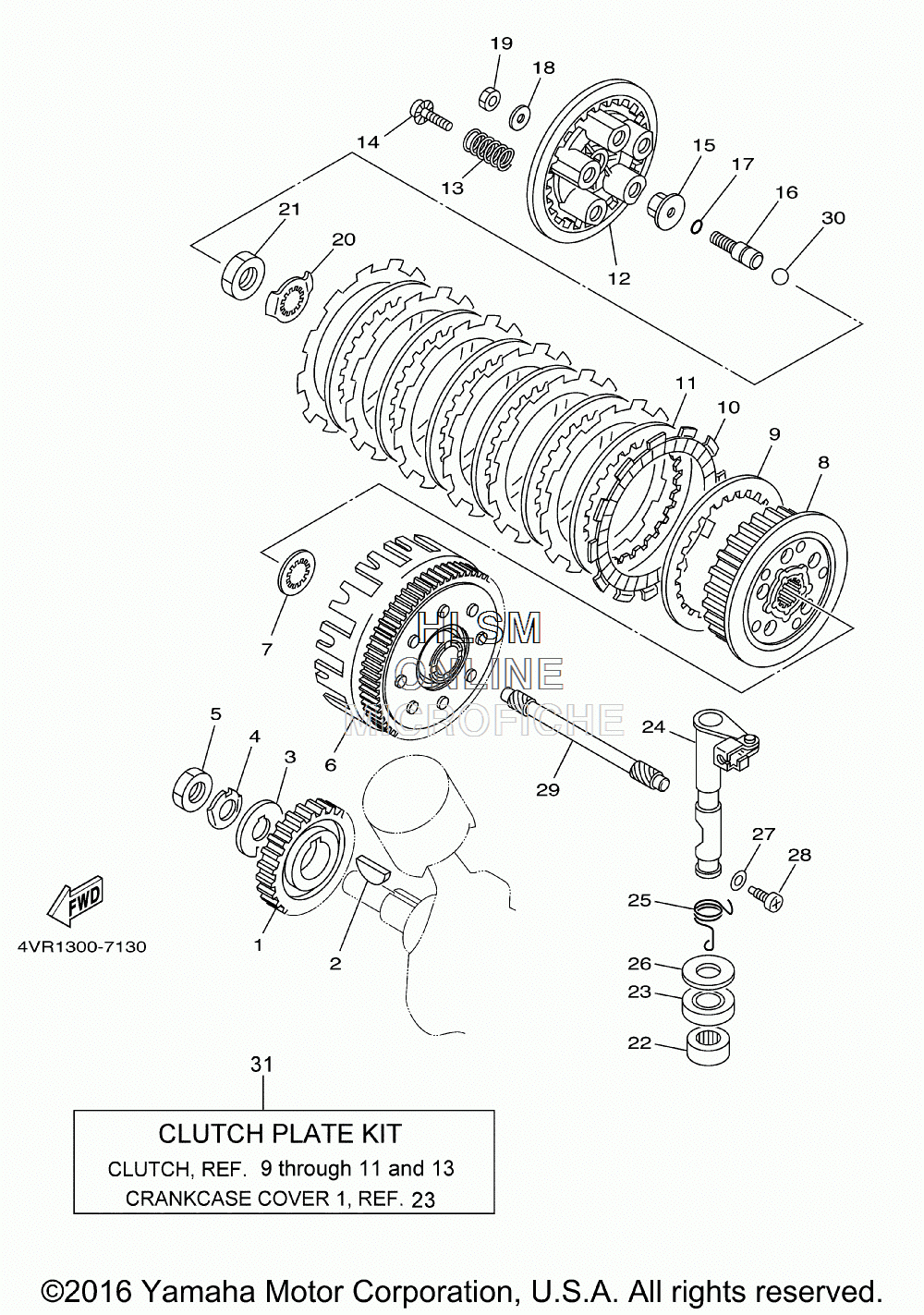

CLUTCH для Yamaha V STAR 650 SILVERADO [ XVS65ATV/C] (4C54/4C55) - 2006 года выпуска
-
№АртикулНазвание
-
14VR-16111-00-00 GEAR, PRIMARY DRIVE (38T)GEAR, PRIMARY DRIVE (38T)
-
290280-07036-00 KEY, WOODRUFFKEY, WOODRUFF
-
390214-16026-00 WASHER, CLAWWASHER, CLAW
-
490215-16157-00 WASHER, LOCKWASHER, LOCK
-
590170-16256-00 NUTNUT
-
65BN-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
722U-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
84VR-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
94X7-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
1022U-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
114X7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
1222U-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1390501-23738-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1490159-06016-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
151W1-16358-01-00 PLATE, PUSHPLATE, PUSH
-
164VR-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1793210-09525-00 O-RINGO-RING
-
1892907-06200-00 WASHERWASHER
-
1995307-06600-00 NUTNUT
-
2090215-22210-00 WASHER, LOCKWASHER, LOCK
-
2190170-20310-00 NUTNUT
-
2293315-21813-00 BEARING, CYL.#15BEARING, CYL.#15
-
2393102-18278-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2422U-16380-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2590508-16577-00 SPRING, TORSIONSPRING, TORSION
-
2690201-18262-00 WASHER, PLATEWASHER, PLATE
-
2790430-08119-00 GASKETGASKET
-
2890149-08067-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
2922U-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
3093515-32029-00 BALL 15/32BALL 15/32
