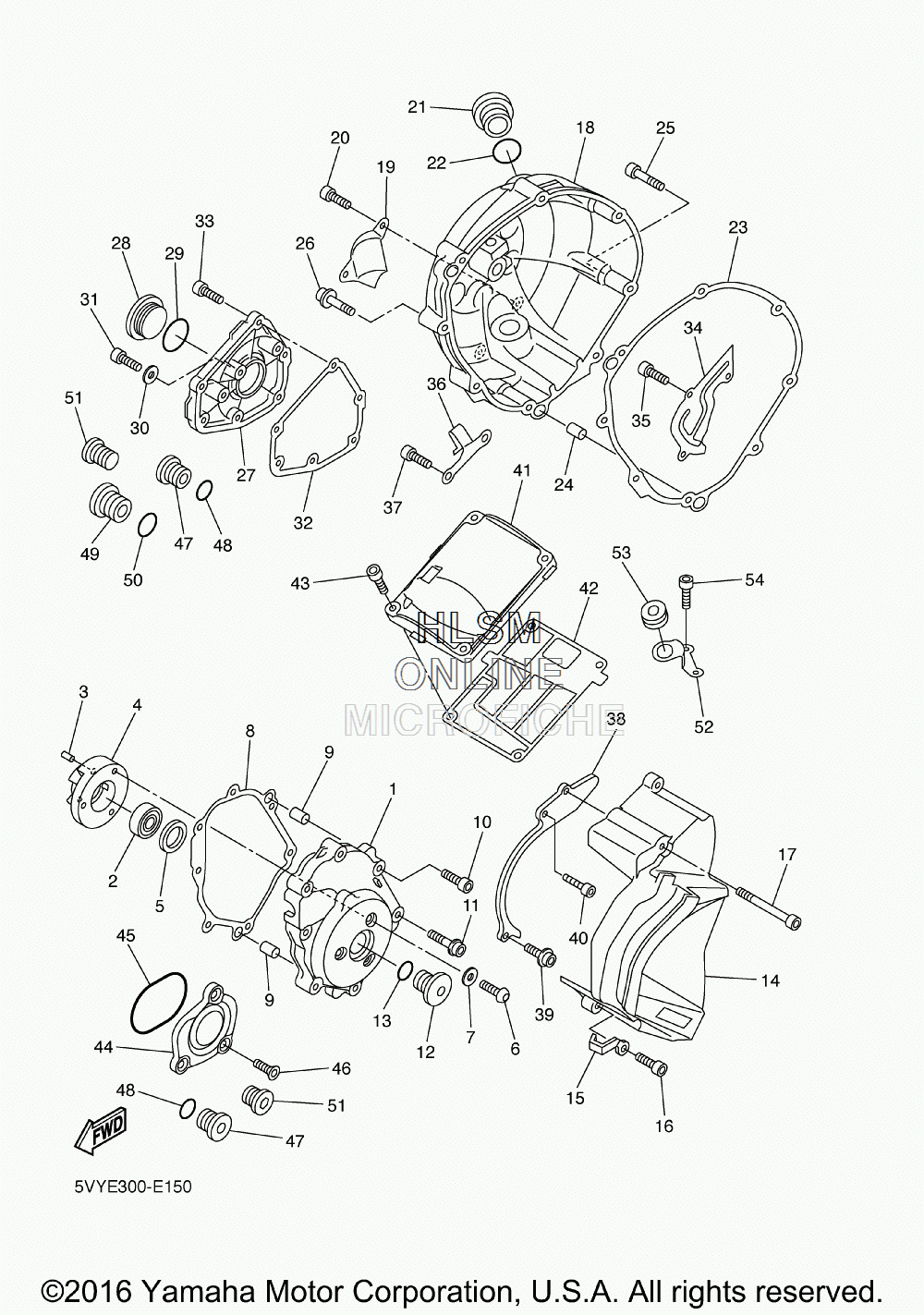

CRANKCASE COVER для Yamaha YZF-R1 - 2006 года выпуска
-
№АртикулНазвание
-
15VY-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293306-20124-00 BEARINGBEARING
-
393605-10108-00 PIN, DOWELPIN, DOWEL
-
45VY-15164-00-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
55VY-15542-00-00 COLLAR 2COLLAR 2
-
690149-06064-00 SCREWSCREW
-
790201-06431-00 WASHER, PLATEWASHER, PLATE
-
85VY-15451-10-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
999480-10018-00 PINPIN
-
1090109-06031-00 BOLTBOLT
-
1190110-08068-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
125PX-15189-00-00 PLUGPLUG
-
1393210-22382-00 O-RINGO-RING
-
145VY-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
1590462-08045-00 CLAMPCLAMP
-
1690110-06169-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790110-06177-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185VY-15421-10-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
195VY-15499-00-00 PROTECTOR, COVERPROTECTOR, COVER
-
2092014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
215VY-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2293210-27370-00 O-RINGO-RING
-
234CB-15461-00-00 GASKET, CRANKCASE COVER 2 (INCL. IN CLUTCH PLATE KIT)GASKET, CRANKCASE COVER 2 (INCL. IN CLUTCH PLATE KIT)
-
235VY-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2493610-20189-00 PIN, DOWELPIN, DOWEL
-
2590109-06016-00 BOLTBOLT
-
2690110-06112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
275VY-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
2890340-32004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2993210-32172-00 O-RINGO-RING
-
3090430-08143-00 GASKETGASKET
-
3192014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
325VY-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
3390109-06014-00 BOLTBOLT
-
345VY-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
3590110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
365VY-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
3791314-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
384B1-15113-00-00 PLATEPLATE
-
3990110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090110-06108-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
415VY-15413-00-00 COVERCOVER
-
425VY-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
4390109-06015-00 BOLTBOLT
-
445VY-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
4593210-57003-00 O-RINGO-RING
-
4690151-06022-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
4736Y-15189-00-00 PLUGPLUG
-
4893210-16325-00 O-RINGO-RING
-
494H7-15189-00-00 PLUGPLUG
-
5093210-22382-00 O-RINGO-RING
-
5190340-12003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
525VY-12443-10-00 STAYSTAY
-
5390480-13014-00 GROMMETGROMMET
-
5491380-06014-00 BOLTBOLT
