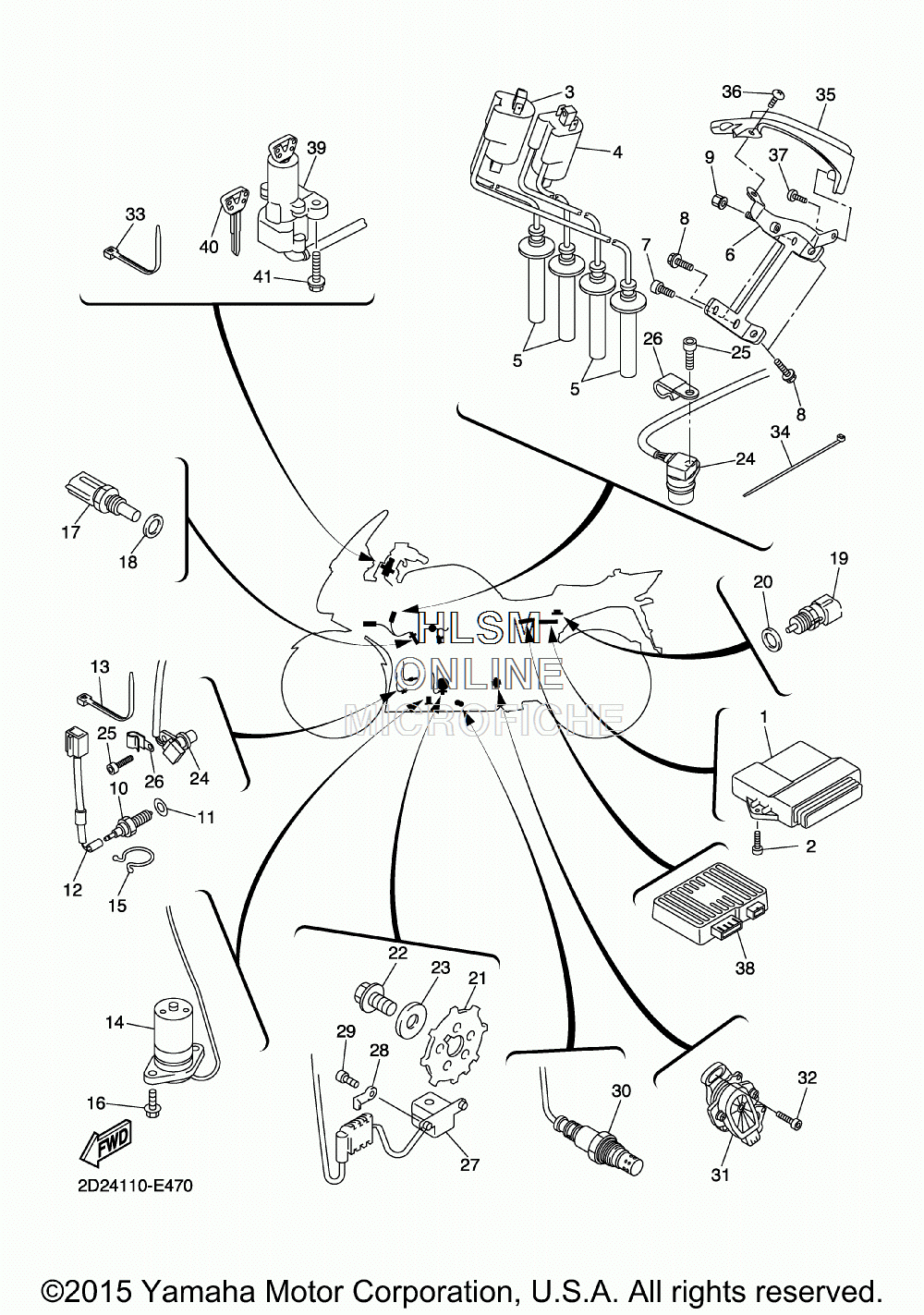

ELECTRICAL для Yamaha FJR1300AE (2D2A) [FJR13AEW] - 2007 года выпуска
-
№АртикулНазвание
-
13P6-8591A-22-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
297702-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
33P6-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
43P6-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
55JW-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
63P6-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
791312-06012-00 BOLTBOLT
-
895022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
990179-06500-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
103GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1190430-10148-00 GASKETGASKET
-
122D2-82541-00-00 WIRE, LEADWIRE, LEAD
-
1390465-10098-00 CLAMPCLAMP
-
143P6-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
1590464-14058-00 CLAMPCLAMP
-
1695022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
178CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1890201-12790-00 WASHER, PLATEWASHER, PLATE
-
195FL-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2090430-12202-00 GASKETGASKET
-
215JW-81673-10-00 ROTORROTOR
-
2290105-10153-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-107K6-00 WASHER, PLATEWASHER, PLATE
-
245FL-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
2590110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690462-08039-00 CLAMPCLAMP
-
275JW-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
2890465-08055-00 CLAMPCLAMP
-
2990110-05032-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
302D2-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
312D2-85897-00-00 SENSOR, CAM POSITION 2SENSOR, CAM POSITION 2
-
3290149-05020-00 SCREWSCREW
-
3390465-10098-00 CLAMPCLAMP
-
345Y9-12491-00-00 CLAMP 1CLAMP 1
-
353P6-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
3690154-05013-00 SCREW, BINDINGSCREW, BINDING
-
3797707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
382D2-86510-10-00 MOTOR CONTROL UNIT ASSYMOTOR CONTROL UNIT ASSY
-
395PS-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
404BH-82511-09-00 BLANK KEYBLANK KEY
-
4190109-080G5-00 BOLTBOLT
