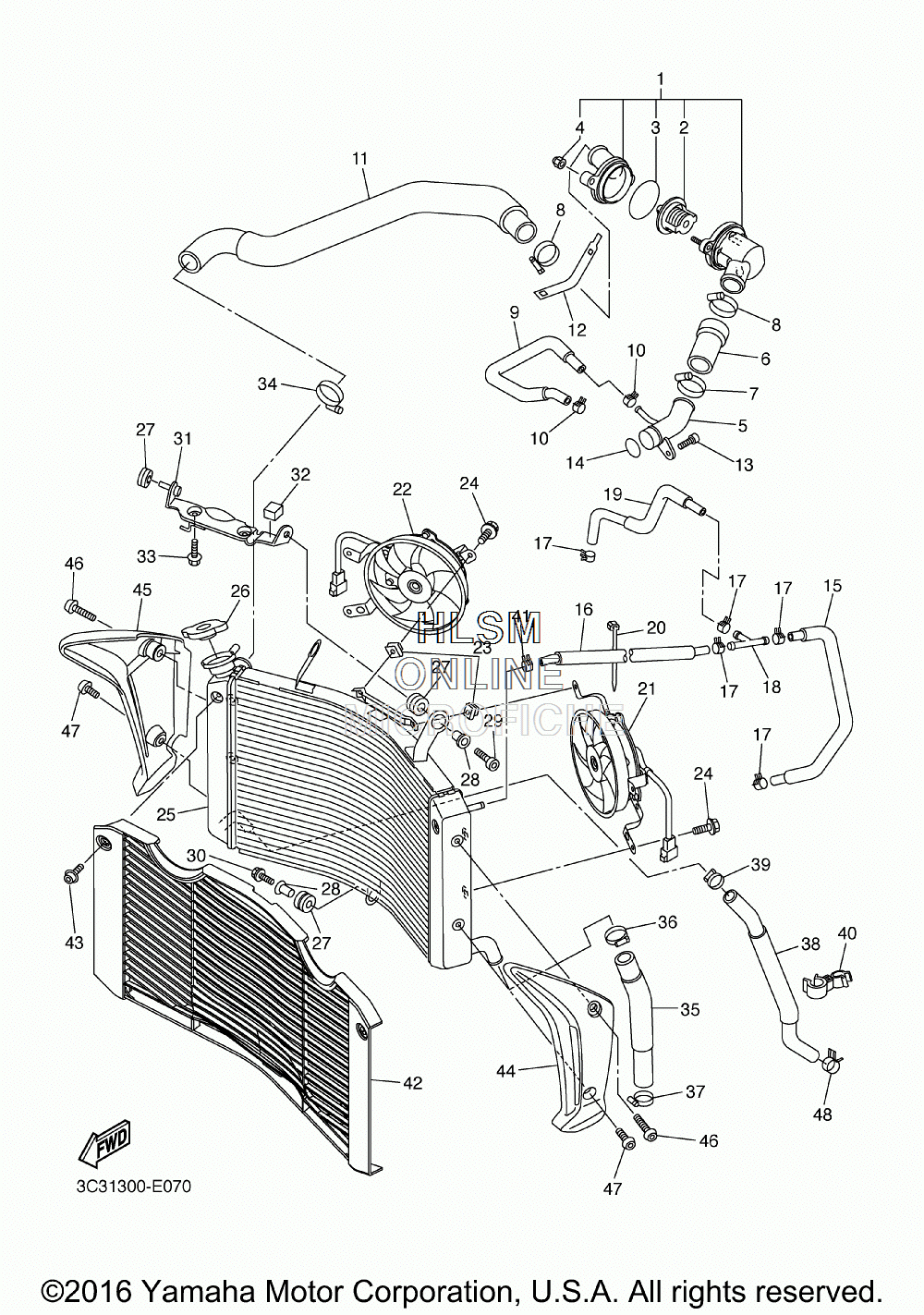

RADIATOR для Yamaha FZ1 (3C3E) [FZS10WC] - 2007 года выпуска
-
№АртикулНазвание
-
12D1-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
25LP-12411-00-00 ...THERMOSTAT...THERMOSTAT
-
393210-49046-00 ...O-RING...O-RING
-
490176-06014-00 ...NUT, CROWN...NUT, CROWN
-
55VY-12485-10-00 PIPE 5PIPE 5
-
65VY-12579-00-00 HOSE 4HOSE 4
-
790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
95VY-1243F-00-00 HOSE, 3HOSE, 3
-
1090467-11090-00 CLIPCLIP
-
112D1-12578-00-00 HOSE 3HOSE 3
-
125GV-1246A-00-00 COVER 1COVER 1
-
1390110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1493210-235A1-00 O-RINGO-RING
-
155VY-1243A-00-00 HOSE 1HOSE 1
-
162D1-1244G-00-00 HOSE, 4HOSE, 4
-
1790467-11090-00 CLIPCLIP
-
1890413-07023-00 WAY 3WAY 3
-
192D1-1243E-00-00 HOSE 2HOSE 2
-
2090464-13073-00 CLAMPCLAMP
-
212D1-12405-00-00 BLOWER ASSYBLOWER ASSY
-
222D1-12405-10-00 BLOWER ASSYBLOWER ASSY
-
231AA-12535-00-00 PLATEPLATE
-
242D1-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
252D1-12461-00-00 RADIATOR COMPRADIATOR COMP
-
2622W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
2790480-15363-00 GROMMETGROMMET
-
2890387-07391-00 COLLARCOLLAR
-
2990109-06015-00 BOLTBOLT
-
3090109-067E6-00 BOLTBOLT
-
312D1-12464-00-00 STAY, RADIATORSTAY, RADIATOR
-
322D1-2139U-00-00 DAMPER 2DAMPER 2
-
3395807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
352D1-12551-00-00 HOSE 7HOSE 7
-
3690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3790450-32001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
382D1-12589-00-00 HOSE 6HOSE 6
-
3990450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4090464-23002-00 CLAMPCLAMP
-
4190467-11090-00 CLIPCLIP
-
422D1-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
4390111-06031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
443C3-1240J-00-P0 RADIATOR COVER ASSY1 (MBL2)RADIATOR COVER ASSY1 (MBL2)
-
453C3-1240K-00-P0 RADIATOR COVER ASSY 2 (MBL2)RADIATOR COVER ASSY 2 (MBL2)
-
4690111-06080-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4790111-06079-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
4890467-200A0-00 CLIPCLIP
