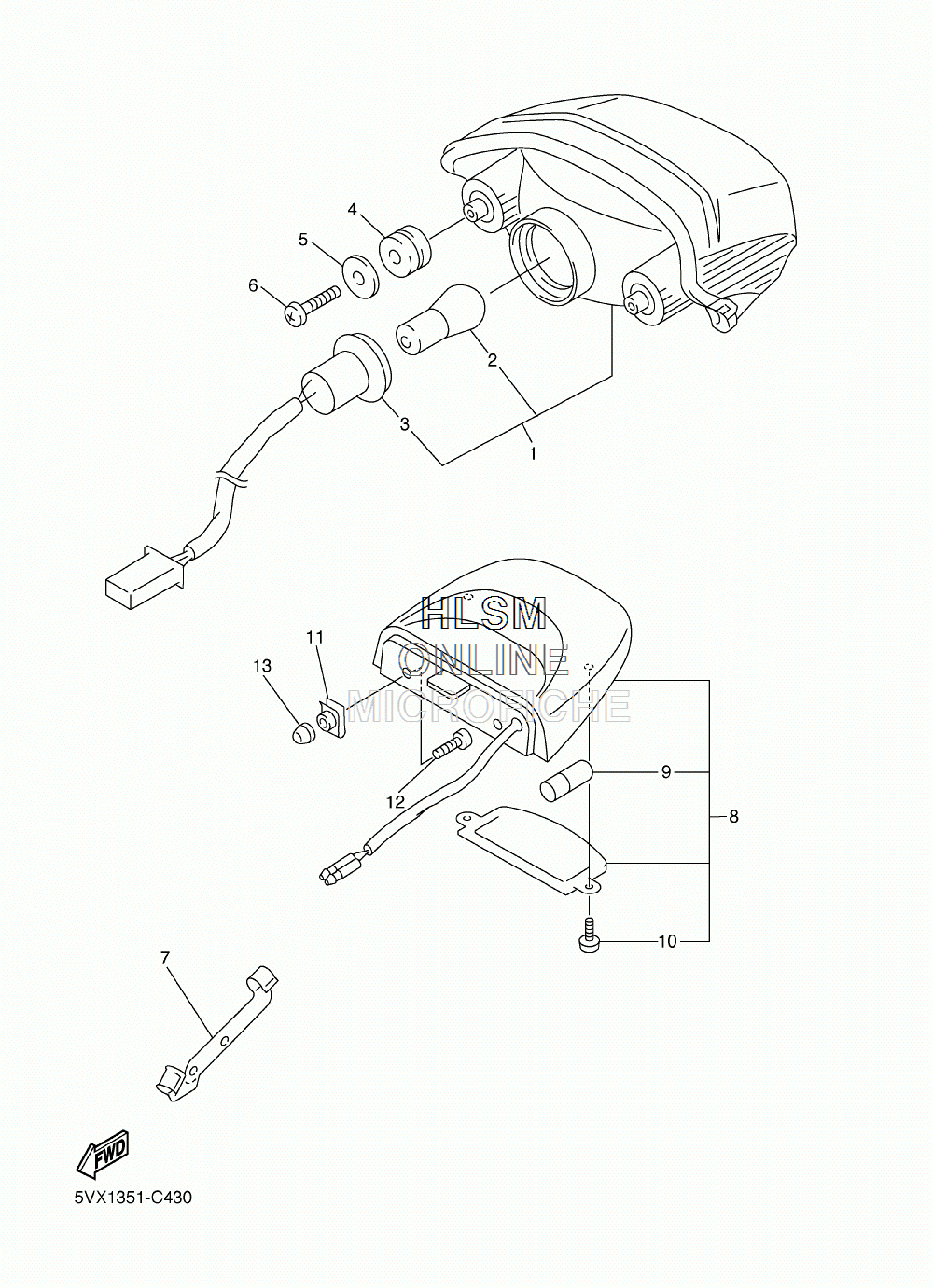

TAILLIGHT для Yamaha FZS6 (4S82) [FZS6W] - 2007 года выпуска
-
№АртикулНазвание
-
15VX-84710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
2137-84714-60-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
35VX-84735-00-00 ...CORD ASSY...CORD ASSY
-
490480-18276-00 GROMMETGROMMET
-
590201-06071-00 WASHER, PLATEWASHER, PLATE
-
697707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
75VX-21637-00-00 CLAMP, WIRECLAMP, WIRE
-
85VX-84745-01-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
94HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
1097706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1190183-05061-00 NUT, SPRINGNUT, SPRING
-
1298907-05014-00 SCREW, BINDSCREW, BIND
-
135VX-13569-01-00 PLUG, BLINDPLUG, BLIND
