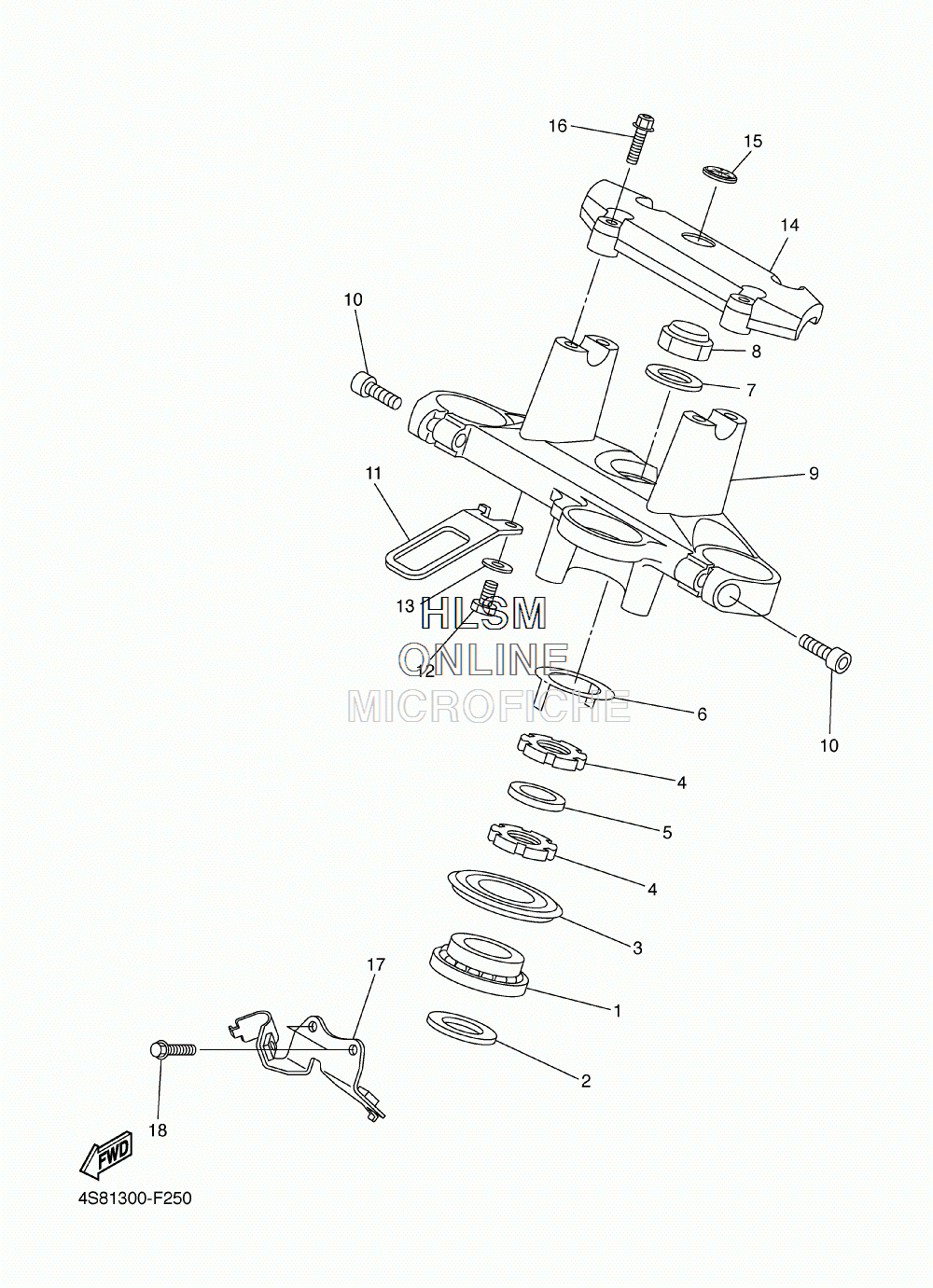

STEERING для Yamaha FZS6 (4S83) [FZS6WC] - 2007 года выпуска
-
№АртикулНазвание
-
193399-99931-00 BEARINGBEARING
-
290202-24190-00 WASHER, PLATEWASHER, PLATE
-
35VX-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
490179-25033-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
590202-26142-00 WASHER, PLATEWASHER, PLATE
-
626H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
790201-220T0-00 WASHER, PLATEWASHER, PLATE
-
890176-22081-00 NUT, CROWNNUT, CROWN
-
95VX-23435-30-00 CROWN, HANDLECROWN, HANDLE
-
1091314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
115VX-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
1297007-06016-00 BOLTBOLT
-
1392907-06600-00 WASHER, PLATEWASHER, PLATE
-
144S8-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
154XV-2341B-00-00 EMBLEMEMBLEM
-
1695024-08035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
174P5-23377-00-00 BRACKET, HORNBRACKET, HORN
-
1895807-06012-00 BOLT, FLANGEBOLT, FLANGE
