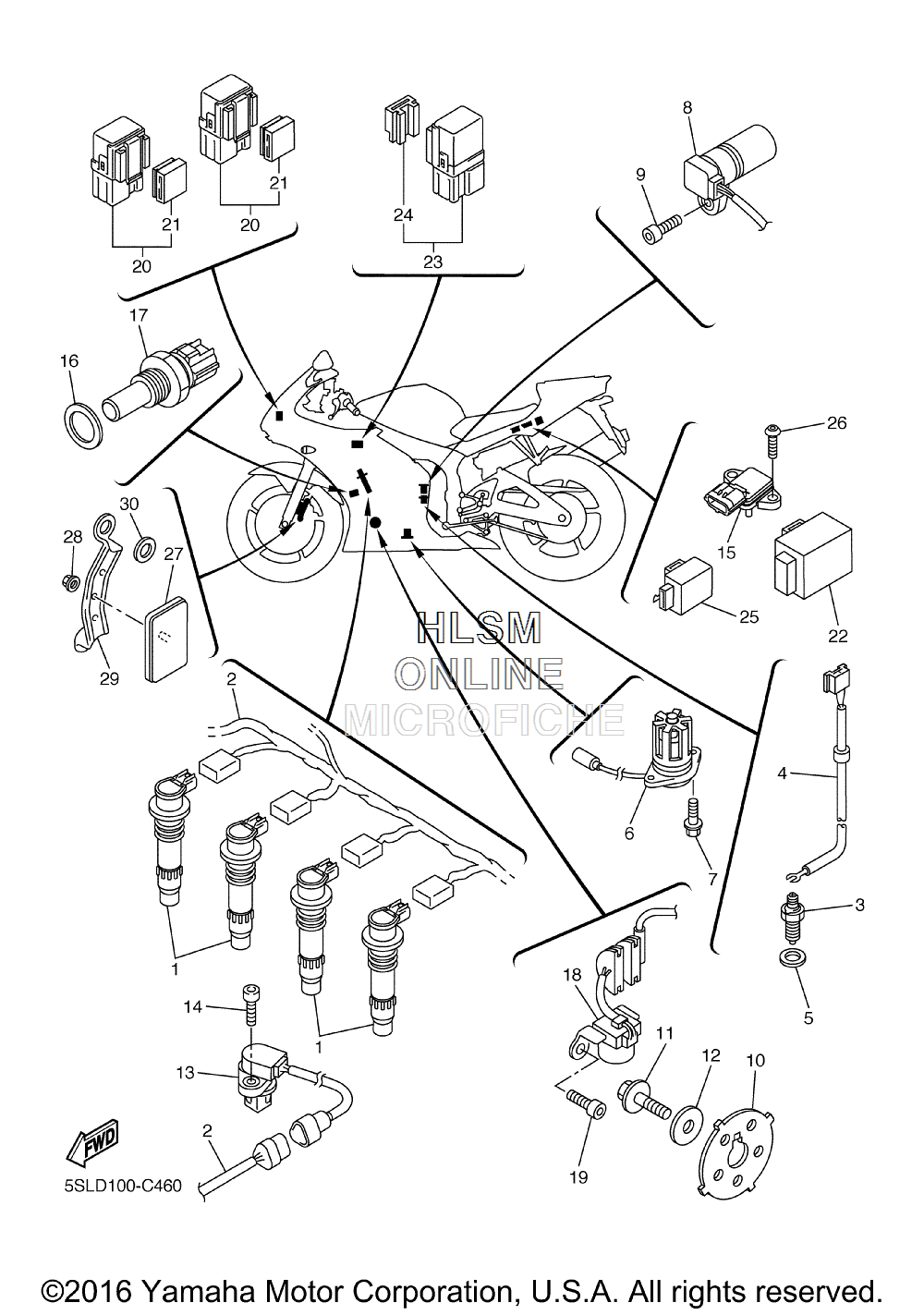

ELECTRICAL для Yamaha R6S [ YZFR6SW/C] (4P64/4P65) - 2007 года выпуска
-
№АртикулНазвание
-
15SL-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
25SL-82309-12-00 WIRE, SUB LEADWIRE, SUB LEAD
-
33GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
42C0-82541-00-00 WIRE, LEADWIRE, LEAD
-
590430-10148-00 GASKETGASKET
-
65SL-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
795027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
85EB-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
991317-06016-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
105SL-81673-00-00 ROTORROTOR
-
1190105-08386-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-08753-00 WASHER, PLATEWASHER, PLATE
-
135PW-85896-10-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1490110-06117-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155VX-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1690201-12790-00 WASHER, PLATEWASHER, PLATE
-
178CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
185SL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
1990110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
205JJ-81950-20-00 RELAY ASSY (5JJ-20)RELAY ASSY (5JJ-20)
-
215JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
225VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
235EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
245EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
254MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
2692017-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2720G-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
2895707-05500-00 NUT, FLANGENUT, FLANGE
-
295SL-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3090201-08759-00 WASHER, PLATEWASHER, PLATE
