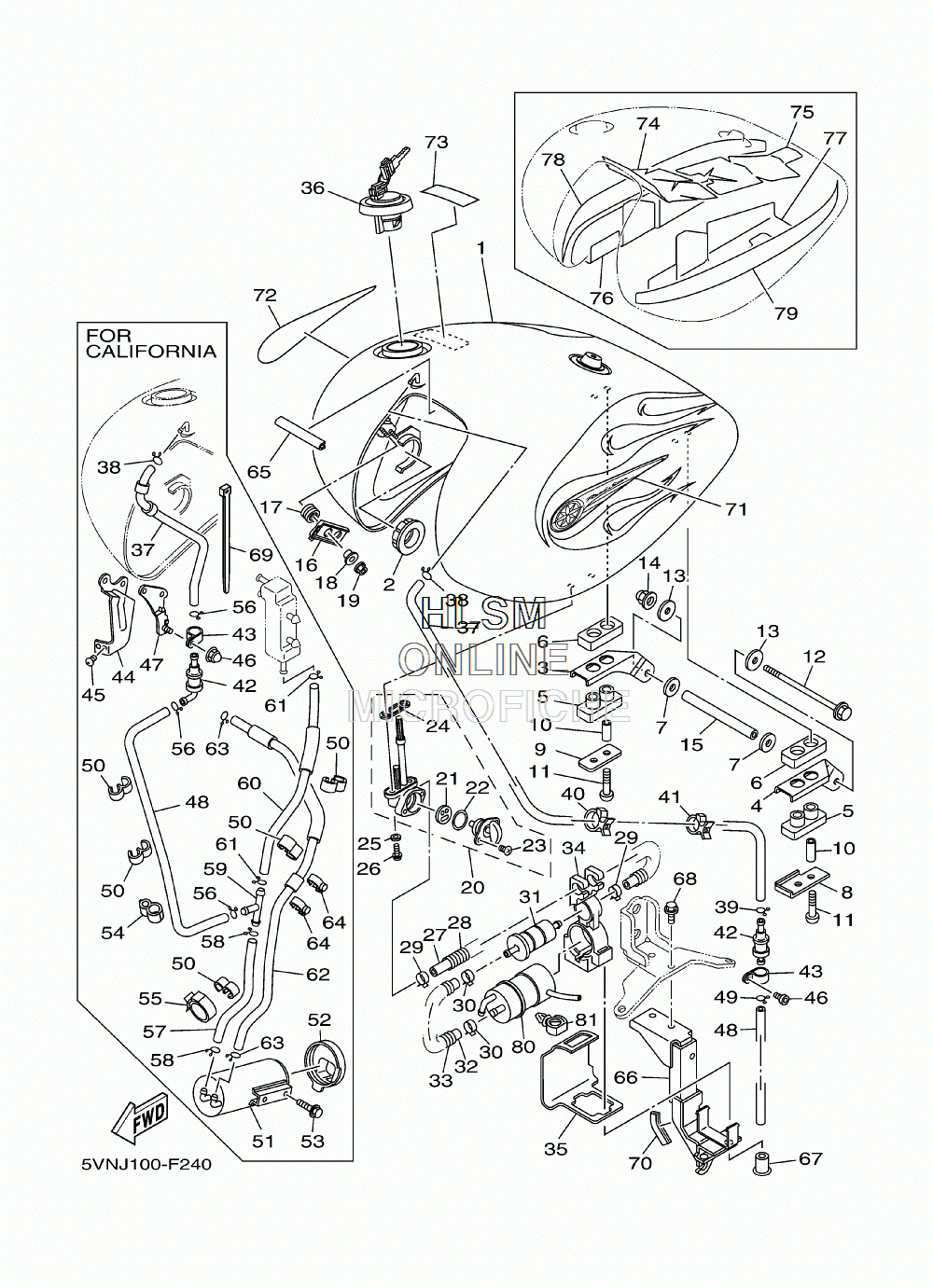

FUEL TANK для Yamaha ROAD STAR (5VNJ) [XV17AWWF] - 2007 года выпуска
-
№АртикулНазвание
-
14WM-Y2410-T1-X1 FUEL TANK COMP. (FOR SM1)FUEL TANK COMP. (FOR SM1)
-
22YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
35MB-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
45MB-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
55MB-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
65MB-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
75MB-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
85MB-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
92GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1090387-06062-00 COLLARCOLLAR
-
1192017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1295827-06140-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-064R0-00 WASHER, PLATEWASHER, PLATE
-
1490176-06055-00 NUT, CROWNNUT, CROWN
-
1590387-06061-00 COLLARCOLLAR
-
164WM-24291-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
174WM-24339-00-00 GROMMETGROMMET
-
1890387-050T5-00 COLLARCOLLAR
-
1995707-05500-00 NUT, FLANGENUT, FLANGE
-
204WM-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
213AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
223AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
2397801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
244X8-24512-00-00 ...O-RING...O-RING
-
2590202-05193-00 WASHER, PLATEWASHER, PLATE
-
2690149-06011-00 SCREWSCREW
-
275VN-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
284WM-24393-00-00 SPRINGSPRING
-
2990467-11044-00 CLIPCLIP
-
3090467-13083-00 CLIPCLIP
-
311FK-24560-10-00 FILTER ASSYFILTER ASSY
-
324WM-24312-00-00 PIPE 2PIPE 2
-
334WM-24394-00-00 SPRINGSPRING
-
344WM-24398-00-00 BAND 1BAND 1
-
354WM-24217-00-00 COVERCOVER
-
364NK-24602-11-00 CAP ASSYCAP ASSY
-
375VN-24321-00-00 PIPE 10 (EXCEPT CALIF) (5VNJ)PIPE 10 (EXCEPT CALIF) (5VNJ)
-
375VN-24321-10-00 PIPE 10 (CALIF ONLY) (5VNK)PIPE 10 (CALIF ONLY) (5VNK)
-
3890467-09002-00 CLIPCLIP
-
3990467-09006-00 CLIPCLIP
-
4090464-25217-00 CLAMPCLAMP
-
4190464-15192-00 CLAMPCLAMP
-
425PX-24180-00-00 ROLL OVER VALVE ASSY (EXCEPT CALIF) (5VNJ)ROLL OVER VALVE ASSY (EXCEPT CALIF) (5VNJ)
-
425RB-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY) (5VNK)ROLL OVER VALVE ASSY (CALIF ONLY) (5VNK)
-
4390461-15100-00 CLAMP (EXCEPT CALIF) (5VNJ)CLAMP (EXCEPT CALIF) (5VNJ)
-
4390461-15139-00 CLAMP (CALIF ONLY) (5VNK)CLAMP (CALIF ONLY) (5VNK)
-
444WM-2148X-00-00 BRACKET 4BRACKET 4
-
4598507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4698907-05012-00 SCREW, BIND (EXCEPT CALIF) (5VNJ)SCREW, BIND (EXCEPT CALIF) (5VNJ)
-
4690176-05054-00 NUT, CROWN (CALIF ONLY) (5VNK)NUT, CROWN (CALIF ONLY) (5VNK)
-
475VN-24662-00-00 STAYSTAY
-
4890445-112K5-00 HOSE (L355) (EXCEPT CALIF) (5VNJ)HOSE (L355) (EXCEPT CALIF) (5VNJ)
-
485VN-24322-00-00 PIPE 11 (CALIF ONLY) (5VNK)PIPE 11 (CALIF ONLY) (5VNK)
-
4990467-10041-00 CLIPCLIP
-
5090464-09M31-00 CLAMPCLAMP
-
514WM-24170-00-00 CANISTER ASSYCANISTER ASSY
-
524WM-2419E-00-00 COVER, CANISTERCOVER, CANISTER
-
5390105-06597-00 BOLT, FLANGEBOLT, FLANGE
-
5490464-10233-00 CLAMPCLAMP
-
5590464-20191-00 CLAMPCLAMP
-
5690467-09103-00 CLIPCLIP
-
575VN-24323-00-00 PIPE 12PIPE 12
-
5890467-09103-00 CLIPCLIP
-
5990413-07007-00 WAY 3WAY 3
-
605VN-24318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
6190467-09103-00 CLIPCLIP
-
625VN-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
6390467-09103-00 CLIPCLIP
-
6490464-11201-00 CLAMPCLAMP
-
654GY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
665VN-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
6790179-05271-00 NUTNUT
-
6895807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
695Y9-12491-00-00 CLAMP 1CLAMP 1
-
705VN-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
715VN-2416B-20-00 EMBLEMEMBLEM
-
725VN-2417B-20-00 EMBLEMEMBLEM
-
735GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
745VN-24145-00-00 DAMPER, SIDE COVER (CALIF ONLY) (5VNK)DAMPER, SIDE COVER (CALIF ONLY) (5VNK)
-
745VR-24145-00-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)
-
755VN-24145-10-00 DAMPER, SIDE COVER (CALIF ONLY) (5VNK)DAMPER, SIDE COVER (CALIF ONLY) (5VNK)
-
755VR-24145-10-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)
-
765VN-24145-20-00 DAMPER, SIDE COVER (CALIF ONLY) (5VNK)DAMPER, SIDE COVER (CALIF ONLY) (5VNK)
-
765VR-24145-20-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)
-
775VN-24145-30-00 DAMPER, SIDE COVER (CALIF ONLY) (5VNK)DAMPER, SIDE COVER (CALIF ONLY) (5VNK)
-
775VR-24145-30-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)
-
785VN-24145-40-00 DAMPER, SIDE COVER (CALIF ONLY) (5VNK)DAMPER, SIDE COVER (CALIF ONLY) (5VNK)
-
785VR-24145-40-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)
-
795VN-24145-50-00 DAMPER, SIDE COVER (CALIF ONLY) (5VNK)DAMPER, SIDE COVER (CALIF ONLY) (5VNK)
-
795VR-24145-50-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)DAMPER, SIDE COVER (EXCEPT CALIF) (5VNJ)
-
805VN-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
8190464-13249-00 CLAMPCLAMP
