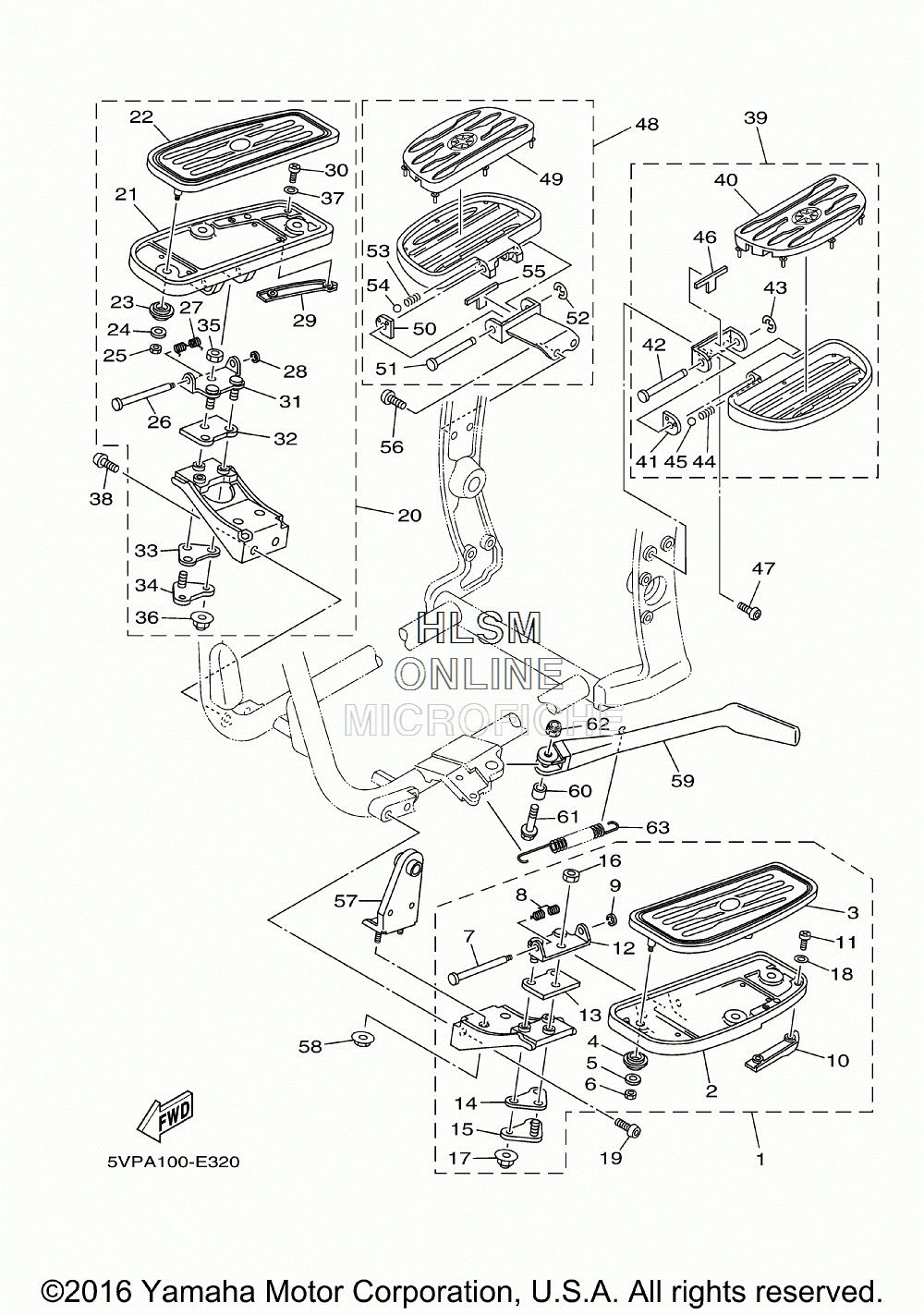

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha ROAD STAR MIDNIGHT SILVERADO (2D99) [XV17ATMW] - 2007 года выпуска
-
№АртикулНазвание
-
15VN-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24NK-27451-10-00 ...FOOTREST...FOOTREST
-
34WM-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
44WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
590201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
695607-05100-00 ...NUT, U...NUT, U
-
74NK-27427-00-00 ...SHAFT...SHAFT
-
84NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
999001-06600-00 ...CIRCLIP...CIRCLIP
-
104WM-27496-00-00 ...MOLE 1...MOLE 1
-
1190157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
125VN-27422-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
135VN-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
145VN-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
155VN-27123-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
1695317-06600-00 ...NUT...NUT
-
1790176-06007-00 ...NUT, CROWN...NUT, CROWN
-
1892907-05200-00 ...WASHER...WASHER
-
1992017-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
205VN-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
214NK-27461-10-00 ...FOOTREST...FOOTREST
-
224WM-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
234WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
2490201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
2595607-05100-00 ...NUT, U...NUT, U
-
264NK-27427-00-00 ...SHAFT...SHAFT
-
274NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
2899001-06600-00 ...CIRCLIP...CIRCLIP
-
294WM-27497-00-00 ...MOLE 2...MOLE 2
-
3090157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
315VN-27422-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
325VN-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
335VN-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
345VN-27123-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
3595317-06600-00 ...NUT...NUT
-
3690176-06007-00 ...NUT, CROWN...NUT, CROWN
-
3792907-05200-00 ...WASHER...WASHER
-
3892017-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
392D9-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
404YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
414YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
424YE-27427-00-00 ...SHAFT...SHAFT
-
4399001-06600-00 ...CIRCLIP...CIRCLIP
-
4490501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
4593501-04011-00 ...BALL...BALL
-
462D9-2743E-00-00 ...STOPPER...STOPPER
-
4790111-08031-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
482D9-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
494YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
504YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
514YE-27427-00-00 ...SHAFT...SHAFT
-
5299001-06600-00 ...CIRCLIP...CIRCLIP
-
5390501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
5493501-04011-00 ...BALL...BALL
-
552D9-2743E-00-00 ...STOPPER...STOPPER
-
5690111-08031-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
575VN-27443-00-00 BRACKET 3BRACKET 3
-
5895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
594WM-27311-00-00 STAND, SIDESTAND, SIDE
-
6090387-1007K-00 COLLARCOLLAR
-
6190105-10778-00 BOLT, FLANGEBOLT, FLANGE
-
6290185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6390506-29358-00 SPRING, TENSIONSPRING, TENSION
