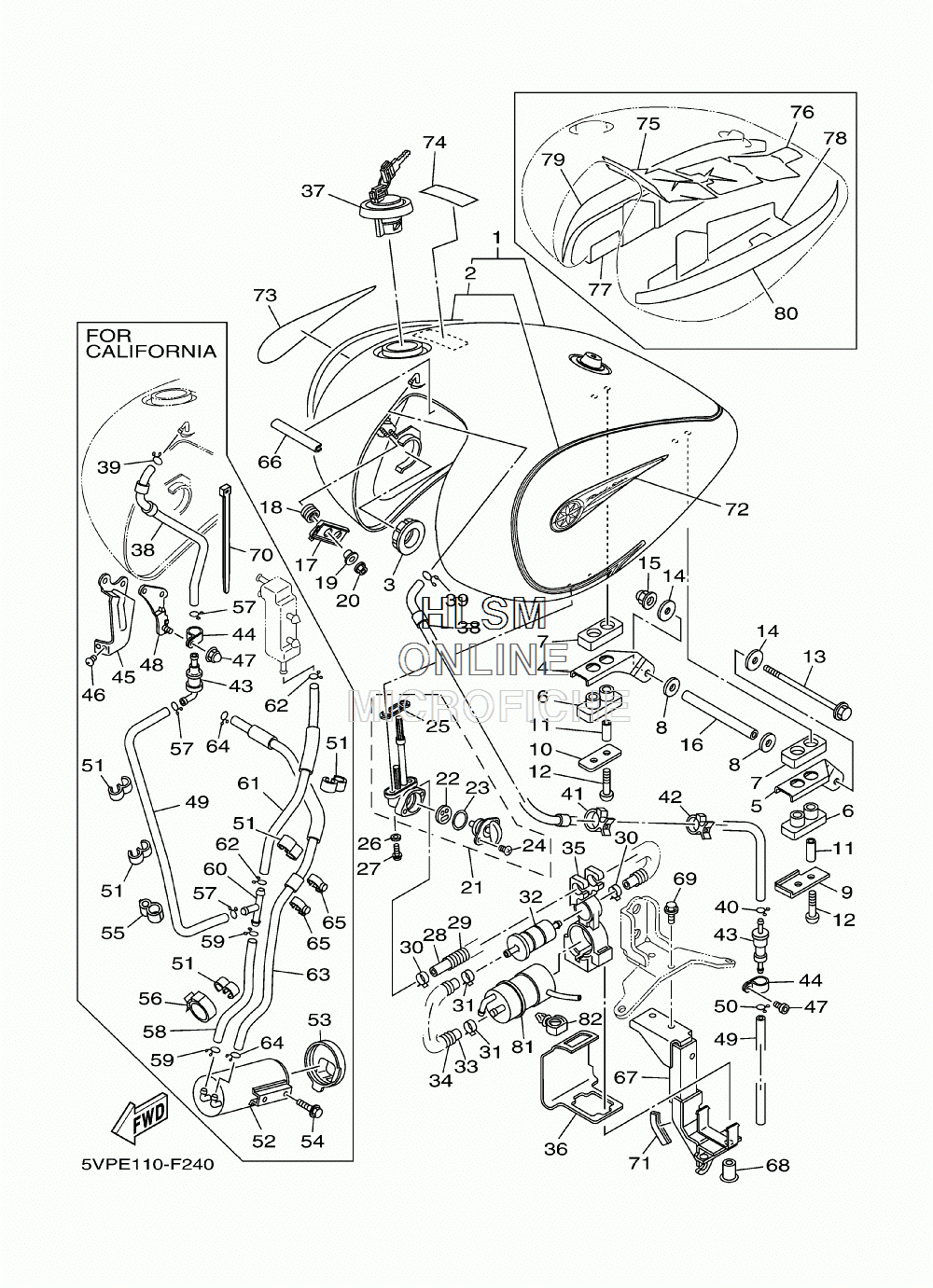

FUEL TANK для Yamaha ROAD STAR SILVERADO (5VPE) [XV17ATW] - 2007 года выпуска
-
№АртикулНазвание
-
14WM-Y2410-M0-03 FUEL TANK COMP. (DPBMU/S3)FUEL TANK COMP. (DPBMU/S3)
-
25VP-24240-00-00 ...GRAPHIC SET...GRAPHIC SET
-
32YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
45MB-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
55MB-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
65MB-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
75MB-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
85MB-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
95MB-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
102GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1190387-06062-00 COLLARCOLLAR
-
1292017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1395827-06140-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-064R0-00 WASHER, PLATEWASHER, PLATE
-
1590176-06055-00 NUT, CROWNNUT, CROWN
-
1690387-06061-00 COLLARCOLLAR
-
174WM-24291-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
184WM-24339-00-00 GROMMETGROMMET
-
1990387-050T5-00 COLLARCOLLAR
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
-
214WM-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
223AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
233AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
2497801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
254X8-24512-00-00 ...O-RING...O-RING
-
2690202-05193-00 WASHER, PLATEWASHER, PLATE
-
2790149-06011-00 SCREWSCREW
-
285VN-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
294WM-24393-00-00 SPRINGSPRING
-
3090467-11044-00 CLIPCLIP
-
3190467-13083-00 CLIPCLIP
-
321FK-24560-10-00 FILTER ASSYFILTER ASSY
-
334WM-24312-00-00 PIPE 2PIPE 2
-
344WM-24394-00-00 SPRINGSPRING
-
354WM-24398-00-00 BAND 1BAND 1
-
364WM-24217-00-00 COVERCOVER
-
374NK-24602-11-00 CAP ASSYCAP ASSY
-
385VN-24321-00-00 PIPE 10 (EXCEPT CALIF) (5VPE)PIPE 10 (EXCEPT CALIF) (5VPE)
-
385VN-24321-10-00 PIPE 10 (CALIF ONLY) (5VPF)PIPE 10 (CALIF ONLY) (5VPF)
-
3990467-09002-00 CLIPCLIP
-
4090467-09006-00 CLIPCLIP
-
4190464-25217-00 CLAMPCLAMP
-
4290464-15192-00 CLAMPCLAMP
-
435PX-24180-00-00 ROLL OVER VALVE ASSY (EXCEPT CALIF) (5VPE)ROLL OVER VALVE ASSY (EXCEPT CALIF) (5VPE)
-
435RB-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY) (5VPF)ROLL OVER VALVE ASSY (CALIF ONLY) (5VPF)
-
4490461-15100-00 CLAMP (EXCEPT CALIF) (5VPE)CLAMP (EXCEPT CALIF) (5VPE)
-
4490461-15139-00 CLAMP (CALIF ONLY) (5VPF)CLAMP (CALIF ONLY) (5VPF)
-
454WM-2148X-00-00 BRACKET 4BRACKET 4
-
4698507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4798907-05012-00 SCREW, BIND (EXCEPT CALIF) (5VPE)SCREW, BIND (EXCEPT CALIF) (5VPE)
-
4790176-05054-00 NUT, CROWN (CALIF ONLY) (5VPF)NUT, CROWN (CALIF ONLY) (5VPF)
-
485VN-24662-00-00 STAYSTAY
-
4990445-112K5-00 HOSE (L355) (EXCEPT CALIF) (5VPE)HOSE (L355) (EXCEPT CALIF) (5VPE)
-
495VN-24322-00-00 PIPE 11 (CALIF ONLY) (5VPF)PIPE 11 (CALIF ONLY) (5VPF)
-
5090467-10041-00 CLIPCLIP
-
5190464-09M31-00 CLAMPCLAMP
-
524WM-24170-00-00 CANISTER ASSYCANISTER ASSY
-
534WM-2419E-00-00 COVER, CANISTERCOVER, CANISTER
-
5490105-06597-00 BOLT, FLANGEBOLT, FLANGE
-
5590464-10233-00 CLAMPCLAMP
-
5690464-20191-00 CLAMPCLAMP
-
5790467-09103-00 CLIPCLIP
-
585VN-24323-00-00 PIPE 12PIPE 12
-
5990467-09103-00 CLIPCLIP
-
6090413-07007-00 WAY 3WAY 3
-
615VN-24318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
6290467-09103-00 CLIPCLIP
-
635VN-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
6490467-09103-00 CLIPCLIP
-
6590464-11201-00 CLAMPCLAMP
-
664GY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
675VN-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
6890179-05271-00 NUTNUT
-
6995807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
705Y9-12491-00-00 CLAMP 1CLAMP 1
-
715VN-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
725VN-2416B-20-00 EMBLEMEMBLEM
-
735VN-2417B-20-00 EMBLEMEMBLEM
-
745GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
755VN-24145-00-00 DAMPER, SIDE COVER (CALIF ONLY) (5VPF)DAMPER, SIDE COVER (CALIF ONLY) (5VPF)
-
755VR-24145-00-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)
-
765VN-24145-10-00 DAMPER, SIDE COVER (CALIF ONLY) (5VPF)DAMPER, SIDE COVER (CALIF ONLY) (5VPF)
-
765VR-24145-10-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)
-
775VN-24145-20-00 DAMPER, SIDE COVER (CALIF ONLY) (5VPF)DAMPER, SIDE COVER (CALIF ONLY) (5VPF)
-
775VR-24145-20-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)
-
785VN-24145-30-00 DAMPER, SIDE COVER (CALIF ONLY) (5VPF)DAMPER, SIDE COVER (CALIF ONLY) (5VPF)
-
785VR-24145-30-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)
-
795VN-24145-40-00 DAMPER, SIDE COVER (CALIF ONLY) (5VPF)DAMPER, SIDE COVER (CALIF ONLY) (5VPF)
-
795VR-24145-40-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)
-
805VN-24145-50-00 DAMPER, SIDE COVER (CALIF ONLY) (5VPF)DAMPER, SIDE COVER (CALIF ONLY) (5VPF)
-
805VR-24145-50-00 DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)DAMPER, SIDE COVER (EXCEPT CALIF) (5VPE)
-
815VN-13907-00-00 FUEL PUMP COMP. (CALIF ONLY) (5VPF)FUEL PUMP COMP. (CALIF ONLY) (5VPF)
-
8290464-13249-00 CLAMPCLAMP
