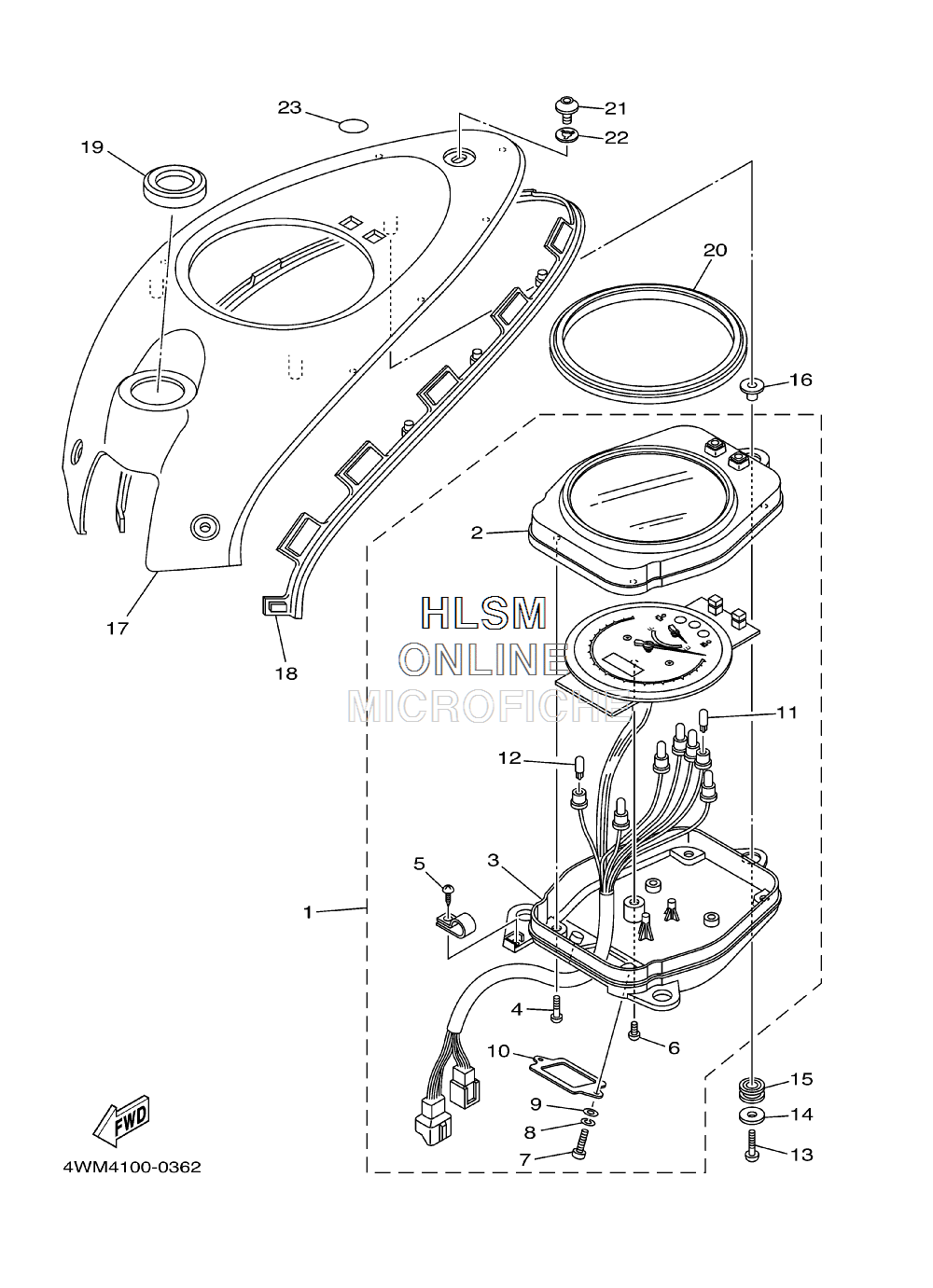

INSTRUMENT PANEL для Yamaha ROAD STAR SILVERADO (5VPF) [XV17ATWC] - 2007 года выпуска
-
№АртикулНазвание
-
15VN-83500-01-00 METER ASSY (MPH)METER ASSY (MPH)
-
25VN-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
34WM-8353F-01-00 ...CASE, METER LOWER...CASE, METER LOWER
-
497707-40016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
590164-04023-00 ...SCREW, TAPPING...SCREW, TAPPING
-
697707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
798507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892907-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
992907-03600-00 ...WASHER...WASHER
-
104WM-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
114WM-83517-10-00 ...BULB (T3.4 14V-80MA)...BULB (T3.4 14V-80MA)
-
125JA-83517-00-00 ...BULB (T3 14V-50MA)...BULB (T3 14V-50MA)
-
1390157-05112-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1490201-05036-00 WASHER, PLATEWASHER, PLATE
-
154WM-83513-00-00 DAMPERDAMPER
-
1690387-050T5-00 COLLARCOLLAR
-
174WM-83559-00-00 COVER, METERCOVER, METER
-
184WM-28345-01-00 MOLE 1MOLE 1
-
194WM-28346-00-00 MOLE 2MOLE 2
-
204WM-28347-00-00 MOLE 3MOLE 3
-
2190149-06264-00 SCREWSCREW
-
224U5-2176E-00-00 PLATEPLATE
-
234TR-2413B-00-00 EMBLEMEMBLEM
