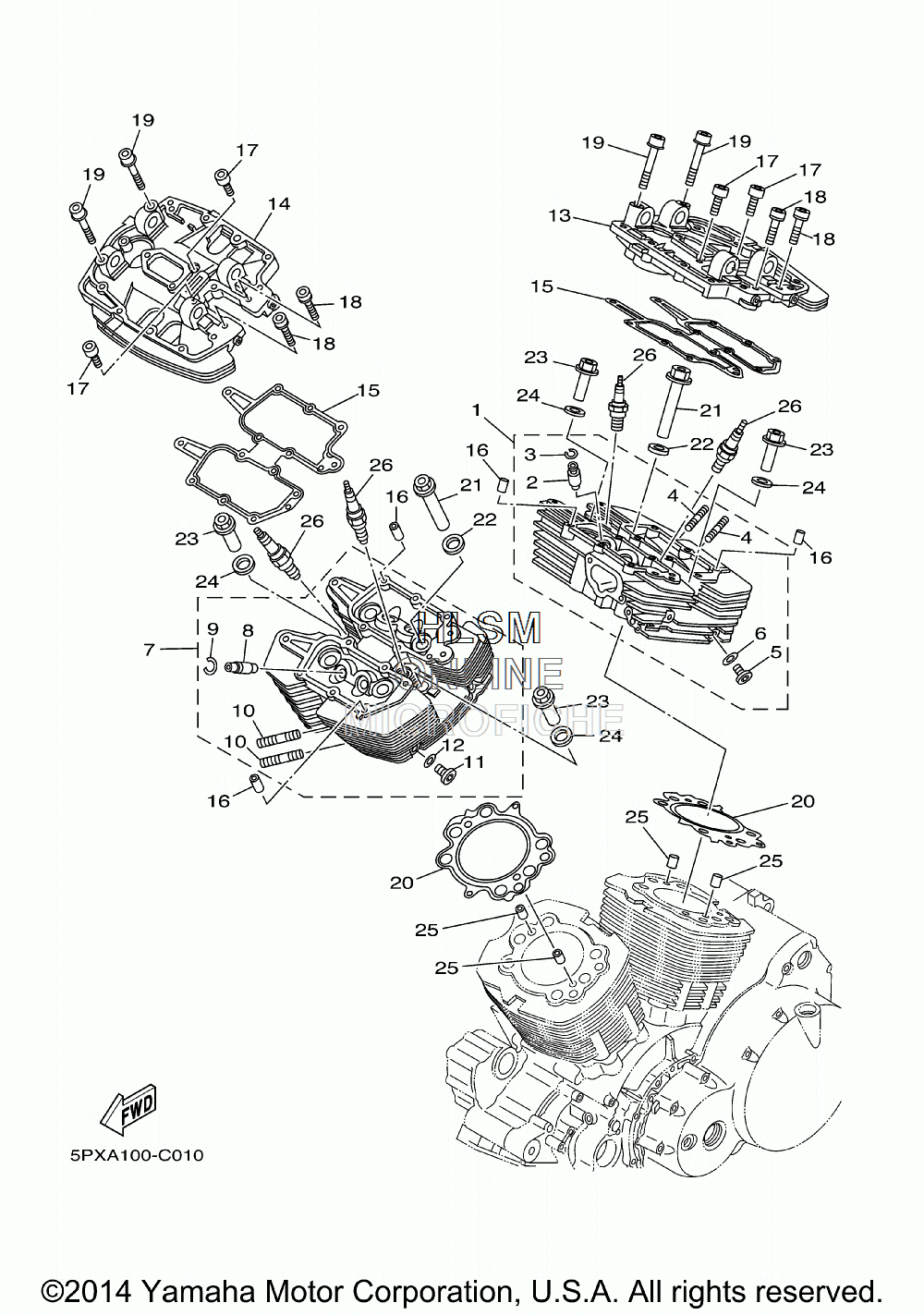

CYLINDER HEAD для Yamaha ROAD STAR WARRIOR (5PXK) [XV17PCW] - 2007 года выпуска
-
№АртикулНазвание
-
15PX-11101-00-00 CYLINDER HEAD ASSY 1CYLINDER HEAD ASSY 1
-
24WM-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
495617-08625-00 ...BOLT, STUD...BOLT, STUD
-
590340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
690201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
75PX-11101-10-00 CYLINDER HEAD ASSY 2CYLINDER HEAD ASSY 2
-
84WM-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
993440-12052-00 ...CIRCLIP...CIRCLIP
-
1095617-08625-00 ...BOLT, STUD...BOLT, STUD
-
1190340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1290201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
135PX-11131-01-00 HEAD, CYLINDER 3HEAD, CYLINDER 3
-
145PX-11141-01-00 HEAD, CYLINDER 4HEAD, CYLINDER 4
-
155PX-11182-00-00 GASKET, CYLINDER HEAD 2GASKET, CYLINDER HEAD 2
-
1691808-16023-00 PIN, DOWELPIN, DOWEL
-
1791317-06030-00 BOLTBOLT
-
1890109-061F7-00 BOLTBOLT
-
1990110-08033-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
205PX-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
215PX-11171-00-00 NUT, HOLDINGNUT, HOLDING
-
225VN-11175-00-00 WASHER, HOLDING 1WASHER, HOLDING 1
-
234WM-11172-00-00 NUT, HOLDINGNUT, HOLDING
-
244WM-11176-00-00 WASHER, HOLDINGWASHER, HOLDING
-
2590387-062T5-00 COLLARCOLLAR
-
26NGK-DPR7E-A9-00 PLUG, SPARK (NGK DPR7EA) (OPT) (UR)PLUG, SPARK (NGK DPR7EA) (OPT) (UR)
