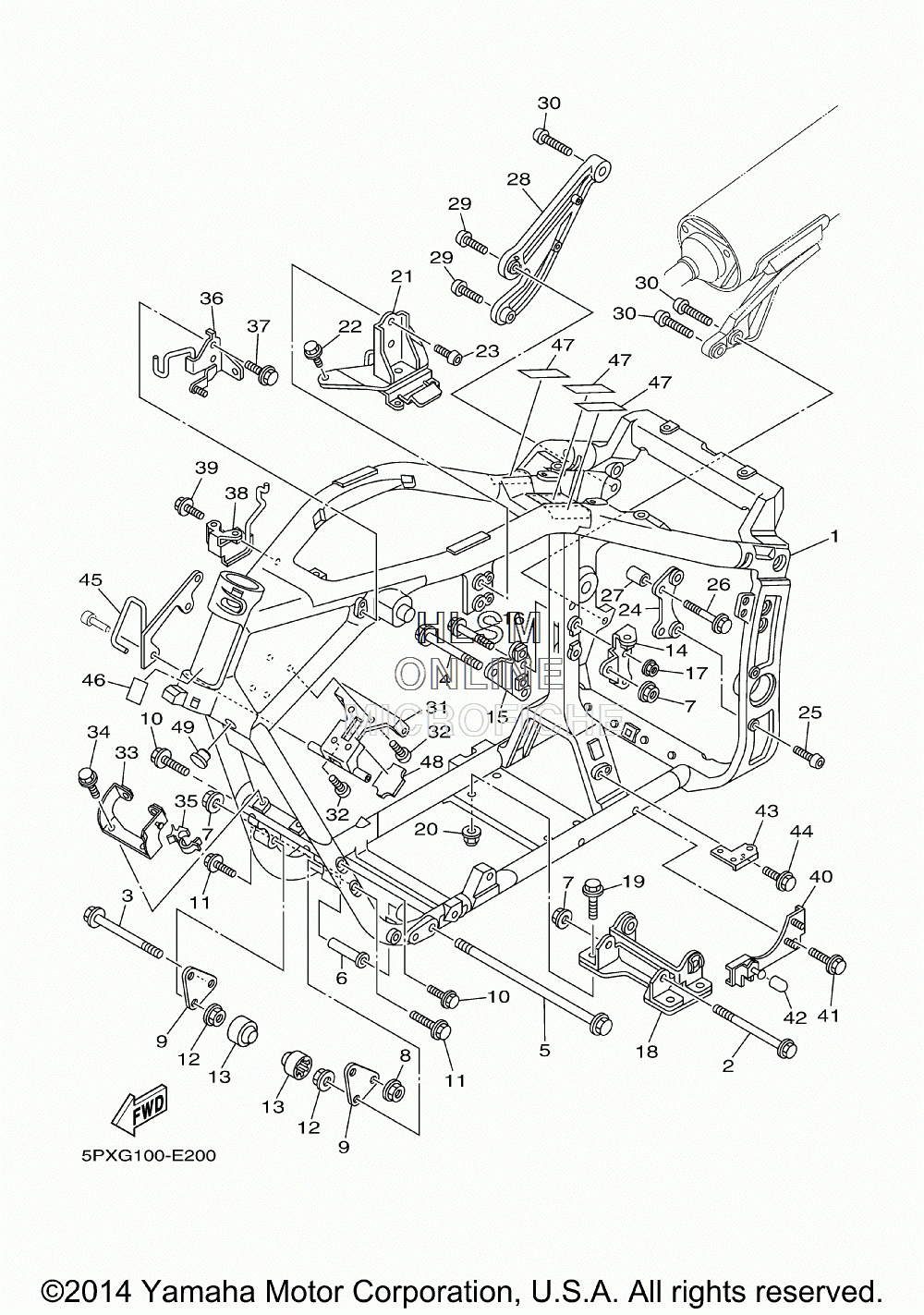

FRAME для Yamaha ROAD STAR WARRIOR (5PXL) [XV17PCWC] - 2007 года выпуска
-
№АртикулНазвание
-
15PX-21110-10-00 FRAME COMP.FRAME COMP.
-
290105-12208-00 BOLT, FLANGEBOLT, FLANGE
-
390105-12016-00 BOLT, FLANGEBOLT, FLANGE
-
490105-12309-00 BOLT, FLANGEBOLT, FLANGE
-
590105-126A6-00 BOLT, FLANGEBOLT, FLANGE
-
65PX-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
94WM-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1090105-10049-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
135YU-2143A-00-00 CAPCAP
-
145PX-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
155PX-21316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
1690105-10170-00 BOLT, FLANGEBOLT, FLANGE
-
1795607-10200-00 NUT, U FLANGENUT, U FLANGE
-
185PX-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1995817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
2095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
215PX-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2295827-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2390111-10003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
245PX-2137F-00-00 STAY 1STAY 1
-
2590111-10009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2690105-10049-00 BOLT, FLANGEBOLT, FLANGE
-
2790387-10013-00 COLLARCOLLAR
-
285PX-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
2990111-10006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3090157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
315PX-21359-01-00 BRACKET, COILBRACKET, COIL
-
3291317-06025-00 BOLTBOLT
-
335PX-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
3490105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3590464-20191-00 CLAMPCLAMP
-
365PX-21597-11-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
3790105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
385PX-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
3990105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
405PX-21343-00-00 BRACKET, HORNBRACKET, HORN
-
4190105-060A0-00 BOLT, FLANGEBOLT, FLANGE
-
423VR-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
435PX-21453-00-00 BRACKET, SWITCHBRACKET, SWITCH
-
4495027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
455PX-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
465PX-21268-00-00 SEALSEAL
-
475PX-21269-00-00 SEALSEAL
-
485PX-21266-00-00 SHEET 1SHEET 1
-
4990338-16148-00 PLUGPLUG
