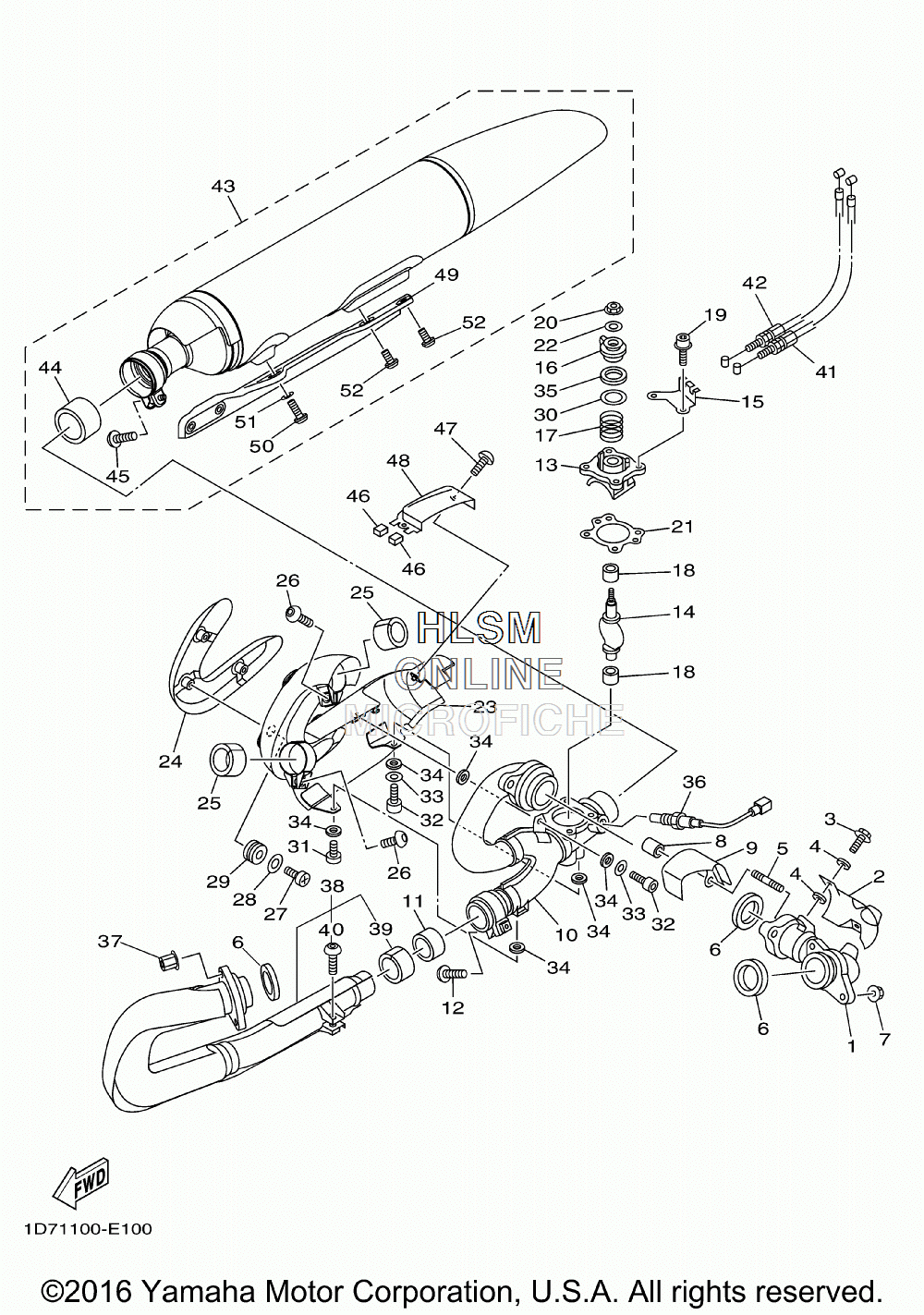

EXHAUST для Yamaha ROADLINER S (1D74/1D75) [XV19SW/C] - 2007 года выпуска
-
№АртикулНазвание
-
11D7-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
21D7-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
395880-06012-00 BOLT, FLANGEBOLT, FLANGE
-
490201-05015-00 WASHER, PLATEWASHER, PLATE
-
595617-08630-00 BOLT, STUDBOLT, STUD
-
63EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
790185-08097-00 NUT,SELF-LOCKINGNUT,SELF-LOCKING
-
890179-08442-00 NUTNUT
-
91D7-14624-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
101D7-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
115YU-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
1292014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
131D7-14811-00-00 HOUSINGHOUSING
-
141D7-14821-00-00 .ARM, SHAFT (VALVE).ARM, SHAFT (VALVE)
-
151D7-14849-00-00 .BRACKET.BRACKET
-
161D7-14865-00-00 PULLEYPULLEY
-
171D7-14856-00-00 .SPRING.SPRING
-
185VY-14638-00-00 .COLLAR.COLLAR
-
1990110-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090179-06M28-00 NUTNUT
-
211D7-14643-00-00 .GASKET 3.GASKET 3
-
2292990-06200-00 WASHER, PLAINWASHER, PLAIN
-
231D7-14718-01-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
241D7-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
251D7-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
2692014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2798904-06012-00 SCREW, BINDSCREW, BIND
-
2890201-06081-00 WASHER, PLATEWASHER, PLATE
-
2990480-17001-00 GROMMETGROMMET
-
305VY-14674-00-00 .VALVE, PLATE.VALVE, PLATE
-
3198904-06012-00 SCREW, BINDSCREW, BIND
-
3291314-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3392990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3490201-05015-00 WASHER, PLATEWASHER, PLATE
-
355VY-14648-00-00 .COLLAR 2.COLLAR 2
-
361D7-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
3790179-08410-00 NUTNUT
-
381D7-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
391D7-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
4092014-08020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
411D7-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
421D7-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
431D7-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
445YU-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
4592014-08035-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
463MA-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4792014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
481D7-14826-00-00 PROTECTOR, EXHAUSTPROTECTOR, EXHAUST
-
491D7-21440-00-00 ...MUFFLER STAY SUB-KUMI...MUFFLER STAY SUB-KUMI
-
5090111-080030-00 ...BOLT HEX SOCKET BUTTON...BOLT HEX SOCKET BUTTON
-
5190201-08048-00 ...WASHER, PLATE...WASHER, PLATE
-
5290111-080029-00 ...BOLT HEX SOCKET BUTTON...BOLT HEX SOCKET BUTTON
