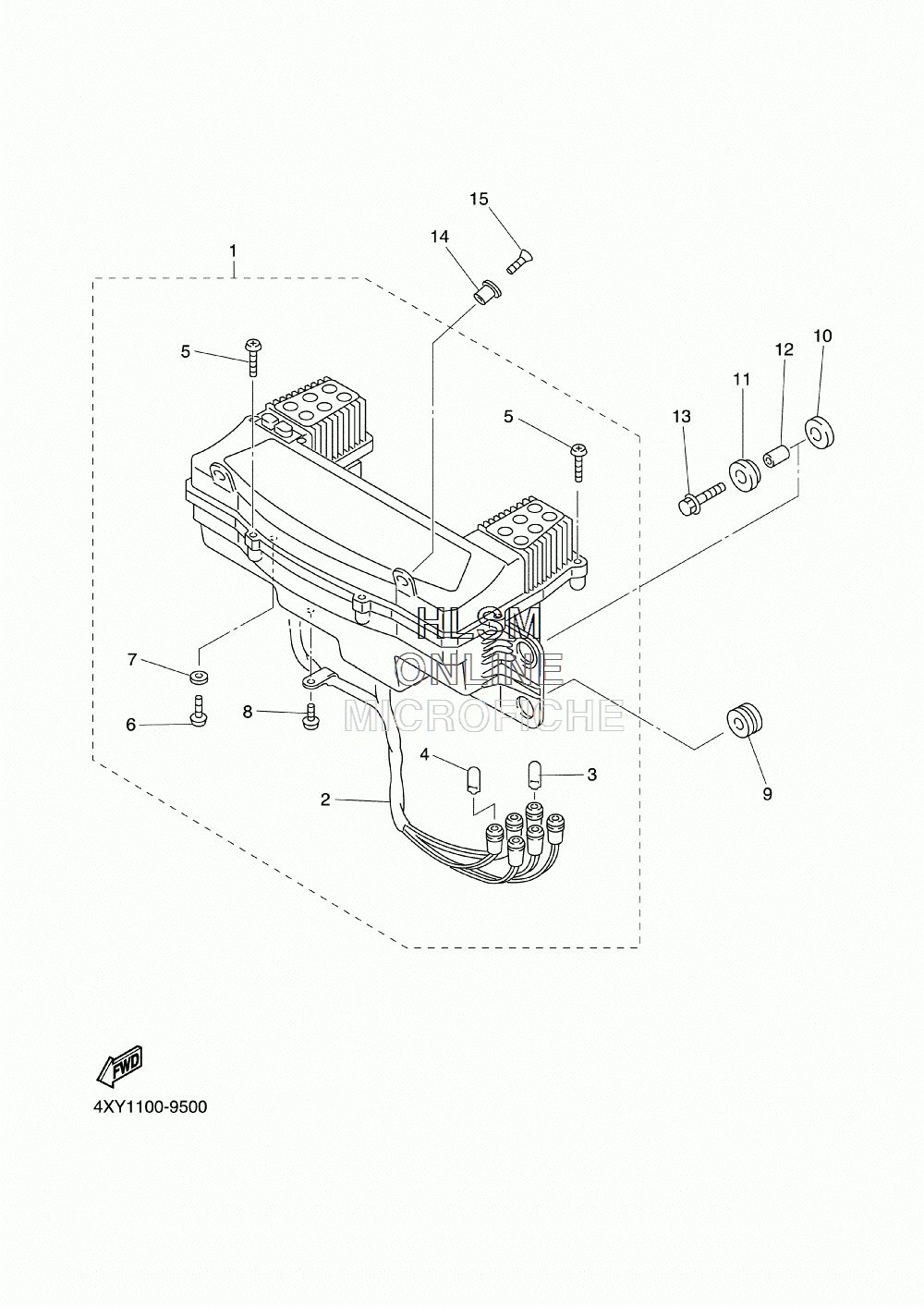

INSTRUMENT PANEL для Yamaha ROYAL STAR VENTURE (2C9A/2C9B) [XVZ13TFW/C] - 2007 года выпуска
-
№АртикулНазвание
-
14XY-83500-40-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
24XY-83509-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
342X-83517-00-00 ...BULB (12V-3W)...BULB (12V-3W)
-
42GV-83517-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
597707-30014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
698507-03010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
792907-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
890164-04023-00 ...SCREW, TAPPING...SCREW, TAPPING
-
990480-14102-00 GROMMETGROMMET
-
104XY-8338V-00-00 DAMPERDAMPER
-
114XY-83393-00-00 DAMPER 2DAMPER 2
-
1290387-064W3-00 COLLARCOLLAR
-
1395807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1490179-05523-00 NUTNUT
-
1598707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
