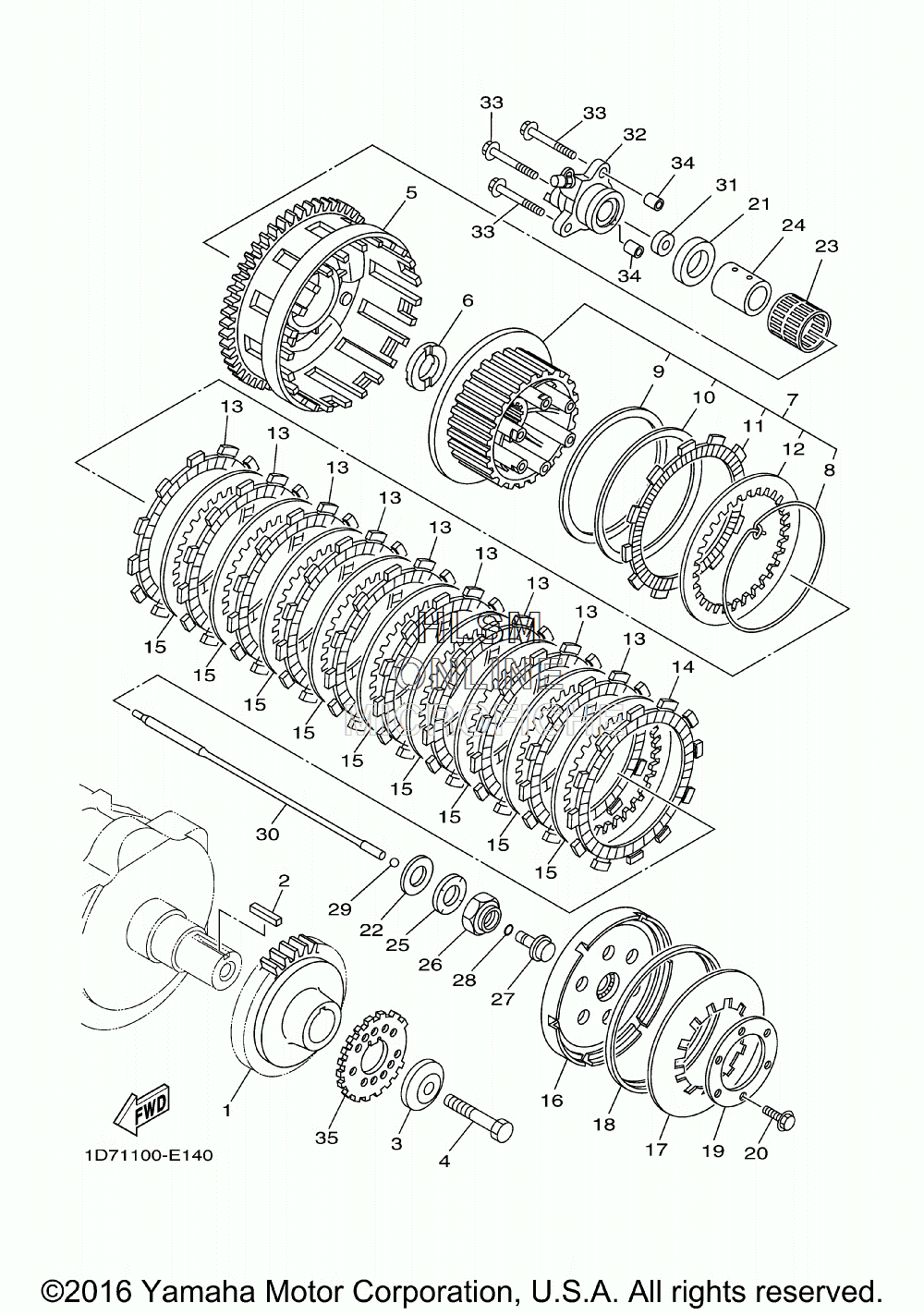

CLUTCH для Yamaha STRATOLINER MIDNIGHT (4P14/4P15) [XV19CTMW/C] - 2007 года выпуска
-
№АртикулНазвание
-
11D7-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
24WM-16193-00-00 KEY, FEATHERKEY, FEATHER
-
34WM-16181-00-00 SPACER 1SPACER 1
-
41D7-16777-00-00 BOLTBOLT
-
51D7-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
61D7-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
71D7-16370-00-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
82H7-16385-00-00 ...RING SET...RING SET
-
936Y-16384-00-00 ...PLATE, SEAT...PLATE, SEAT
-
1036Y-16383-00-00 ...SPRING.,CUSHION...SPRING.,CUSHION
-
114XV-16331-00-00 ...PLATE, FRICTION 2...PLATE, FRICTION 2
-
122H7-16325-00-00 ...PLATE, CLUTCH 2...PLATE, CLUTCH 2
-
135JW-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
14341-16321-13-00 PLATE, FRICTIONPLATE, FRICTION
-
152H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
161D7-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
175JW-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
1836Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
191TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
2095812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
211D7-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
2290201-22013-00 WASHER, PLATEWASHER, PLATE
-
2393310-33559-00 BEARINGBEARING
-
2490387-28006-00 COLLARCOLLAR
-
2590208-22003-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2690179-22010-00 NUTNUT
-
274KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2893210-06632-00 O-RINGO-RING
-
2993511-32017-00 BALLBALL
-
301D7-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
3193109-08061-00 OIL SEALOIL SEAL
-
321D7-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
3395814-06055-00 BOLT, FLANGEBOLT, FLANGE
-
3499530-08012-00 PIN, DOWELPIN, DOWEL
-
351D7-81673-01-00 ROTORROTOR
