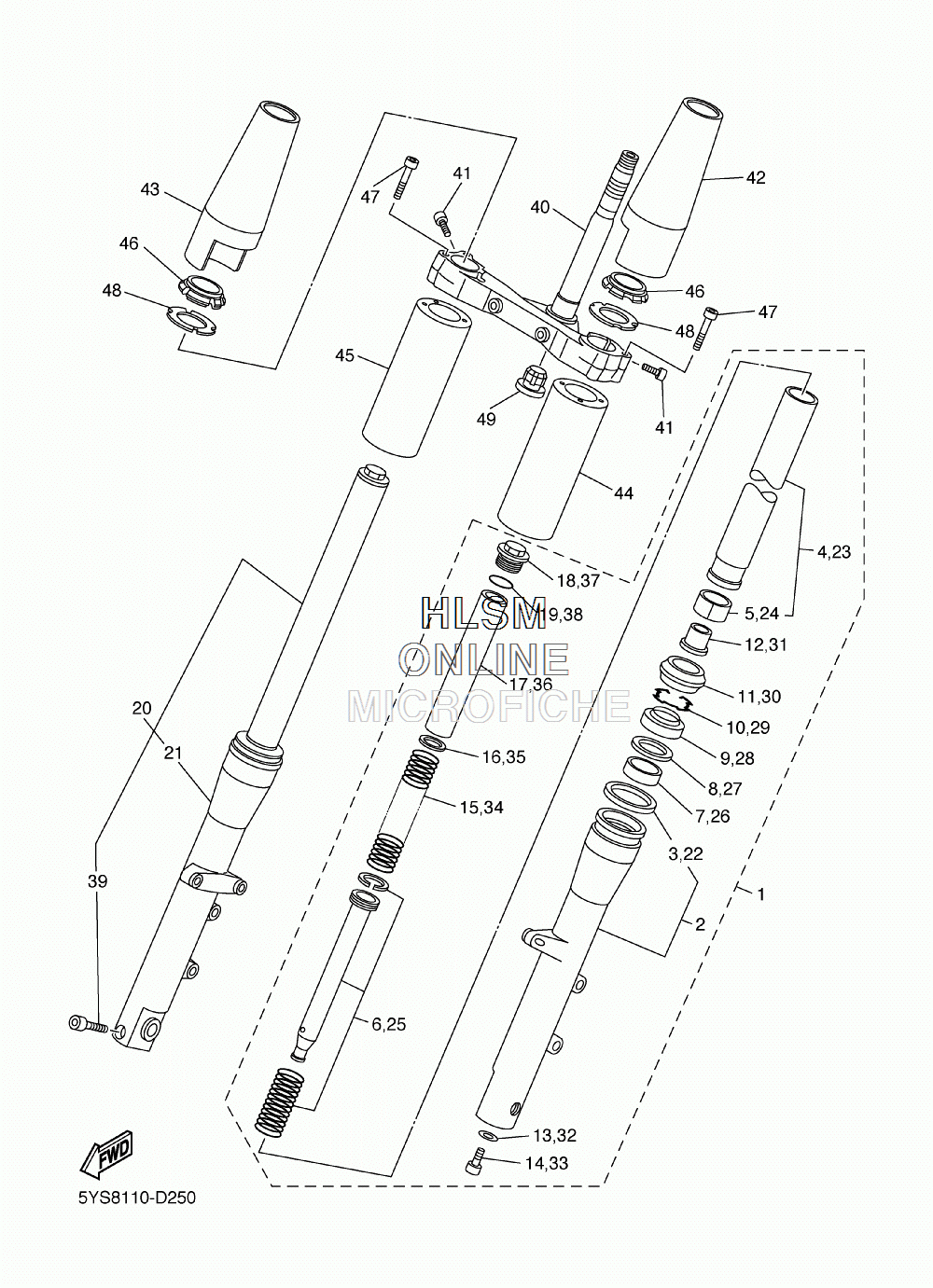

SUSPENSION - FRONT FORK для Yamaha V STAR 100 CLASSIC (5YST/5YSU) [XVS11AWW/C] - 2007 года выпуска
-
№АртикулНазвание
-
15KS-23102-20-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25KS-23126-10-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
35BN-23193-00-00 ......GUIDE, BOOT......GUIDE, BOOT
-
45KS-23110-10-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
55BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
65KS-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
74FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
836Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
94EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
1026H-23156-00-00 ...RING, SNAP...RING, SNAP
-
114EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
124YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
13509-23158-L0-00 ...GASKET...GASKET
-
14278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
155KS-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
164DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
175EL-23118-00-00 ...SPACER...SPACER
-
181D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1943F-23188-10-00 ...O-RING...O-RING
-
205KS-23103-20-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
215KS-23136-10-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
225BN-23193-00-00 ......GUIDE, BOOT......GUIDE, BOOT
-
235KS-23110-10-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
245BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
255KS-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
264FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
284EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2926H-23156-00-00 ...RING, SNAP...RING, SNAP
-
304EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
314YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
32509-23158-L0-00 ...GASKET...GASKET
-
33278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
345KS-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
354DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
365EL-23118-00-00 ...SPACER...SPACER
-
371D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3843F-23188-10-00 ...O-RING...O-RING
-
3991314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
405KS-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4191314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
425KS-23121-20-00 COVER, UPPER 1COVER, UPPER 1
-
435KS-23131-20-00 COVER, UPPER 2COVER, UPPER 2
-
445KS-23123-20-00 COVER, UNDER 1COVER, UNDER 1
-
455KS-23133-20-00 COVER, LOWER 2COVER, LOWER 2
-
465BN-23163-00-00 GASKETGASKET
-
475BN-23394-01-00 BOLT, SPECIALBOLT, SPECIAL
-
485KS-23165-10-00 WASHER, FELTWASHER, FELT
-
494KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
