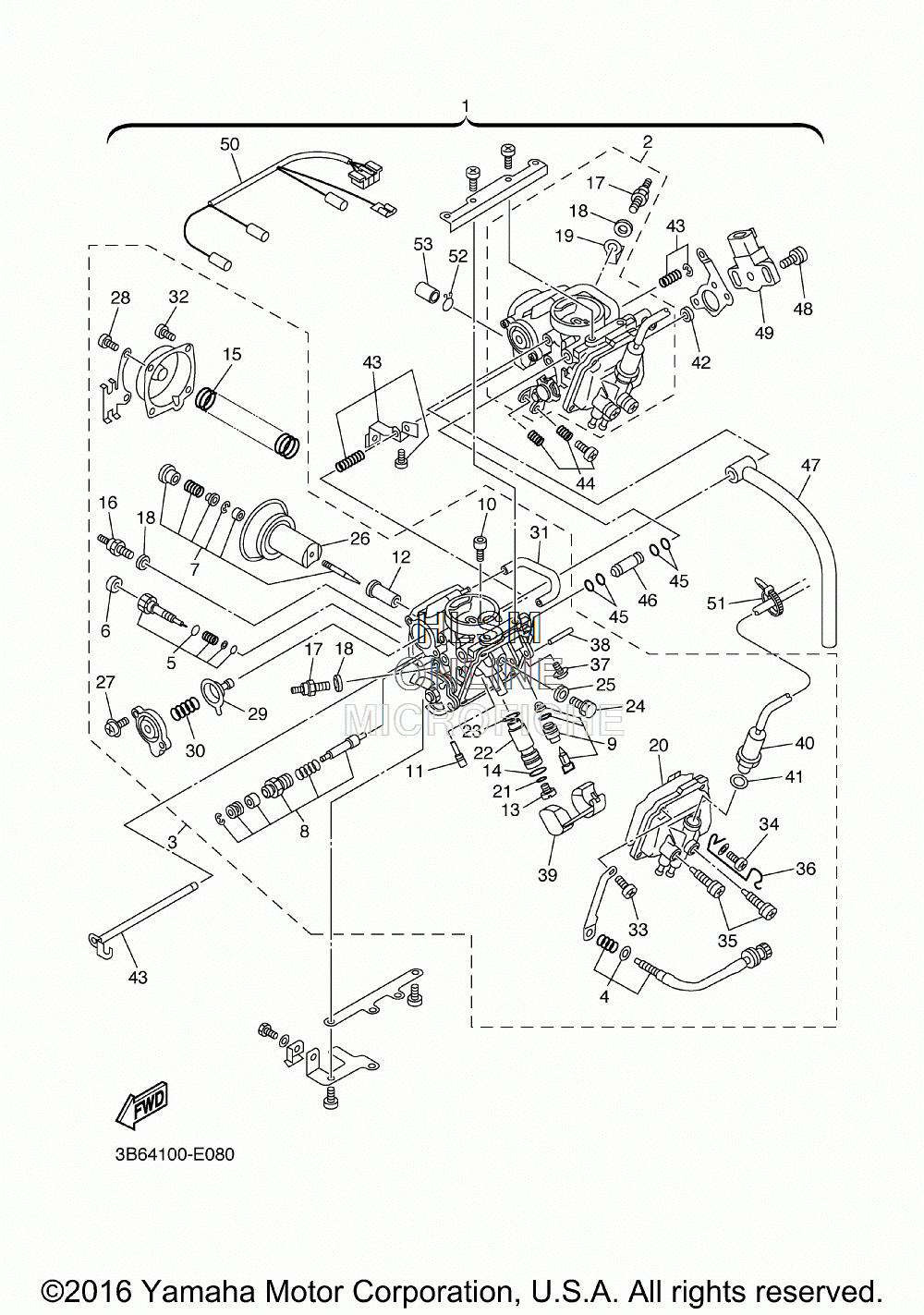

CARBURETOR для Yamaha V STAR 650 CLASSIC [ XVS65AW/C] (4C59/4C5A) - 2007 года выпуска

№

Артикул

Название
1

5SC-14900-20-00 CARBURETOR ASSY (CALIF ONLY) (4C5A)

CARBURETOR ASSY (CALIF ONLY) (4C5A)

0 ₽
1

5SC-14906-20-00 CARBURETOR ASSY (EXCEPT CALIF) (4C59)

CARBURETOR ASSY (EXCEPT CALIF) (4C59)

0 ₽
2

5SC-14901-20-00 ...CARBURETOR ASSY 1 (#1) REAR

...CARBURETOR ASSY 1 (#1) REAR

0 ₽
3

5SC-14902-20-00 ...CARBURETOR ASSY 2 (#2) FRONT

...CARBURETOR ASSY 2 (#2) FRONT

0 ₽
4

4TR-14103-00-00 ......THROTTLE SCREW SET (#2) FRONT

......THROTTLE SCREW SET (#2) FRONT

6 450 ₽
5

4TR-14105-00-00 ......PILOT SCREW SET

......PILOT SCREW SET

3 300 ₽
6

3F9-14118-00-00 ......CAP

......CAP

530 ₽
7

5BN-1490J-00-00 ......NEEDLE SET

......NEEDLE SET

0 ₽
8

4DN-1410A-01-00 ......STARTER SET

......STARTER SET

5 030 ₽
9

3CF-14107-10-00 ......NEEDLE VALVE SET

......NEEDLE VALVE SET

4 400 ₽
10

1HX-14231-20-00 ......JET,PILOT AIR (#100)

......JET,PILOT AIR (#100)

1 260 ₽
11

4KM-14142-20-00 ......JET, PILOT (#20)

......JET, PILOT (#20)

1 130 ₽
12

3DM-1414M-34-00 ......NOZZLE, MAIN

......NOZZLE, MAIN

3 770 ₽
13

3G2-1414E-36-00 ......JET, MAIN (#91.3)

......JET, MAIN (#91.3)

970 ₽
14

8F2-14147-00-00 ......O-RING

......O-RING

370 ₽
15

4VR-14933-00-00 ......SPRING, DIAPHRAGM

......SPRING, DIAPHRAGM

1 000 ₽
16

5FU-83790-00-00 ......HEATER ASSY (15W)

......HEATER ASSY (15W)

3 770 ₽
17

5FU-83790-10-00 ......HEATER ASSY (20W)

......HEATER ASSY (20W)

4 400 ₽
18

90201-08016-00 ......WASHER, PLATE (OPT) (#2) FRONT

......WASHER, PLATE (OPT) (#2) FRONT

430 ₽
18

90201-08016-00 ......WASHER, PLATE (OPT) (#1) REAR

......WASHER, PLATE (OPT) (#1) REAR

430 ₽
19

4DH-82103-00-00 ......TERMINAL 1 (#1) REAR

......TERMINAL 1 (#1) REAR

970 ₽
20

1HX-14147-00-00 ......O-RING

......O-RING

1 730 ₽
21

1AE-14227-00-00 ......O-RING

......O-RING

440 ₽
22

5SC-14261-00-00 ......HOLDER

......HOLDER

3 300 ₽
23

1AE-14237-00-00 ......GASKET

......GASKET

280 ₽
24

1HX-14565-00-00 ......SCREW

......SCREW

1 190 ₽
25

137-14153-00-00 ......WASHER,MAIN JET

......WASHER,MAIN JET

310 ₽
26

4TR-14940-00-00 ......DIAPHRAGM ASSY

......DIAPHRAGM ASSY

16 220 ₽
27

1UY-14565-00-00 ......SCREW

......SCREW

180 ₽
28

3KW-14486-00-00 ......SCREW, ROD (#2) FRONT

......SCREW, ROD (#2) FRONT

280 ₽
29

22V-14940-00-00 ......DIAPHRAGM ASSY

......DIAPHRAGM ASSY

2 670 ₽
30

5SC-14275-00-00 ......SPRING

......SPRING

400 ₽
31

4TR-14348-00-00 ......PIPE 1

......PIPE 1

3 300 ₽
32

98507-04008-00 ......SCREW, PAN HEAD (OPT) (#2) FRONT

......SCREW, PAN HEAD (OPT) (#2) FRONT

160 ₽
32

98507-04008-00 ......SCREW, PAN HEAD (OPT) (#1) REAR

......SCREW, PAN HEAD (OPT) (#1) REAR

160 ₽
33

98502-04014-00 ............SCREW, PAN HEAD (OPT) (#2) FRONT

............SCREW, PAN HEAD (OPT) (#2) FRONT

370 ₽
33

98502-04014-00 ............SCREW, PAN HEAD (OPT) (#1) REAR

............SCREW, PAN HEAD (OPT) (#1) REAR

370 ₽
34

4VR-24453-00-00 ......SCREW (#2) (FRONT)

......SCREW (#2) (FRONT)

320 ₽
35

5LW-14191-00-00 ......PLUG, DRAIN

......PLUG, DRAIN

780 ₽
36

4TR-14937-00-00 ......CLIP (#2) (FRONT)

......CLIP (#2) (FRONT)

1 730 ₽
37

1FN-14565-00-00 ......SCREW

......SCREW

340 ₽
38

353-14186-00-00 ......PIN, FLOAT

......PIN, FLOAT

340 ₽
39

1HX-14985-00-00 ......FLOAT

......FLOAT

5 030 ₽
40

5SC-1410H-00-00 ......FUEL CUT SOLENOID VALVE (OPT) (#2) FRONT

......FUEL CUT SOLENOID VALVE (OPT) (#2) FRONT

25 190 ₽
40

5SC-1410H-10-00 ......FUEL CUT SOLENOID VALVE (OPT) (#1) REAR

......FUEL CUT SOLENOID VALVE (OPT) (#1) REAR

25 190 ₽
41

256-14956-01-00 ......WASHER

......WASHER

310 ₽
42

4HM-14239-00-00 ...SEAL

...SEAL

1 040 ₽
43

4TR-1490L-00-00 ...STARTER LEVER SET, 1

...STARTER LEVER SET, 1

6 920 ₽
44

3KW-1490K-00-00 ...STOP SCREW SET

...STOP SCREW SET

1 440 ₽
45

36Y-14147-00-00 ...O-RING

...O-RING

720 ₽
46

1WG-14251-00-00 ...NIPPLE

...NIPPLE

1 730 ₽
47

4TR-14987-00-00 ...HOSE

...HOSE

4 250 ₽
48

4KM-24453-00-00 ...SCREW

...SCREW

480 ₽
49

4NK-85885-00-00 ...THROTTLE POSITION SENSOR ASS

...THROTTLE POSITION SENSOR ASS

25 190 ₽
50

5SC-81517-00-00 ...WIRE, SUB LEAD

...WIRE, SUB LEAD

0 ₽
51

35H-14139-00-00 ...CLIP, PIPE

...CLIP, PIPE

690 ₽
52

55X-14937-00-00 ...CLIP

...CLIP

340 ₽
53

5GK-1491A-00-00 ...CAP

...CAP

730 ₽
