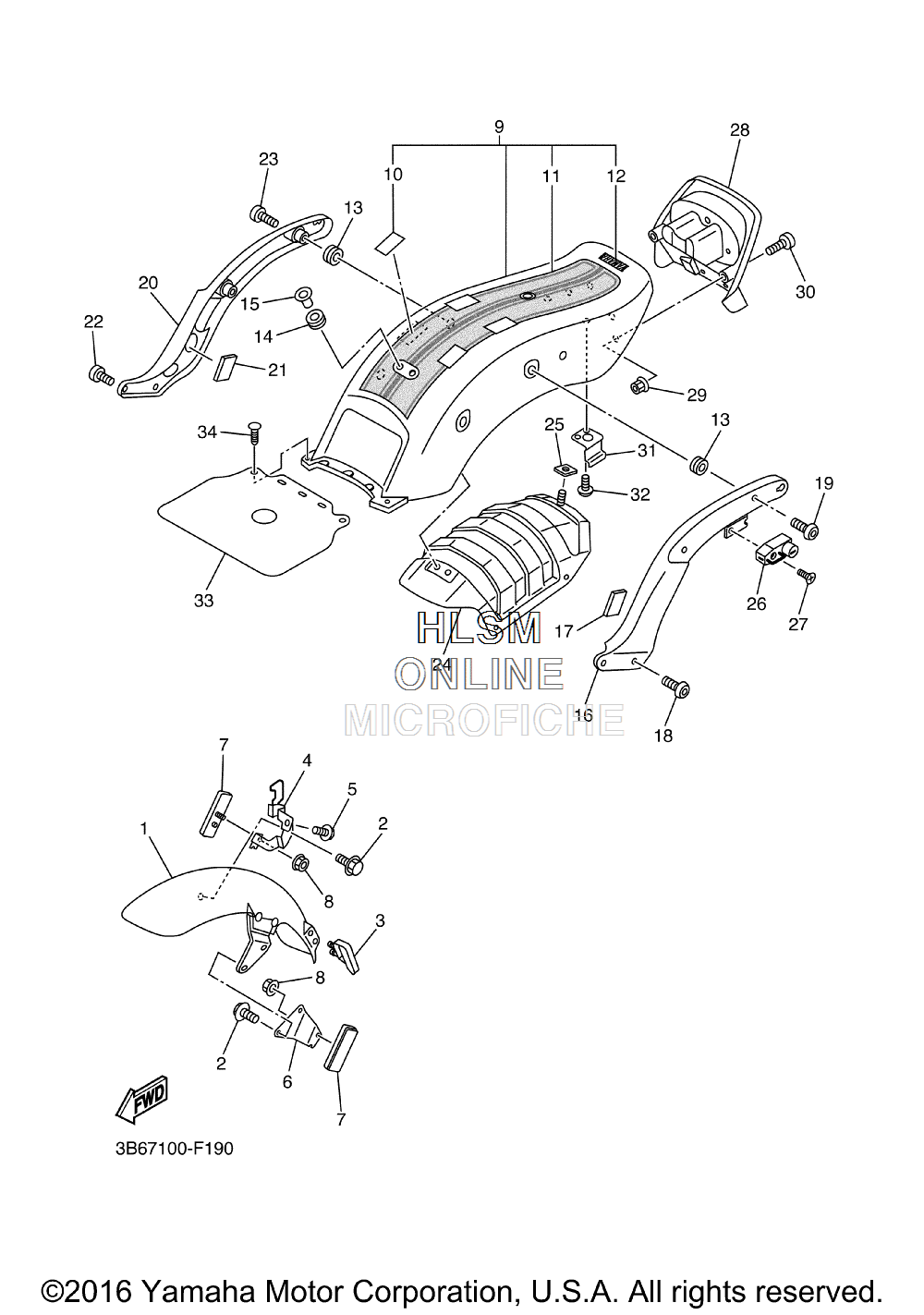

FENDER - FRONT / REAR для Yamaha V STAR 650 CUSTOM [ XVS65W/C] (3B67/3B68) - 2007 года выпуска
-
№АртикулНазвание
-
14TR-21510-02-PG FRONT FENDER COMP. (DRMK)FRONT FENDER COMP. (DRMK)
-
295027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
34VR-21518-00-00 HOLDER, CABLEHOLDER, CABLE
-
45FB-21598-01-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
65FB-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
94TR-Y2161-A2-PH REAR FENDER COMP. (DRMK)REAR FENDER COMP. (DRMK)
-
103SP-21732-00-00 ...SEAL 1...SEAL 1
-
113B6-21675-10-00 ...GRAPHIC, REAR FENDER...GRAPHIC, REAR FENDER
-
121D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
1390480-18418-00 GROMMETGROMMET
-
1490480-13398-00 GROMMETGROMMET
-
1590387-067N5-00 COLLARCOLLAR
-
164TR-21613-01-00 STAY, FENDER 1STAY, FENDER 1
-
173SX-2139X-00-00 DAMPERDAMPER
-
1890157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
204TR-21614-01-00 STAY, FENDER 2STAY, FENDER 2
-
213SX-2139X-00-00 DAMPERDAMPER
-
2290157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
244TR-21643-01-00 STAY, REARSTAY, REAR
-
255FB-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
264R8-21308-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
2790149-06154-00 SCREWSCREW
-
285FB-2162R-00-00 FENDER 2FENDER 2
-
2990179-05523-00 NUTNUT
-
3090154-05011-00 SCREW, BINDINGSCREW, BINDING
-
314TR-21679-00-00 HOLDER, HARNESSHOLDER, HARNESS
-
3290167-05025-00 SCREW, TAPPINGSCREW, TAPPING
-
334TR-21629-00-00 GUARD, MUDGUARD, MUD
-
3490269-05039-00 RIVETRIVET
